Network Switches & Routers

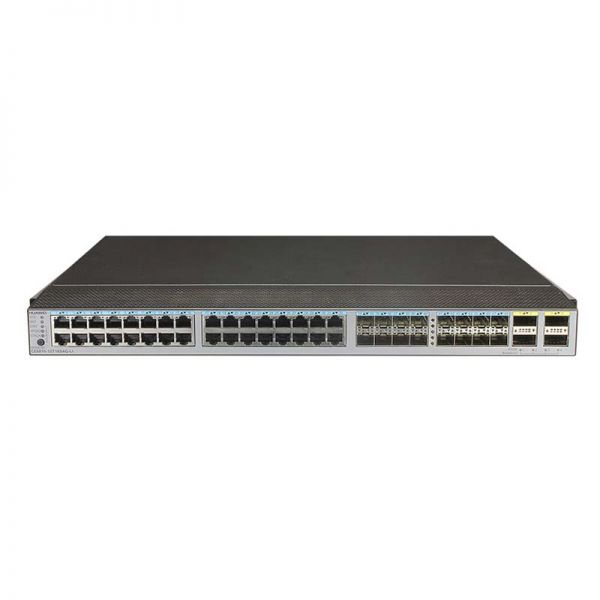

Huawei CE6810-32T16S4Q-LI Switch(32-Port 10G RJ45,16-Port 10G SFP+,4-Port 40G QSFP+,2*AC Power Module,2*FAN Box,Port-side Exhaust)
| Model: | Huawei CE6810-32T16S4Q-LI Switch(32-Port 10G RJ45,16-Port 10G SFP+,4-Port 40G QSFP+,2*AC Power Module,2*FAN Box,Port-side Exhaust) |
| Detail: |
Huawei CE6810-32T16S4Q-LI Switch(32-Port 10G RJ45,16-Port 10G SFP+,4-Port 40G QSFP+,2*AC Power Module,2*FAN
|
AED25,399.00
CE6810-LI-F-B00 is Huawei CE6810-32T16S4Q-LI Switch(32-Port 10G RJ45,16-Port 10G SFP+,4-Port 40G QSFP+,2*AC Power Module,2*FAN Box,Port-side Exhaust). Support for Fiber Channel over Ethernet (FCoE) allows a single network to carry storage, data, and computing services, reducing network construction and maintenance costs the industry.
Quick Specs
Table 1 shows the Quick Specs.
| Product Code | CE6810-LI-F-B00 |
| Part Number | 02350EWD |
| Software Version | V100R005C10 and later |
| Fixed GE interfaces | None |
| Fixed 10GE interfaces | 32*10GBASE-T
16*10GE SFP+ |
| Fixed 40GE interfaces | 4*40GE QSFP+
A 40GE interface can be split into four 10GE interfaces |
| Fixed 100GE interfaces | None |
| Switching Capacity | 1.28 Tbit/s |
| Forwarding Rate | 960 Mpps |
| Rated voltage range(with power module) | 100 V AC to 240 V AC, 50/60 Hz
-48 V DC to -60 V DC |
| Maximum power consumption | 288W |
| Airflow Design | Front-to-back or back-to-front |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
| Weight (fully loaded) | 8.5 kg (18.7 lb) |
Note:
| ā | Thirty-two 10GBASE-T Ethernet electrical ports |
| ā” | Sixteen 10GE SFP+ Ethernet optical ports |
| ā¢ | Four 40GE QSFP+ Ethernet optical ports |
Note:
| ā | Power supply slot 1 |
| ā” | Fan slot 1 |
| ā¢ | Console port |
| ā£ | Bar code label |
| ā¤ | Fan slot 2 |
| ā„ | Power supply slot 2 |
| ā¦ | USB port |
| ā§ | ETH management port |
CE6810-LI-F-B00 Specification |
|
| 10G Base-T Ports | 32 |
| SFP+ Ports | 16 |
| QSFP+ Ports | 4 |
| Switching Capacity | 1.28 Tbit/s |
| Forwarding Rate | 960 Mpps |
| Airflow Design | Front-to-back or back-to-front |
| Device Virtualization | iStack |
| Super Virtual Fabric (SVF) | |
| Network Virtualization | M-LAG |
| VM Awareness | Agile Controller |
| Network Convergence | FCoE |
| DCBX, PFC, and ETS | |
| Programmability | OpenFlow |
| OPS | |
| Linux container for open source and customization programming | |
| Traffic Analysis | NetStream |
| sFlow | |
| VLAN | Adding access, trunk, and hybrid interfaces to VLANs |
| Default VLAN | |
| QinQ | |
| MUX VLAN | |
| GVRP | |
| ACL | Ingress: 1,250 Egress: 500 |
| MAC Address Table | Maximum: 128k |
| Dynamic learning and aging of MAC addresses | |
| Static, dynamic, and blackhole MAC address entries | |
| Packet filtering based on source MAC addresses | |
| MAC address limiting based on ports and VLANs | |
| ARP (maximum) | 1.5k |
| IPv4 FIB (maximum) | 1.5k |
| IP Routing | IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS |
| IPv6 FIB (maximum) | / |
| Multicast FIB (maximum) | / |
| Multicast | IGMP snooping |
| Reliability | LACP |
| STP, RSTP, VBST, MSTP | |
| BPDU protection, root protection, and loop protection | |
| Smart Link and multi-instance | |
| DLDP | |
| ERPS (G.8032) | |
| VRRP, VRRP load balancing, and BFD for VRRP | |
| QoS | Traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority |
| Actions of ACL, CAR, re-marking, and scheduling | |
| Queue scheduling algorithms, including PQ, WRR, DRR, PQ + WRR, and PQ + DRR | |
| Congestion avoidance mechanisms, including WRED and tail drop | |
| Traffic shaping | |
| Configuration and Maintenance | Console, Telnet, and SSH terminals |
| Network management protocols, such as SNMPv1/v2c/v3 | |
| File upload and download through FTP and TFTP | |
| BootROM upgrade and remote upgrade | |
| 802.3az Energy Efficient Ethernet (EEE) | |
| Hot patches | |
| User operation logs | |
| ZTP | |
| Security and Management | 802.1x authentication |
| Command line authority control based on user levels, preventing unauthorized users from using commands | |
| DoS, ARP, and ICMP attack defenses | |
| Port isolation, port security, and sticky MAC | |
| Binding of the IP address, MAC address, interface number, and VLAN ID | |
| Authentication methods, including AAA, RADIUS, and HWTACACS | |
| Remote Network Monitoring (RMON) | |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
| Weight (fully loaded) | 8.5 kg (18.7 lb) |
| Environmental Parameters | Operating temperature: 0Ā°C to 40Ā°C (32Ā°F to 104Ā°F) (0m to 1,800m) Storage temperature: -40Ā°C to 70Ā°C (-40Ā°F to 158Ā°F) Relative humidity: 5% RH to 95% RH, non-condensing |
| Operating Voltage | AC: 90V to 290V DC: -38.4V to -72V |
| Max. Power Consumption | 288W |
