Network Switches & Routers

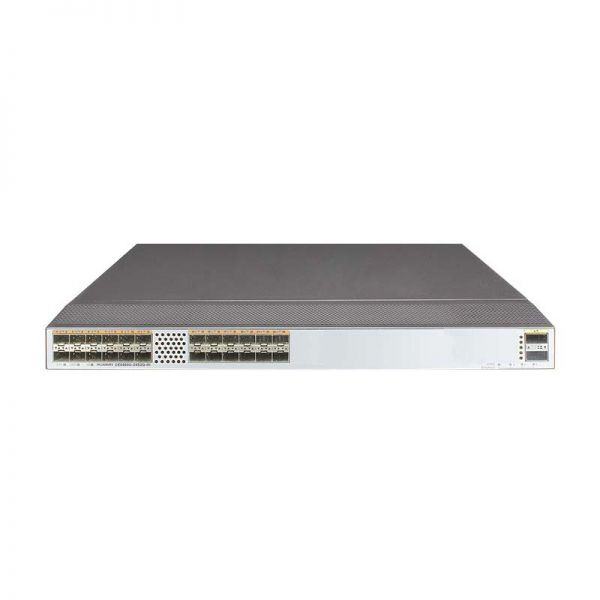

Huawei CE6850U-24S2Q-HI Switch(24-Port 10GE SFP+,support 2/4/8G FC,2-Port 40GE QSFP+,2*AC Power Module,2*FAN Box,Port-side Exhaust)
| Model: | Huawei CE6850U-24S2Q-HI Switch(24-Port 10GE SFP+,support 2/4/8G FC,2-Port 40GE QSFP+,2*AC Power Module,2*FAN Box,Port-side Exhaust) |
| Detail: |
Huawei CE6850U-24S2Q-HI Switch(24-Port 10GE SFP+,support 2/4/8G FC,2-Port 40GE QSFP+,2*AC Power Module,2*FAN
|
AED36,499.00
CE6850U-HI-F-B0B is Huawei CE6850U-24S2Q-HI Switch (24-Port 10GE SFP+, support 2/4/8G FC, 2-Port 40GE QSFP+, 2*AC Power Module, 2*FAN Box, Port-side Exhaust). Support for Fiber Channel over Ethernet (FCoE) allows a single network to carry storage, data, and computing services, reducing network construction and maintenance costs the industry.
Quick Specs
Table 1 shows the Quick Specs.
| Product Code | CE6850U-HI-F-B0B |
| Part Number | 02350GTP |
| 10G Base-T Ports | 0 |
| SFP+ Ports | 24 |
| FC Ports | 24 |
| QSFP+ Ports | 2 |
| Switching Capacity | 640 Gbit/s |
| Forwarding Rate | 480 Mpps |
| Airflow Design | Front-to-back or back-to-front |
| Maximum power consumption | 282 W |
| Typical power consumption | 183 W |
| Dimensions (W x D x H) | 442 mm x 600 mm x 43.6 mm |
| Weight (fully loaded) | 12.3 kg (27.1 lb) |
Note:
| ā | Twenty-four 10GE SFP+ Ethernet optical ports |
| ā” | Two 40GE QSFP+ Ethernet optical ports |
Note:
| ā | Ground screw |
| ā” | Two ETH management ports (combo) |
| ā¢ | Console port |
| ā£ | Mini USB port |
| ā¤ | Fan slot 1 |
| ā„ | Fan slot 2 |
| ā¦ | Power supply slot 1 |
| ā§ | Power supply slot 2 |
| āØ | Barcode label |
| ā© | USB port |
CE6850U-HI-F-B0B Specifications |
|
| 10G Base-T Ports | 0 |
| SFP+ Ports | 24 |
| FC Ports | 24 |
| QSFP+ Ports | 2 |
| Switching Capacity | 640 Gbit/s |
| Forwarding Rate | 480 Mpps |
| Airflow Design | Front-to-back or back-to-front |
| Device Virtualization | iStack |
| Super Virtual Fabric (SVF) | |
| Network Virtualization | M-LAG |
| TRILL | |
| VM Awareness | Agile Controller |
| Network Convergence | FCoE |
| DCBX, PFC, and ETS | |
| Programmability | OpenFlow |
| OPS | |
| Puppet, and OVSDB plugins released on open source websites | |
| Linux container for open source and customization programming | |
| Traffic Analysis | NetStream |
| sFlow | |
| VLAN | Adding access, trunk, and hybrid interfaces to VLANs |
| Default VLAN | |
| QinQ | |
| MUX VLAN | |
| GVRP | |
| ACL | Ingress: 3,750 Egress: 1,000 |
| MAC Address Table | Maximum: 288k |
| Dynamic learning and aging of MAC addresses | |
| Static, dynamic, and blackhole MAC address entries | |
| Packet filtering based on source MAC addresses | |
| MAC address limiting based on ports and VLANs | |
| ARP (maximum) | 128k |
| IPv4 FIB (maximum) | 256k |
| IP Routing | IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS |
| IPv6 routing protocols, such as RIPng, OSPFv3, IS-ISv6, and BGP4+ | |
| IPv6 FIB (maximum) | 128k |
| IPv6 | IPv6 Neighbor Discovery (ND) |
| Path MTU Discovery (PMTU) | |
| TCP6, ping IPv6, tracert IPv6, socket IPv6, UDP6, and Raw IP6 | |
| Multicast FIB (maximum) | 8k |
| Multicast | IGMP, PIM-SM, PIM-DM, MSDP, and MBGP |
| IGMP snooping | |
| IGMP proxy | |
| Fast leave of multicast member interfaces | |
| Multicast traffic suppression | |
| Multicast VLAN | |
| MPLS | MPLS (CE6800HI) |
| Reliability | LACP |
| STP, RSTP, VBST, and MSTP | |
| BPDU protection, root protection, and loop protection | |
| Smart Link and multi-instance | |
| DLDP | |
| ERPS (G.8032) | |
| VRRP, VRRP load balancing, and BFD for VRRP | |
| BFD for BGP/IS-IS/OSPF/Static route | |
| QoS | Traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority |
| Actions of ACL, CAR, re-marking, and scheduling | |
| Queue scheduling algorithms, including PQ, WRR, DRR, PQ + WRR, and PQ + DRR | |
| Congestion avoidance mechanisms, including WRED and tail drop | |
| Traffic shaping | |
| Configuration and Maintenance | Console, Telnet, and SSH terminals |
| Network management protocols, such as SNMPv1/v2c/v3 | |
| File upload and download through FTP and TFTP | |
| BootROM upgrade and remote upgrade | |
| 802.3az Energy Efficient Ethernet (EEE) | |
| Hot patches | |
| User operation logs | |
| ZTP | |
| Security and Management | 802.1x authentication |
| Command line authority control based on user levels, preventing unauthorized users from using commands | |
| DoS, ARP, and ICMP attack defenses | |
| Port isolation, port security, and sticky MAC | |
| Binding of the IP address, MAC address, interface number, and VLAN ID | |
| Authentication methods, including AAA, RADIUS, and HWTACACS | |
| Remote Network Monitoring (RMON) | |
| Dimensions (W x D x H) | 442 mm x 600 mm x 43.6 mm |
| Weight (fully loaded) | 12.3 kg (27.1 lb) |
| Environmental Parameters | Operating temperature: 0Ā°C to 40Ā°C (32Ā°F to 104Ā°F) (0m to 1,800m) Storage temperature: -40Ā°C to 70Ā°C (-40Ā°F to 158Ā°F) Relative humidity: 5% RH to 95% RH, non-condensing |
| Operating Voltage | AC: 90V to 290V DC: 240V & 380V |
| Max. Power Consumption | 282W |
