Network Switches & Routers

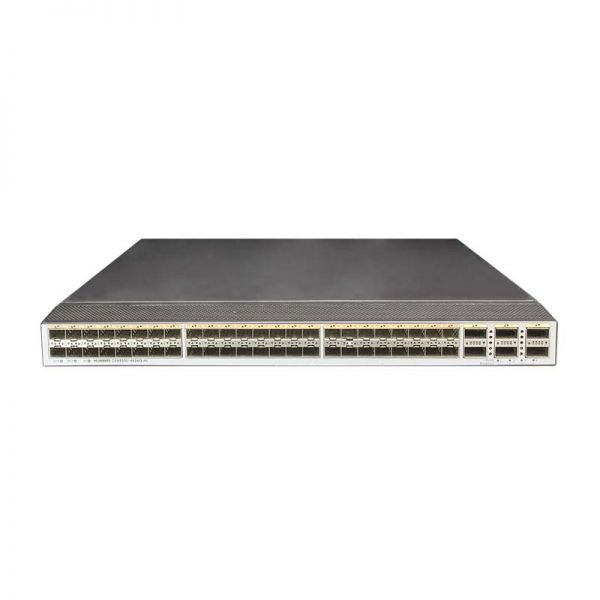

Huawei CE6850U-48S6Q-HI Switch(48-Port 10GE SFP+,support 2/4/8G FC,6-Port 40GE QSFP+,2*AC Power Module,2*FAN Box,Port-side Intake)
| Model: | Huawei CE6850U-48S6Q-HI Switch(48-Port 10GE SFP+,support 2/4/8G FC,6-Port 40GE QSFP+,2*AC Power Module,2*FAN Box,Port-side Intake) |
| Detail: |
Huawei CE6850U-48S6Q-HI Switch(48-Port 10GE SFP+,support 2/4/8G FC,6-Port 40GE QSFP+,2*AC Power Module,2*FAN
|
AED51,899.00
CE6850U-48S6Q-HI-F is Huawei CE6850U-48S6Q-HI Switch(48-Port 10GE SFP+,support 2/4/8G FC,6-Port 40GE QSFP+,2*FAN Box,Port-side Exhaust,Without Power Module). Support for Fiber Channel over Ethernet (FCoE) allows a single network to carry storage, data, and computing services, reducing network construction and maintenance costs the industry.
Quick Specs
Table 1 shows the Quick Specs.
| Product Code | CE6850U-48S6Q-HI-F |
| Part Number | 02350EHF |
| 10G Base-T Ports | 0 |
| SFP+ Ports | 48 |
| FC Ports | 48 |
| QSFP+ Ports | 6 |
| Switching Capacity | 1.44 Tbit/s |
| Forwarding Rate | 1,080 Mpps |
| Airflow Design | Front-to-back or back-to-front |
| Maximum power consumption | 339 W |
| Typical power consumption | 235W |
| Dimensions (W x D x H) | 442 mm x 600 mm x 43.6 mm |
| Weight (fully loaded) | 12.6 kg (27.8 lb) |
Note:
| ā | Forty-eight 10GE SFP+ Ethernet optical ports |
| ā” | Six 40GE QSFP+ Ethernet optical ports |
Note:
| ā | Ground screw |
| ā” | Two ETH management ports (combo) |
| ā¢ | Console port |
| ā£ | Mini USB port |
| ā¤ | Fan slot 1 |
| ā„ | Fan slot 2 |
| ā¦ | Power supply slot 1 |
| ā§ | Power supply slot 2 |
| āØ | Barcode label |
| ā© | USB port |
There are no reviews yet.
