Huawei S5700 Series Switch
S5720-36PC-EI-ACĀ Overview
Huawei S5720-36PC-EI-AC supports twenty-eight Ethernet 10/100/1000 ports, 4 of which are dual-purpose 10/100/1000 or SFP. It also offers four Gig SFP ports and one interface slot. The interface slot supports optional cards.
Quick Specs

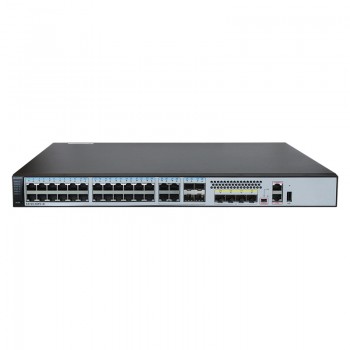

Figure 1 shows the appearance of Huawei S5720-36PC-EI-AC switch.
Table 1 shows the Quick Specs.
| Product Code | S5720-36PC-EI-AC |
| Downlink Ports | 28 Ć Ethernet 10/100/1000 ports
4 of which are dual-purpose 10/100/1000 or SFP |
| Uplink Interfaces | 4 Ć Gig SFP |
| Forwarding Performance | 78 Mpps |
| Switching Capacity | 598 Gbit/s |
| Stack | Supported |
| Stack Ports | – Ports on the 2-port 10GE SFP+ rear interface card
– Ports on the 2-port 10GE RJ45 rear interface card – Ports on the 2-port QSFP+ rear stack card |
| Memory (RAM) | 2 GB |
| Flash | 340 MB |
| Dimensions (W x D x H) | 44.2 cm x 42 cm x 4.44 cm |
| Weight (Kg) | 9.76 Kg |
Product Details
Figure 2 shows the front panel of Huawei S5720-36PC-EI-AC switch.
Note:
| ā | 24 Ć 10/100/1000BASE-T ports | ā¤ | One mini USB port |
| ā” | 4 Ć combo ports (10/100/1000BASE-T + 100/1000BASE-X) | ā„ | ETH management port |
| ā¢ | One console port | ā¦ | One USB port |
