Huawei S5720-56C-PWR-EI-AC switch with 48-ports 1000BASE-T POE+, 4-ports 10GE SFP+, 2 power slots, 1 AC power module equipped, 1 extension slot S5720-56C-PWR-EI-AC

Availability:

10 in stock
Add to Wishlist

AED10,799.00

10 in stock

Add to Wishlist

Huawei Series Switch

Huawei S5720-56C-PWR-EI-AC switch with 48-ports 1000BASE-T POE+, 4-ports 10GE SFP+

With 2 power slots, 1 AC power module included

With 1 extension slot

Forwarding perfomance: 162 Mpps

Switching capacity: 598Gbps

64K MAC address entries

POE switch

Huawei Quidway S5720-EI series enhanced gigabit Ethernet switches (S5720-EI for short) are next-generation switches that provide flexible GE access ports and 10GE uplink ports. S5720-EI provides large table sizes and higher hardware processing capabilities than similar switches. It supports IPv6, intelligent stack (iStack), flexible Ethernet networking. S5720-EI is widely for aggregation/access in enterprise campus networks or gigabit access in data center networks.

S5720-56C-PWR-EI-ACĀ Overview

Huawei S5720-56C-PWR-EI-ACĀ Gigabit Switch provides resilient, energy-efficient GE ports for access switching in data centers, and aggregation switching in enterprise campus networks. With 48 x 10/100/1,000 Base-T Ethernet ports, 4 x 10G SFP+ portsĀ and PoE+Ā function,Ā its performance enhancements include advanced processing hardware, 10 Gbit/s uplink ports, and large MAC address and routing tables; Super Virtual Fabric (SVF) support enables intelligent virtualization, iStack clustering, and operation in N + 1 backup mode for simplified O&M and high availability. Mature IPv6 features ensure smooth migration to next-generation IP networking.Ā

Quick Specs

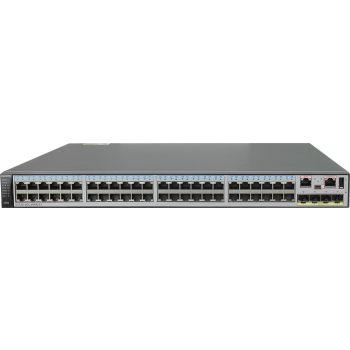

Figure 1 shows the appearance of HuaweiĀ S5720-56C-PWR-EI-ACĀ switch.S5720-56C-PWR-EI-AC

Table 1 shows the Quick Specs.

Product Code S5720-56C-PWR-EI-AC
Fixed Ports 48 x 10/100/1,000 Base-T, 4 x 10 Gig SFP+
Extended Slots One extended slot


Memory (RAM) 2 GB
Flash 340 MB
MAC Address Table Size Forwarding Performance 64 MAC
Forwarding Performance 162 Mpps
Switching Capacity 598 Gbit/s
Power Supply Double hot-swappable AC/DC power supplies, one AC/DC power module is configured by default
PoE Supported
Voltage Required AC

Rated voltage range: 100V to 240V AC, 50/60 Hz

Maximum voltage range: 90V to 264V AC, 47 Hz/63 Hz
Front Power Input No No
Typical Power Consumption < 889.4W (PoE: 740W)
Dimensions (W x D x H) 442 mm x 507 mm x 44.4 mm
Weight 10.32Ā kg

Product Details

Figure 2 shows the front panel of HuaweiĀ S5720-56C-PWR-EI-ACĀ switch.S5720-56C-PWR-EI-AC front panel

Note:

ā‘  Forty-eight PoE+ 10/100/1000BASE-T ports ā‘” Four 10GE SFP+ ports
ā‘¢ One USB port ā‘£ One console port
ā‘¤ One mini USB port ā‘„ ETH management port

* The console port is used Ā with a console cable. The console cable is not delivered with the switch and needs to be separately purchased if needed.

Figure 3 shows the back panel of HuaweiĀ S5720-56C-PWR-EI-ACĀ switch.S5720-56C-PWR-EI-AC back panel

Note:

ā‘  Ground screw ā‘” Rear card slot
ā‘¢ Fan slot ā‘£ Power module slot 2
ā‘¤ PowerĀ module slot 1 ā‘„ ESN label
SKU: S5720-56C-PWR-EI-AC Category: Tags: , ,

S5720-56C-PWR-EI-ACĀ Specification

S5720-56C-PWR-EI-ACĀ Specification
MAC address table IEEE 802.1d compliance

MAC address learning and aging

Static, dynamic, and blackhole MAC address entries

Packet filtering based on source MAC addresses

MAC address entries:
S5700S-LI series: 8K, S5700-LI/S5700-SI series: 16K, S5700-EI series: 32K, S5720-EI series: 64K, S5700-HI series: S5700-HI: 32K, S5710-HI: 456K, S5720-HI: 128K
VLAN 4K VLANs

Guest VLAN and voice VLAN

GVRP

MUX VLAN

VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports

1:1 and N:1 VLAN Mapping

SuperVLAN(supported by the S5700-SI/S5700-EI/S5700-HI series)
Ring protection RRPP ring topology and RRPP multi-instance

Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover

SEP

ERPS(G.8032)(supported by the S5700-LI/S5700-SI/S5700-EI/S5700-HI series)

STP, RSTP, and MSTP

BPDU protection, root protection, and loop protection

BPDU Tunnel
Reliability Ethernet OAM (IEEE 802.3ah and 802.1ag)

ITU-Y.1731

DLDP

LACP

E-Trunk(supported by the S5700-SI/S5700-EI/S5700-HI series)

BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM (supported by the S5700-EI/S5700-HI series)
MPLS features MPLS L3VPN

MPLS L2VPN(VPWS/VPLS)

MPLS-TE

MPLS QoS

Notes: supported by S5710-EI, S5700-HI and S5710-HI
IP routing Static routing

RIPv1, RIPv2 and RIPng,ECMP(supported by the S5700-SI/S5700-EI/S5700-HI series)

OSPF, OSPFv3, IS-IS, IS-ISv6, BGP and BGP4+ (supported by the S5700-EI/S5700-HI series)
IPv6 features Neighbor Discovery (ND)

Path MTU (PMTU)

IPv6 ping, IPv6 tracert, and IPv6 Telnet

ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type

MLD v1/v2 snooping

6to4 tunnel, ISATAP tunnel, and manually configured tunnel(supported by the S5700-SI/S5700-EI/S5700-HI series)
Multicast IGMP v1/v2/v3 snooping and IGMP fast leave

Multicast forwarding in a VLAN and multicast replication between VLANs

Multicast load balancing among member ports of a trunk

Controllable multicast

Port-based multicast traffic statistics

IGMP v1/v2/v3, PIM-SM, PIM-DM, PIM-SSM, MSDP (supported by the S5700-EI/S5700-HI series)
QoS/ACL Rate limiting on packets sent and received by an interface

Packet redirection

Port-based traffic policing and two-rate three-color CAR

Eight queues on each port

WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms

WRED (supported by the S5710-EI and S5700-HI)

Re-marking of the 802.1p priority and DSCP priority

Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID

Rate limiting in each queue and traffic shaping on ports
Security User privilege management and password protection

DoS attack defense, ARP attack defense, and ICMP attack defense

Binding of the IP address, MAC address, interface, and VLAN

Port isolation, port security, and sticky MAC

MFF

Blackhole MAC address entries

Limit on the number of learned MAC addresses

802.1x authentication and limit on the number of users on an interface

AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC

SSH v2.0

Hypertext Transfer Protocol Secure (HTTPS)

CPU defense

Blacklist and whitelist
Access Security DHCP Relay, DHCP Server, DHCP Snooping, DHCP Security
Management and maintenance Virtual cable test

Port mirroring and RSPAN (remote port mirroring)

Remote configuration and maintenance using Telnet

SNMP v1/v2c/v3

RMON

Web NMS

HGMP

System logs and alarms of different levels

802.3az EEE (supported by the S5700(S)-LI, S5710-EI, S5700-HI and S5710-HI)

Dying gasp (supported by the S5700-HI, S5710-HI and S5700(S)-LI(except battery LANĀ switches)

NetStream (supported by the S5710-EI, S5700-HI and S5710-HI)

sFlow(supported by the S5700(S)-LI/S5700-EI/S5700-HI series)
Interoperability Supports VBST (Compatible with PVST/PVST+/RPVST)

Supports LNP (Similar to DTP)

Supports VCMP (Similar to VTP)
Operating environment Operating temperature: 0ā„ƒā€“50ā„ƒ

Relative humidity: 10%ā€“90% (non-condensing)
Input voltage AC:

Rated voltage range: 100 V to 240 V AC, 50/60 Hz

Maximum voltage range: 90 V to 264 V AC, 47/63 Hz

DC:

Rated voltage range: ā€“48 V to ā€“60 V, DC

Maximum voltage range: ā€“36 V to ā€“72 V DC

Note: PoE-supportĀ switchesĀ do not use DC power supplies.
