Huawei videoconferencing terminals integrated HD video conference Terminal

Add to Wishlist

16,699.00 د.إ

Add to Wishlist

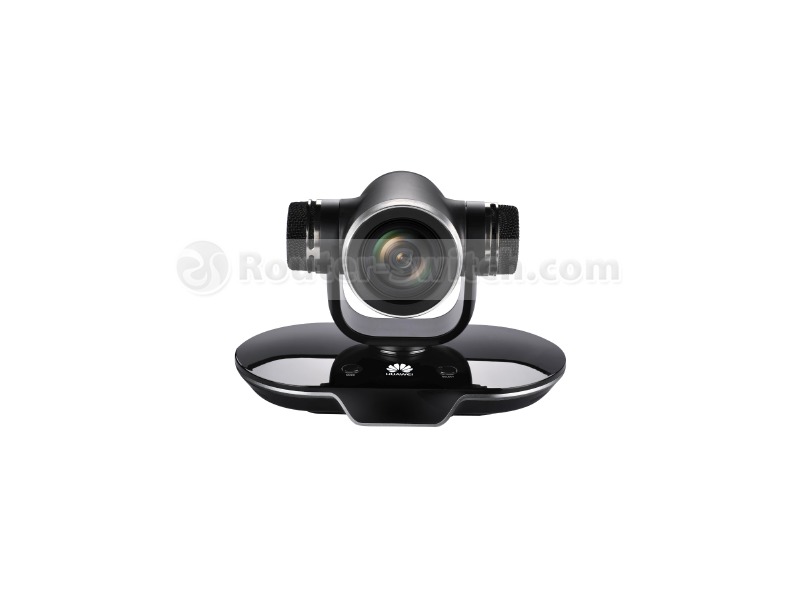

TE30-C-720P Overview

Huawei TE40-720P30-P-03 is the  HD videoconferencing system, it is the simple practical and cost-effective HD conference system tailored for small and medium-sized conference rooms with embedded codec, camera and microphone. This product has adopted a compact design with simple interfaces and an exquisite rack, which you only need one cable to join video conference within 5 minutes. It can be wall-mounted, ceiling ¨Cmounted or placed on the TV to accommodate your deployment requirements. TE40 comes with an auto-configuration guide and real time LCD display, you can easily complete the configuration without the help of IP technicians. Huawei is the first company to adopt intelligent voice dialing technology with TE40, which means you only need to say the scheduled conference or the site name and then you can call or join a meeting.

TE40 also offers an outstanding audiovisual experience and network adaptability. It provides a 1080P HD audiovisual effect with a 512K bandwidth, therefore, it saves 50% of the bandwidth requirement. TE40 can guarantee a clear and smooth audiovisual effect, even when the packet-loss reaches 20%. TE40 has embedded WI-FI supporting wireless network access and data sharing, as meanwhile, the microphone array and touchpad are also accessible through WI-FI

SKU: TE30-C-720P Category: Tag:

TE30-C-720P Specification

TE30-C-720P Specification
Standards and Protocols ITU-T H.323, IETF SIP
Video Standards & Protocols H.263, H.263+, H.264 BP, H.264 HP, H.264 SVC, and RTV
Audio Standards & Protocols G.711, G.722, G.728, G.722.1*, G.722.1C*, AAC-LD, HWA-LD, G.719, G.729, and G.729A
Dual Stream ITU-T H.239, BFCP
Other Standards H.221, H.225, H.230, H.231, H.235, H.241, H.242, H.243, H.245, H.281, H.350, H.460, T.140, and DTMF
Network Standards & Protocols TCP/IP, FTP, FTPS, DHCP, SNMP, Telnet, SSH, HTTP, HTTPS with SSL/TLS, PPPoE, RTP, RTCP, SNTP, ARP, 802.1X, 802.1P, and 802.1Q
Video Specifications and Features
People Video Resolution 1080p30 from 512 Kbit/s (Optional)

720p50/60 from 512 Kbit/s (Optional)

720p25/30 from 384 Kbit/s

4SIF/4CIF from 128 Kbit/s

SIF/CIF/QSIF/QCIF/SQSIF/SQCIF from 64 Kbit/s
Content Video Resolution Input: VGA (640 x 480) @ 60/72/75/85 fps, SVGA (800 x 600) 56/60/72/75/85 @ fps, XGA (1,024 x 768) @ 60/70/75/85 fps, 1,152 x 864 @ 60/75/85 fps, 1,280 x 600 @ 60 fps, WXGA (1,280 x 768) @ 60/75/85 fps, WXGA (1,280 x 800) @ 60/75/85 fps, 1,280 x 960 @ 60/75/85 fps, SXGA (1,280 x 1,024) @ 50/60/72/75/85 fps, 1,360 x 768 @ 60 fps, 1,366 x 768 @ 60 fps, 1,440 x 900 @ 60 fps, XGA+ (1,400 x 1,050) @ 60 fps, 720p60/75/85, 1080p60, 1,600 x 900 @ 60 fps, 1,600 x 1,200 @ 60 fps, 1,680 x 1,050 @ 60 fps, 1,920  x 1,200 @ 60 fps

Coding/Decoding resolution: 800 x 600, 1,024 x 768, 1,280 x 1,024, 1,280 x 720, 1,920 x 1,080 Output: 800 x 600, 1,024 x 768, 1,280 x 1,024, 1,280 x 720, 1,920 x 1,080
Dual Stream 1080p30 + 1080p5 (Optional); Dual 720p30
1080p HD Camera Built-in camera

Video output pixels: 1080p50/60

Lens: 2-megapixel and 1/3-inch CMOS imaging chip

Zoom: 12x optical

Number of preset positions: 30

Maximum horizontal angle: 72° horizontal field of view

Panning/Tilting angle: +/-30° tilt, +/-100° pan

Automatic White Balance (AWB), Automatic Exposure (AE), Automatic Focus (AF)

Far-end camera control

Upside-down mounting with automatic flipping of picture
Other Video Features Intelligent Face Detection

Picture-in-Picture

Picture-outside-Picture

 Video Motion Enhancement (VME)

Video Intensifier

View Processing
Audio Specifications and Features
Audio Features Dual-channel AAC-LD Stereo HWA-LD Stereo:

Huawei Audio Broadband Low Delay Stereo

Acoustic Echo Cancellation (AEC)

Acoustic Noise Suppression (ANS) 12 dB

Automatic Gain Control (AGC) ±6 dB

Voice Clear, Audio Enhancer

Lip synchronization
Security and Stability
Network Dual-stack IPv6 and IPv4

IP Precedence, Diffserv

Uniform Resource Identifier (URI) dialing

 Super Error Concealment (SEC), Intelligent Rate Control (IRC)

Automatic Repeat-reQuest (ARQ), Forward Error Correction (FEC), and PLC
Security H.235 signaling and media stream encryption

AES media stream encryption, dual-stream encryption

TLS and SRTP for SIP signaling and media stream encryption

Conference access password, conference control password

Administrator password, SSH/HTTPS
Firewall Traversal H.460.18, H.460.19 firewall traversal, Static NAT, and SNP
Bandwidth
IP 64 Kbit/s to 4 Mbit/s
Interfaces
Audio Inputs 1 x 3.5 mm line-in jack, 1 x HD-AI (stereo, connects to microphone array )
Audio Outputs 1 x 3.5 mm line-out jack, 1 x HDMI
Video Inputs 1 x VGA, 1 x Built-in Camera
Video Outputs 1 x VGA/YPbPr, 1 x HDMI
USB Interfaces 1 x USB 2.0 Host
Network Interfaces IP: 10/100 Base-T, 1 x RJ45

Wireless: Built-in Wi-Fi
Application Features
Languages Simplified Chinese, Traditional Chinese, English, Japanese, Russian, French, Spanish, Portuguese, German, Finnish, Polish, Hungarian, Italian, Norwegian, Arabic, Swedish, Romanian, Czech, Turkish, Greek, Thai, Dutch, Malay, and Indonesian
Embedded MCU (optional) Non-encrypted conference: 4-way HD (receive 576P, send 720P)/SD video sites+ 3-way VoIP

Encrypted conference: 4-way HD (receive 576P, send 720P)/SD video sites

Max bandwidth: 6M

Auto CP on each port, voice activation, chairman token, broadcast site, H.239 and BFCP

HD/SD endpoints compliant with H.323/ SIP in the same conference, tolerant of different bandwidth consumption and audio/video protocols
Special Features Voice Dialing in English and Chinese

Installation from a USB disk, Plug nd-play

Integration with Microsoft Lync2010™/Lync2013™ and OCS2007R2

Hybrid with IMS network

Wi-Fi

Air content sharing

Wireless MIC VPM220W access

Upside-down mounting

 HD SiteCall

Lock content sharing

Web-based conference management

Web-based image monitoring and cture snapshot

16:9 and 4:3 mixed display

PIP: 1/16 picture size, optional position

Split output: Bi-screen and tri-screen display

LDAP/Network address book

API for integration
Digital Caption Caption banner, body text and information bar

Rolling display mode of the speech draft

Modifiable front background color, caption size and transparency

64 optional colors

 Editable caption and auto zone adjustment

Caption rolling mode setting

Site name display and position shift

Text input through remote control

External character generator

Powerful caption SMS function
Optional
Accessories VPM220 Microphone array or VPM220W wireless Microphone, Wireless touch panel
Function Models 1080p30, Embedded MCU
Maintenance Management
Maintain Methods Remote control: 3D Effects and GUI Animation

Endpoints Network Management: SNMP

Wireless touch panel (optional)

 Embedded Web server, GUI interface

Command line mode: Telnet/SSH
Maintain Functions Endpoint IP and number are displayed on the front panel

Auto sleep, wake-up by remote control or remote module

Event log record, query, display, and export query results

IP network test, default settings restoration

Local and remote loopback

Test signals: providing sound test and standard test stripes
Physical Characteristics
Dimensions Codec dimensions (L x W x H): 235 mm x 167 mm x 157 mm

Package dimensions (L x W x H): 402 mm x 232 mm x 237 mm

Net weight: 2.1 kg; Package Weight: 3.3 kg
Electrical Working voltage: 100V to 240V AC, 12V DC Working frequency: 50 Hz to 60 Hz

Power consumption: 60W
Environmental Specifications Operating Temperature: 0°C to 40ºC

Operating Humidity: 10% to 80%

Non-Operating Temperature: -40ºC to -70ºC

 Non-Operating Humidity (non-condensing): 0% to 95%

Peripheral noise: < 46 dBA SPL Lowest luminance: 7 lux

Recommended luminance: > 300 lux
Approval and Compliance CE, RoHS, WEEE, REACH, UL, FCC, and CCC
