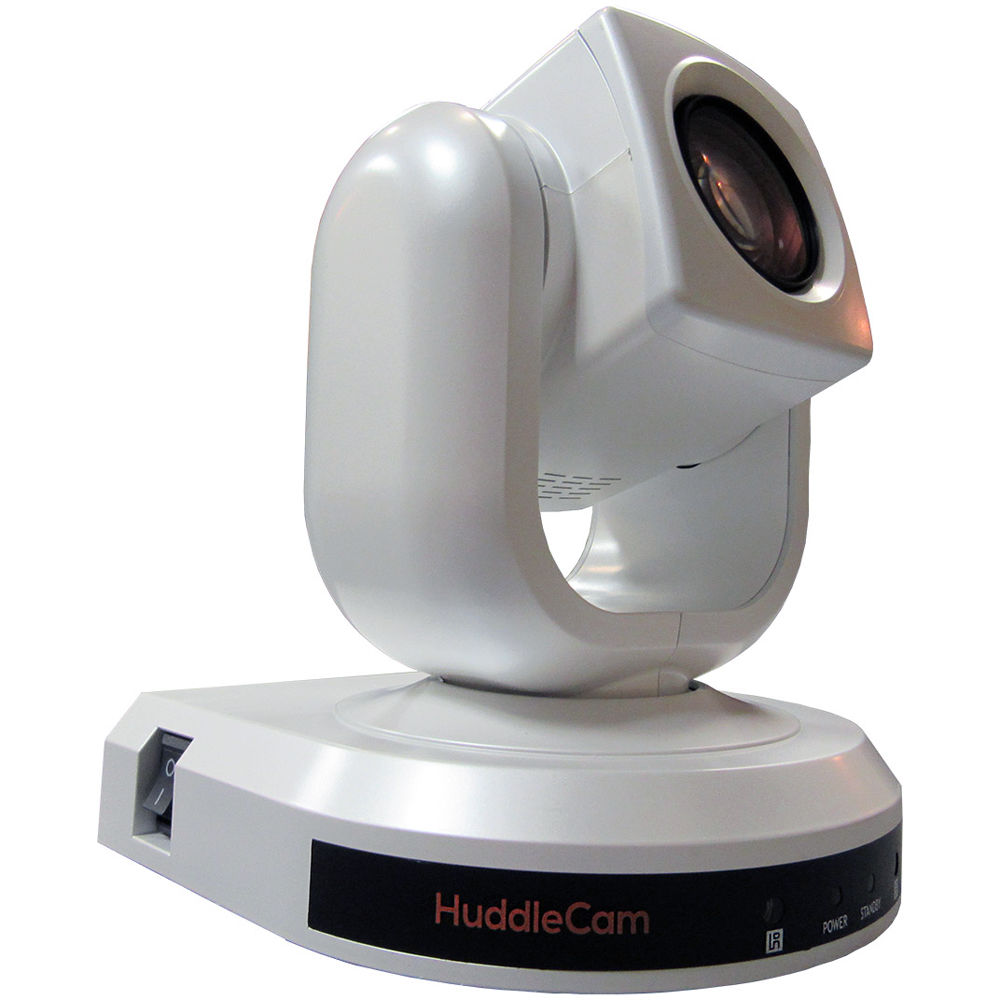

The white HuddleCamHD 30x Full HD USB 3.0 PTZ Camera incorporates a 1/2.8″ CMOS sensor that captures clear images up to a resolution of 1920 x 1080 at a frame rate of 30 fps. The camera is suitable for use in large to auditorium-sized meeting rooms. The camera is equipped with a Sony 4.6 to 138.3mm varifocal lens, and comes with a built-in 30x optical and 12x digital zoom.
Certified Sony lens captures images with a 63° field of view and 30x optical zoom
Captures video up to a resolution of 1920 x 1080 up to 30 fps
Connectivity includes USB 3.0 and RS-232
Infrared remote with 64 camera presets
| Weight | 1.1 kg |
|---|
HuddleCamHD HC30X Specs
Image Sensor
| Image Sensor | 1-Chip 1/2.8″ CMOS Sensor |
| Sensor Resolution | 3.27 MP |
| Minimum Illumination | 1.4 Lux |
Camera
| Max Digital Zoom | 12x |
Lens
| Optical Zoom Ratio | 30x |
| Focal Length | 4.6 to 138.3mm |
| Field of View | 3 to 63° |
Video Output
| Broadcast System Compatibility | NTSC |
| Output Formats | USB: 1920 x 1080 at 30 fps 1280 x 720 at 60 fps |
Control
| Presets | 64 |
| Movement Range | Pan: 355° (0 to 355°) Tilt: 125° |
Interfaces
| Video Output Connectors | 1 x USB 3.0 Type-B (USB Video) Female |
| Control Interface | 1 x 8-Pin Mini-DIN (VISCA, RS-485) |
System Requirements
| Supported Operating Systems | Windows 7 macOS 10 |
Power
| Power Consumption | Power Supply: 10.5 to 14 VDC at 2 A (24 W) |
Environmental
| Operating Temperature | 32 to 113°F / 0 to 45°C |
General
| Material of Construction | Aluminum, Plastic |
Physical
| Dimensions | 5.9 x 5.7 x 5.6″ / 14.9 x 14.4 x 14.3 cm |
| Weight | 2.5 lb / 1.1 kg |
Packaging Info
| Package Weight | 6.4 lb |
| Box Dimensions (LxWxH) | 12 x 9.4 x 9.3″ |
