IBM 00AK123 UPS 6000VA / 5000W Uninterruptible Power Supply
Interface Types: IEC C13, IEC C19
U Height: 3U
Wattage/VA: 5000W
AED14,999.00

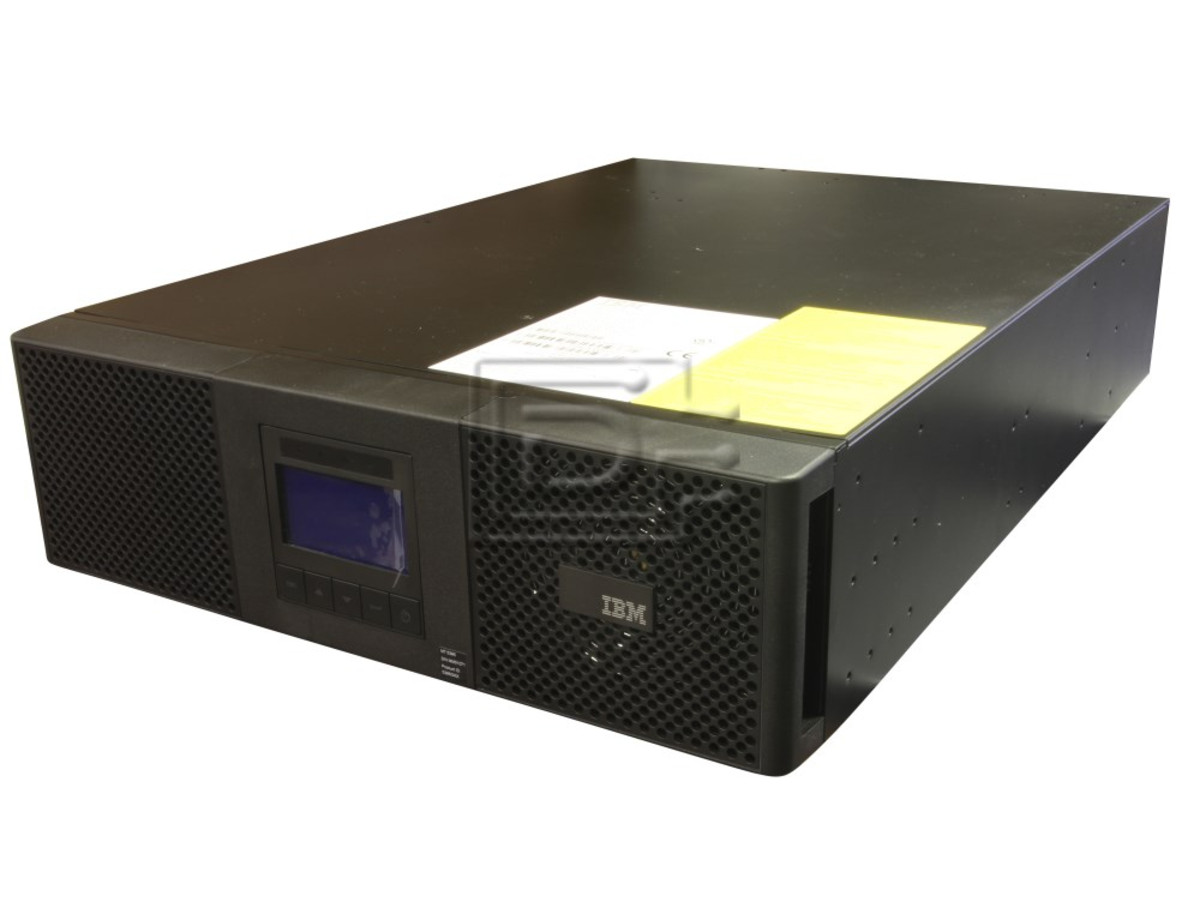

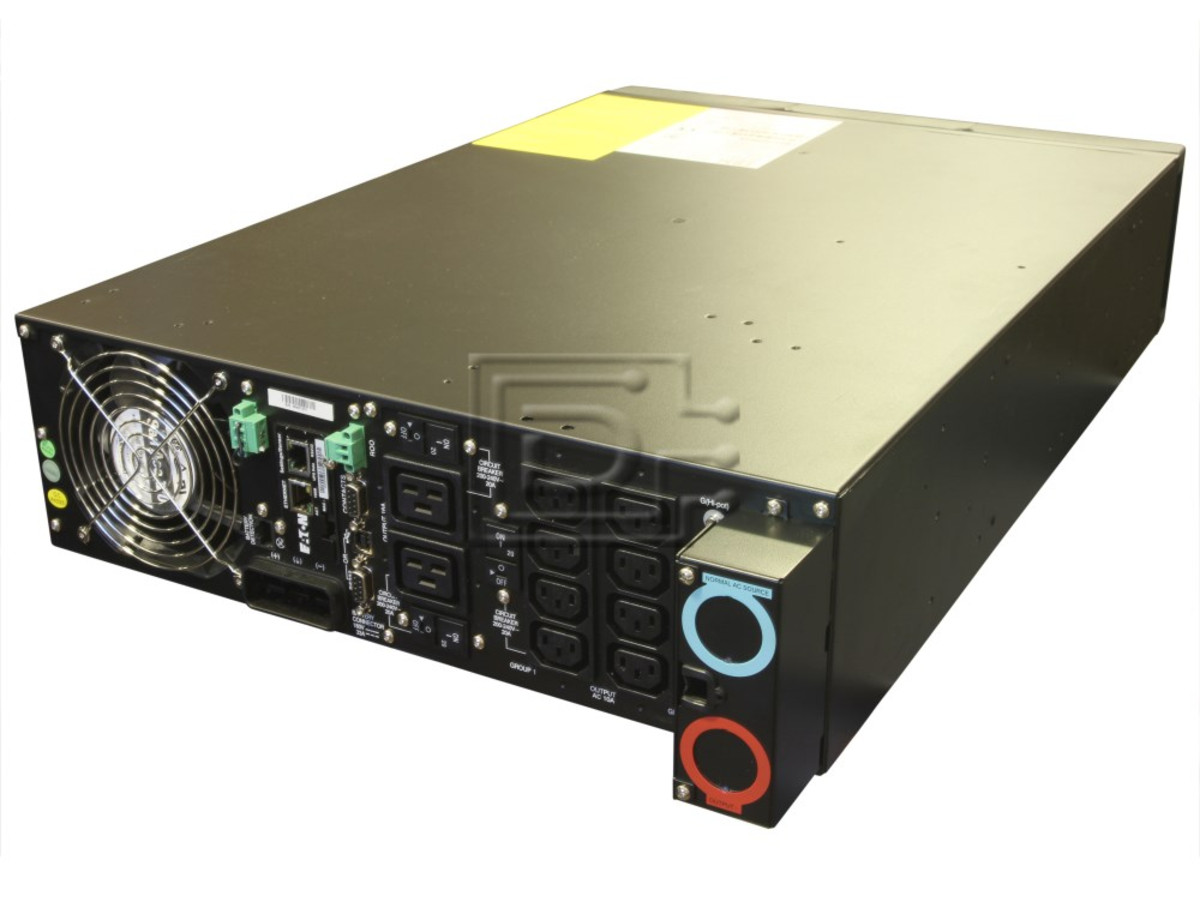

IBM 00AK123 / 9SX UPS 6000VA / 5000W Uninterruptible Power Supply – Brand New
IBM 00AK123 / 9SX UPS 6000VA / 5000W Uninterruptible Power Supply – Brand New
Alt MPN’s: IBM 5395, 5395-RU4, 5395GKX, 00AK116, 00AK123
| Technical Specifications | |
|---|---|
| Output | |
| Output Power Capacity | 200/208/220/230/240V +/- 1% |
| Max Configurable Power | 5000 VA / 6000W |
| Nominal Output Voltage | 200/208/220/230/240V |
| Output Frequency | 50/60 Hz autoselection |
| Output Connections | (8) IEC 320 C13 / (2) IEC 320 C19 |
| Input | |
| Nominal Input Voltage | 200/208/220/230/240V |
| Input Frequency | 50/60 Hz autoselection |
| Input Connections | Hardwired – (Manual describes terminal block layout) |
| Input voltage range for main operations | 176-276V without derating (up to 100-276V with derating) |
| Batteries & Runtime | |
| Battery Management | ABM and Temperature compensated charging method (user selectable), automatic battery test, deep discharge protection, automatic recognition of external battery units. |
| Extended Battery Capability | EBM with Rack Kit |
| Communications | |
| User Interface | Multilingual graphical LCD Display |
| Communication Ports | 1 USB Port, 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously), 4 dry contacts (DB9), 1 mini terminal block for remote On/Off and 1 for remote power Off |
| Communications Slot | 1 slot for Network-MS card, ModBus-MS or Relay-MS cards |
| Environments & Standards | |
| Audible Noise | <45dB |
| Operating Temperatures | 0 to 40 degrees celcius continuous |
| Safety Markings | IEC/EN 62040-1, UL 1778, CSA 22.2 |
| EMC Markings | IEC/EN 62040-2, FCC Class A, IEC/EN 62040-3 (Performance), C-Tick |
| Approvals | CE, CB report (TUV), UL |
