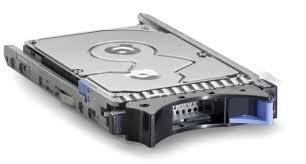

IBM 43X0824 SFF SAS Hard Drive

Capacity: 146GB
Spindle Speed: 10,000RPM
Interface Type: SAS / Serial Attached SCSI
Disk Size: 2.5″x15mm (SFF Hard Drive)
Sustained Throughput (MBps): 55 to 89
Average Seek Time (read/write ms): 3.8 / 4.4
Electrical Interface Speed: SAS / Serial Attached SCSI – 3.0Gbps
On-Board Cache: 16MB

This 2.5-inch enterprise disc drive makes possible a new class of high I/O, high-density storage solutions. Space-constrained data centers are enabled to achieve higher IOPs (input/output per second) performance in small form factor system configurations while maintaining the highest levels of reliability.

These drives combine giant magnetoresistive (GMR) heads, partial response/maximum likelihood (PRML) read channel electronics, embedded servo TECHNOLOGY, and a Serial Attached SCSI (SAS) interface to provide high performance, high capacity data storage for a variety of systems including engineering workstations, network servers, mainframes, and supercomputers. The Serial Attached SCSI interface is designed to meet next-generation computing demands for performance, scalability, flexibility and high-density storage requirements.

Compatibility

System x x3200
System x x3200 M2	System x x3250	System x x3250 M2	System x x3350
System x x3400	System x x3455	System x x3500	System x x3550
System x x3600	System x x3650	System x x3655	System x x3700
System x x3755	System x x3800	System x x3850	System x x3850 M2
System x x3950	System x x3950 M2	System x x3950E Specifications 146 GB Model Number 43X0824 Capacity   Formatted 512 Kbytes/SECTOR (GB) 146.8 Interface 3-Gb/s SAS External Transfer Rate (MB/s) 300 Performance   Spindle Speed (RPM) 10K Average Latency (msec) 3.0 Seek Time   Average Read/Write (msec) 3.8/4.4 Track-to-Track Read/Write (msec) 0.2/0.4 Sustained Transfer Rate, Outer to Inner Diameter (MB/s) 89 to 55 Cache, Multisegmented (MB) 16 Configuration/Reliability   Disks 2 Heads 4 Nonrecoverable Read Errors per Bits Read 1 SECTOR per 10E16 Annualized Failure Rate (AFR) 0.55% Power MANAGEMENT   Typical Op (amps) +12V/+5V 0.39/0.79 Power Idle (watts) 5.2 Environmental   Temperature, Operating (°C) 5 to 55 Temperature, Nonoperating (°C) –40 to 70 Shock, Operating: 2 msec (Gs) 60 Shock, Nonoperating: 2 msec (Gs) 300 Acoustics Idle (bels—sound power) 3.1 Vibration, Operating: <400 Hz (Gs) 0.5 Vibration, Nonoperating: <500 Hz (Gs) 1.2 Physical   Height (in/mm) 0.583/14.8 Width (in/mm) 2.76/70.1 Depth (in/mm) 3.945/100.2 Weight (lb/kg) 0.5/0.21
