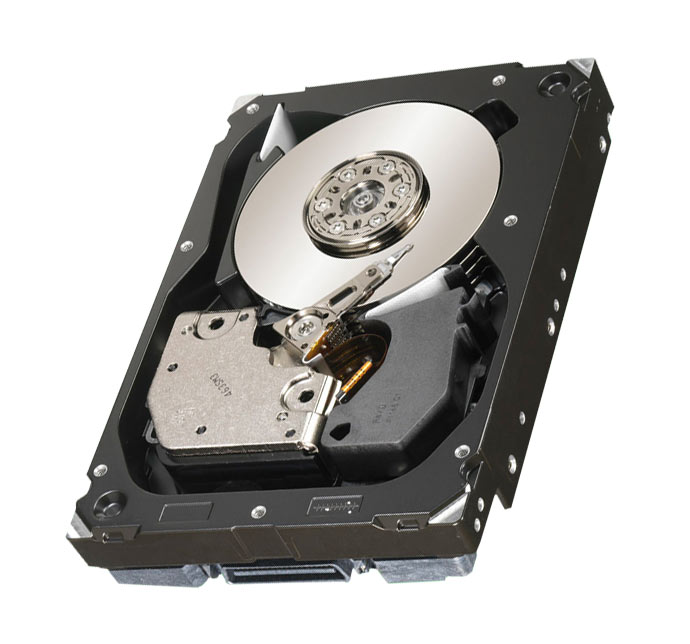

IBM / Hitachi Ultrastar 146Z10 07N9353 Fibre / Fiber Channel Hard Drive

Hitachi Ultrastar 146Z10 07N9353 / IC35L146EFDY10 146GB 10K 2Gbps 40pin FC-AL Fibre Channel Hard Drive – Refurbished

Advanced drive technology

Introducing the sixth generation of Ultrastar 10,000 rpm disk drives. The Hitachi Ultrastar 146Z10 drive family offers high quality and superior performance. These drives feature more powerful processors and read/write channels to excel in server-class environments.

To achieve maximum I/O performance, the drives combine fast seek times, large 8 MB multi-segmented buffers, a sophisticated command queuing algorithm, hardware automation, and superior data rates (825 Mbps). Ultrastar 146Z10 drives include new servo technology (Rotational Vibration Safeguard ”RVS”), employed to counteract the effects of rotational vibration that commonly occur in multi-drive cabinets. They also employ fifth-generation giant magnetoresistive (GMR) head technology to double areal density from previous generation drives (26.3 Gbits/sq. in.) and boost performance. In addition, highly efficient No-ID sector formatting enables more data to be stored per disk

Reliability features

The Ultrastar 146Z10 family of server-class drives is the first of its class to incorporate our storage breakthrough technology—antiferromagneticallycoupled (AFC) media. Informally known as “pixie dust”, this technology sandwiches a three-atom thick layer of ruthenium, a precious metal, between two magnetic layers on a disk. AFC technology provides greater stability of the recording media, enhancing reliability.

Drive Fitness Test enables drive selftesting and analysis—for more robust system management. To help ensure data protection, Hitachi Ultrastar drives include exclusive reporting tools, such as Predictive Failure Analysis* (to signal potential drive problems) and Drive-TIP* (to monitor the drive temperature and avoid malfunctions).

In addition, load/unload technology and glass substrate disks increase reliability of Ultrastar drives by providing a more robust solution at high rotational speeds.

Outstanding environmentals

Hitachi Ultrastar drives provide extremely quiet operation. The tri-laminate drive cover reduces both idle and seek acoustics while an enhanced spindle motor driver enables smoother commutation for less noise. Moreover, the Ultrastar 146Z10 delivers an outstanding power efficient design.

Support for advanced applications and interfaces

Hitachi Ultrastar drives provide high data throughput for data-intensive applications with a choice of 2 Gbit Fibre Channel and Ultra320 SCSI (backwardcompatible) interfaces. The Ultra320 SCSI adds greater speed, reduced overhead, improved diagnostic capabilities and data protection.
