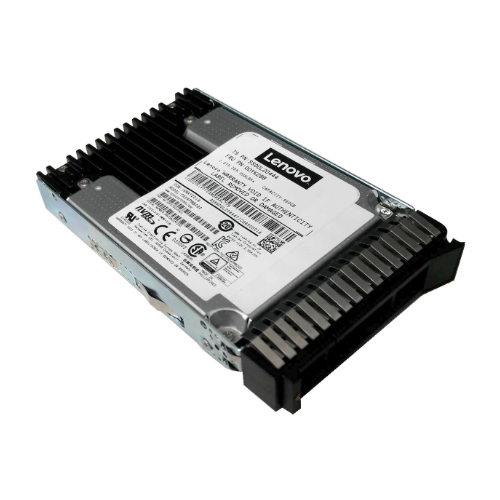

IBM / Lenovo 49Y6200 1.6TB SAS Solid State Drive Kit 46M2770

IBM / Lenovo 49Y6200 / 49Y6201 1.6TB 2.5-Inch SFF eMLC SS Mixed Use SAS Solid State Drive kit 46M2770 for Systems x3530 M4, x3250 M4, dx360 M4 – Brand New

IBM / Lenovo 49Y6200 / 49Y6201 1.6TB 2.5″ Small Form Factor / SFF Enterprise Multi-Level Cell / eMLC Simple-Swap / SS Mixed Use 10 Drive Writes Per Day / DWPD Serial Attached SCSI / SAS Solid State Drive / SSD kit 46M2770 for Systems x3530 M4, x3250 M4, dx360 M4 – Brand New

Introduction
The SAS MLC Enterprise solid-state drives (SSDs) for System x® employ MLC NAND technology to provide an affordable, but performance-driven solution for applications requiring enterprise workloads with a mix of read/write operations. These industry standard 2.5-inch and 3.5-inch form factor SSDs use a single-chip controller with a SAS interface on the system side and 16 channels of NAND flash internally. They provide outstanding performance, endurance, reliability, and energy efficiency for random read- and write-intensive enterprise workloads such as databases, data warehouses, corporate email and collaboration, actively connected users, caching and tiering applications, and others.

Did you know?
With SanDisk FlashGuard protection, SAS MLC Enterprise SSDs can be fully rewritten up to ten times per day throughout their entire five-year life expectancy. Unlike SATA drives, the SAS interface supports full duplex data transfer for higher performance, as well as dual port connectivity and enterprise-level error recovery for better availability.

Rigorous testing of SAS Enterprise MLC SSDs by Lenovo through the ServerProven® program assures a high degree of confidence in storage subsystem compatibility and reliability.

The part numbers for the SSDs include the following items:

• One SSD with either a hot-swap or simple-swap tray, depending on the part number
• Technical Update Flyer
• Warranty Flyer
• Important Notices document

Features
The SAS MLC Enterprise SSDs have the following features:

• Industry standard 2.5-inch or 3.5-inch drive form factor
• Utilizes 19 nm MLC NAND technology
• Cost-effective MLC SAS drive with high read and write performance to fulfill client needs in the enterprise space
• High endurance, with up to 29.2 PB of total bytes written (TBW) to withstand applications with intensive read/write workloads
• Energy saving, with as little as 7 watt power consumption per drive
• Absence of moving parts to reduce potential failure points in the server
• S.M.A.R.T. support
• Advanced Encrypting Standard (AES) 256-bit encryption
• FlashGuard technology extends the native endurance of commercial-grade MLC flash
  • Aggregated Flash Management
  • Advanced Signal Processing
  • Enhanced Error Correction
• DataGuard technology protects against data corruption and loss
  • Full data path protection
  • Flexible Redundant Array of Memory Elements (F.R.A.M.E.) data recovery algorithm
• EverGuard technology protects data in the event of unplanned power outages
• Static wear leveling evenly distributes data across the drive
• Bad block management replaces failed blocks with new ones from the spare pool
• Thermal throttling to extend the life of the drive
• Data retention management to ensure availability and integrity of stored data
• Minimal write amplification for efficient flash utilization and extended lifetime
