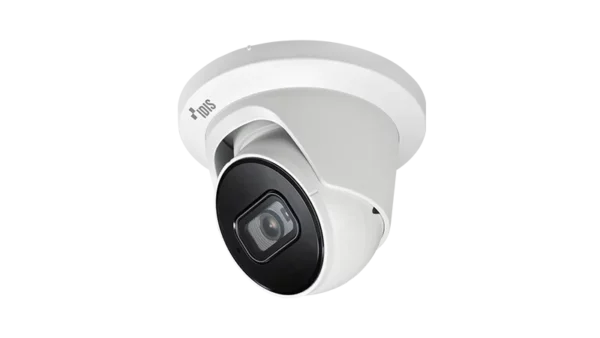

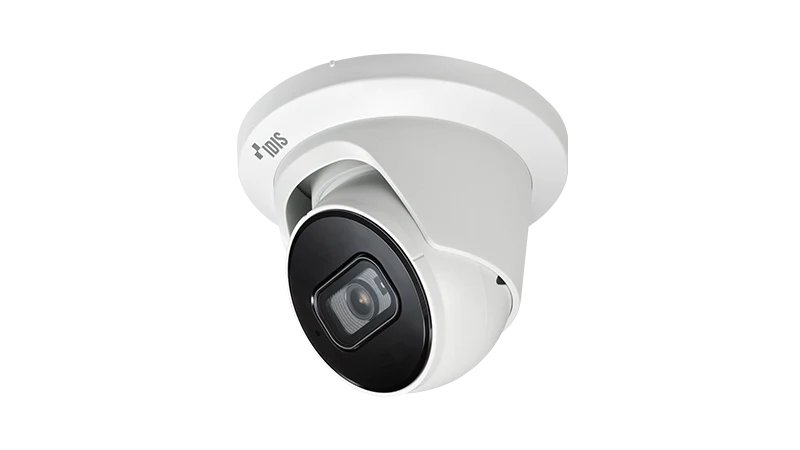

IDIS DC-D4512WERA2.8 5M AI Turret Outdoor Camera (LightMaster NIR), 2.8mm, IR 98.4ft., PoE (IEEE 802.3af Class 3), H.265, Audio MIC In/Out

Add to Wishlist

د.إ2,599.00

Add to Wishlist
  • Easy installation with DirectIP NVR
  • H.265 and Intelligent Codec
  • PoE (IEEE 802.3af Class 3)
  • IR LED (30m / 98.4 ft (4ea))
  • IDIS Deep-Learning Analytics (IDLA)
SKU: DC-D4512WERA2.8 Category: Tag:
Video
Image Sensor 1/2.8″ CMOS
Max. Resolution 2592 x 1944
Scanning Mode Progressive Scan
Lens Type Fixed-focal
Focal Length 2.8mm
Aperture F2.0
Iris Control Fixed Iris
Angular Field of View 4:3 mode : 104.8º(H) 76.9º(V) 130º(D)
16:9 mode : 104.8º(H) 57.2º(V) 123º(D)
Min. Illumination COLOR : 0.13 lux @ F2.0
B/W : 0 lux (IR LED ON)
Dynamic Range 120dB (True WDR)
Electronic Shutter Speed Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15)
Day and Night Yes (ICR)
IR Distance (LEDs) 30m / 98.4 ft (4ea)
Image Setting Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control)
Backlight Compensation –
Mirroring / Pivot Horizontal / Vertical / Pivot
Image Stabilizer –
De-fog Yes
Privacy Masking 8 Zones
Intelligent Video Object Metadata: Human, Vehicle, Face
IDLA: Object Detection, Intrusion, Loitering, Line Crossing, Face Detection
ETC: Video Motion Detection, Active Tampering Alarm
Video Out –
Pan/Tilt/Rotate
Pan Range -180° ~ 180°
Tilt Range -5° ~ 65°
Rotate Range -180° ~ 180°
Network
Video Compression H.265, H.264 (MP), M-JPEG
Intelligent Codec Yes
Bitrate Control H.265 – CBR / VBR, H.264 – CBR / VBR
Audio Compression ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law
Two-way Audio Yes
IP Camera Protocol DirectIP 2.0, ONVIF Profile S/T
Max. Frame Rate 4:3 mode : 30ips : 2592 x 1944(WDR)
16:9 mode : 30ips : 2592 x 1456(WDR)
Supported Resolution 4:3 : 2592×1944, 1920×1440, 1280x960x 640×480
16:9 : 2592×1456, 1920×1080, 1280×720, 640×360
Multi-video Streaming Quadruple Streaming
Network Protocols DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP,
RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2
Security Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption
Ethernet RJ45 (10/100BASE-T)
Recording Session Buffer (NLTSrec) Yes (Up to 60MB)
Edge Storage micro SD/SDHC/SDXC, Smart Failover (Up to 512GB)
Alarm and Event
Trigger Event Motion Detection, Alarm in, Audio detection, Tampering, Object Detection, Intrusion, Loitering, Line Crossing, Face Detection
Event Notification Remote S/W, Email (with Image)
Audio Alarm Yes
Audio In / Out 1(Built In MIC)+1 / 1
Alarm In / Out 1 / 1
Environmental
Vandal Proof Casing IK10
Outdoor Ready IP67
Operating Temperature -40°C ~ +55°C (-40°F ~ +131°F)
*Starting up at above -20°C (-4°F)
Operating Humidity 0% ~ 90%
Electrical
Power Source PoE (IEEE 802.3af Class 3)
Power Consumption PoE, IEEE 802.3af(Class 3), 7.6W
Approval FCC, CE, KC
Mechanical
Dimensions Ø121 x 78.7mm (Ø4.76” x 3.1”)
Weight 605g (1.3lb)
