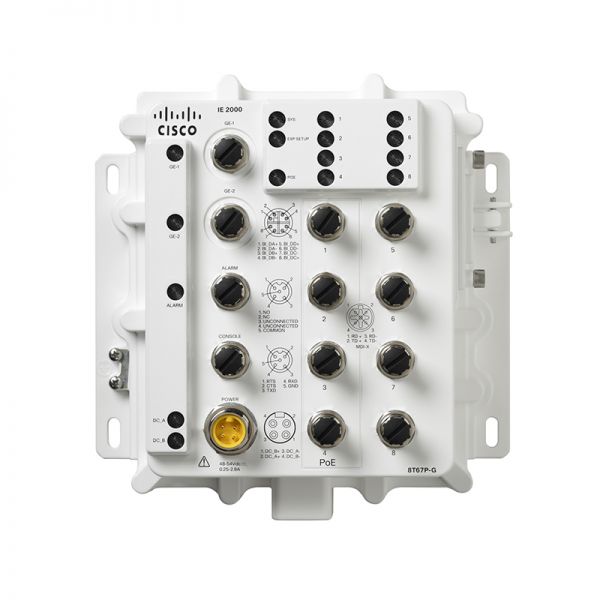

IE-2000-8T67P-G-E is a Cisco IE 2000 IP67 series switch, providing 8 100 MB D-code and 2 GE X-code ports. CiscoĀ® Industrial Ethernet (IE) 2000 IP67 Series is Ciscoās first ruggedized switching platform that complies with the most demanding IP67 industrial standards. It also provides everything youāve come to expect from the global leader in Internet Protocol (IP) networking: easy integration with the rest of your network, reliability, rock- solid performance, and world-class support. Now, those advantages and Cisco IOSĀ® Software features extend all the way to the factory floor, rail yard, or other industrial site, even in the harshest environments. So you can finally fulfill the promise of network convergenceāacross both Information Technology (IT) and Operations Technology (OT) environmentsāwith one supplier.
Quick Spec
Table 1 shows the quick spec.
| Model |
IE-2000-8T67P-G-E |
| Total Ports |
10 |
| 100 MB D-code |
8 |
| GE X-code ports |
2 |
| Manufacturing license |
LAN Base |
| IEEE1588 |
Yes |
| NAT |
Yes* |
| PoE (+) |
Yes |
| Dimensions (H x W x D) |
9.5ā x 9.32ā x 3.9ā (241.7 x 236.7 x 99 mm) |
| Weight |
7.19 lbs. (3.26 kg) |
*Requires LAN Base to LAN Enhanced image (enables Layer 2 NAT)
Product Details
Table 2 shows the highlights of the IE 2000 IP67 series switches.
| Feature |
Description/benefit(s) |
| Certified IP67 rating |
The solution is IP67-rated to protect against dust and submersion in water. It meets the most rigorous industrial and safety standards for extreme temperature and vibration, humidity, electromagnetic emissions, and other factors. |
| Compliant with industrial automation standards |
The rugged switch supports EtherNet/IP (CIP) and PROFINET so you can easily integrate it with any Ethernet- based industrial equipment and management system. It also supports Precision Time Protocol (PTP) v2 for demanding synchronized applications. |
| Easy deployment |
With zero-touch discovery using Dynamic Host Control Protocol (DHCP), express setup, and sub-60-second boot- up times, you can easily migrate to all-IP-over-Ethernet networking environment. |
| Strong endpoint security |
Support for the following:
āĀ Ā 802.1x
āĀ Ā Port security
āĀ Ā Dynamic port-based authentication using DHCP
āĀ Ā Encrypted administrative traffic
āĀ Ā CentralizedĀ authentication |
| Resiliency |
Cisco brings recovery mechanisms such as flex links and Cisco Resilient Ethernet Protocol (REP) to the factory floor or other industrial site. Profinet MRP ring provides the open standard industrial resiliency. |
| Manageability |
Cisco DNATMĀ Center enables centralized automation and assurance at scale withĀ a DNA Essentials 3- or 5-year term-based subscription license.
āĀ Ā The solution is easy for operations staff to configure and manage. Cisco Auto Smart Port lets you configure the right Quality of Service (QoS) settings for any port in seconds. It also allows for secure web-based administration and easy integration with your network management system. |
| Network Address Translation (NAT) |
The switches provide line-rate, hardware-enabled static address translation to easily connect complex Layer- 2/machine node networks. |
| Industrial Power-over-Ethernet (PoE) |
Select switch models let you connect and power endpoints with a single cable in compliance with PoE and PoE+ standards. |
| Removable SD flash memory |
With tightly secured swappable hard drives, you can quickly replace switches in the field with minimal disruption. |
| Platform flexibility |
The Cisco IE2000 IP67 Series is available with 8, 16, or 24 10/100 Base-T, fixed-configuration Ethernet ports and 2x Gigabit Ethernet ports. It provides M12 D Coded, X Coded, and a mini-change dual-power connector in an industrial-hardened, wall-mountable form factor. |
