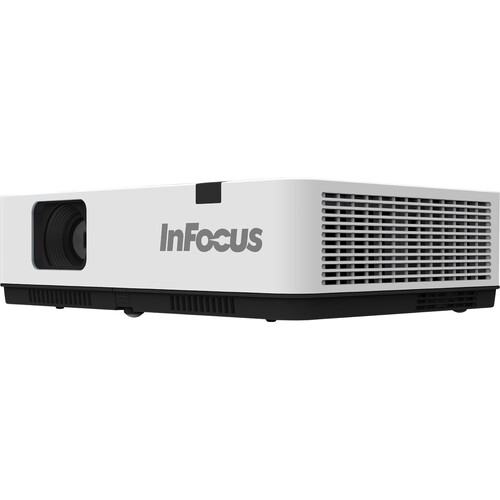

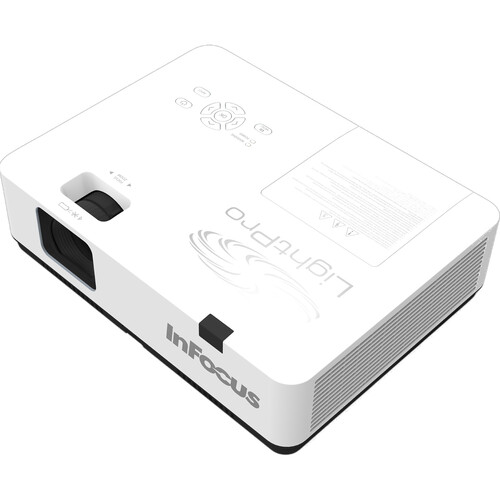

InFocus IN1036 Advanced 4600-Lumen WXGA 3LCD Projector

Add to Wishlist
Key Features
  • Brightness of 4600 Lumens
  • WXGA 1280 x 800 Native Resolution
  • 1.37-1.65:1 Throw Ratio
  • Dynamic Iris for Improved Image Contrast
  • Multi-Faceted Image Correction
  • Supports Flat, Uneven & Curved Surfaces
  • Up to 5×5 Grid Screen Splicing
  • Display Your Logo or Mascot on Startup
  • Project from Dual HDMI, VGA, USB & LAN
  • Up to 1.2x Manual Optical Zoom

AED3,299.00

Add to Wishlist

Using bright and long-lasting UHP lamps, the IN1036 Advanced 4600-Lumen WXGA 3LCD Projector from InFocus is well suited for fully lit conference rooms or classrooms. The 1280 x 800 HD image it projects is given an added level of realism with rich contrast, thanks to a dynamic iris, which opens and closes based on the content you project. So, it closes during darker content, and opens when the source is lighter. The IN1036 also offers multiple adjustments for projecting a rectangular image on flat, uneven, or curved surfaces. Additional features, such as built-in image capture and screen splicing let you take more control over your presentations.

Multi-Faceted Image Correction
In addition to horizontal and vertical keystone correction, the IN1036 provides six-point pincushion and barrel adjustment. These adjustments use optical distortion algorithms and built-in image correction software to project a properly shaped image onto uneven and curved surfaces.
Screen Splicing
This feature lets you splice an image into a 5×5 or smaller grid, giving you the ability to select a section to display at full screen, or multiple sections to display at full screen one at a time.
Built-In Image Capture
Personalize the IN1036 to your company or school with the built-in image capture tool. The tool lets you capture your company logo or school mascot, displaying it as a background image when starting up.
USB & LAN Projection
In addition to HDMI, VGA, and composite video inputs, you can add sources via USB or over a local network. Connect a Windows-based computer or USB flash drive to the USB-C or USB-A ports, or use the Gigabit RJ45 port to access local network drives and servers.
Additional Features
  • Compatible with many popular control and management platforms
  • Supports 4K content at 30 Hz
  • Up to WXGA manual optical zoom
  • Up to 4x digital zoom
  • 1.37-1.65:1 throw
SKU: IN1036 Category: Tag:
Key Specs
Display System
3-Chip 0.59″ LCD
Native Resolution
1280 x 800
Maximum Brightness
White: 4600 Lumens
Color: 4600 Lumens
Throw Ratio
1.37 to 1.65:1
HDR Support
No,
Inputs/Outputs
1x DE-15/DB-15 (VGA) Video Input
1x RCA (Composite) Video Input
2x HDMI 1.4 Audio, Video Input
1x USB-B 2.0 Power Input
1x RJ45 (Ethernet) Data Input
1x 1/8″ / 3.5 mm Mini Audio Input
1x DE-15/DB-15 (VGA) Video Output
1x 1/8″ / 3.5 mm Mini Audio Output
1x USB-A Power Output
1x DE-9/DB-9 (RS-232) Control Input
1x USB-B 2.0 Service Input
Light Source
Lamp (1 x UHP)
Image Display
Display System
3-Chip 0.59″ LCD
Native Resolution
1280 x 800
Supported Resolutions
Maximum: 3840 x 2160 @ 30 Hz
Maximum Brightness
White: 4600 Lumens
Color: 4600 Lumens
Uniformity
85%
Offset
10%
Aspect Ratio
Native: 16:10
Contrast Ratio
50,000:1
Lens
Includes Lens
Yes
Focus
Manual
Aperture
f/1.6 to 1.76
Focal Length
19.16 to 23.02mm
Optical Zoom
Manual: 1.2x
Throw Distance
2.85 – 35.23′ / 0.87 – 10.74 m
Throw Ratio
1.37 to 1.65:1
Features
Keystone Correction
Auto / Manual to Vertical: ± 30°
Auto / Manual to Horizontal: ± 30°
HDR Support
No,
Digital Zoom
4.0x
Multi-Input Support (PIP/PBP)
Not Specified by Manufacturer
Input/Output Connectors
Inputs/Outputs
1x DE-15/DB-15 (VGA) Video Input
1x RCA (Composite) Video Input
2x HDMI 1.4 Audio, Video Input
1x USB-B 2.0 Power Input
1x RJ45 (Ethernet) Data Input
1x 1/8″ / 3.5 mm Mini Audio Input
1x DE-15/DB-15 (VGA) Video Output
1x 1/8″ / 3.5 mm Mini Audio Output
1x USB-A Power Output
1x DE-9/DB-9 (RS-232) Control Input
1x USB-B 2.0 Service Input
HDCP Support
Not Specified by Manufacturer
Hardware
Mobile App Compatible
No
Bluetooth
No
General
Light Source
Lamp (1 x UHP)
Expected Lamp Life
Full Brightness: 20,000 Hours
Fan Noise
Full Brightness: 32 dB
Medium Brightness: 26 dB
Security
Cable Lock Slot
Keypad Lock
Password Protection
Security Bar
Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
Full Brightness: 340 W
Low Brightness: 150 W
Standby Mode (Lamp Off): < 0.5 W
Certifications
CB, CE, EAC, cTUVus, CCC, FCC, UKCA, NOM, PSB, BIS, WEEE, RoHS, CEL, CECP
Operating Temperature
41 to 104°F / 5 to 40°C
Storage Temperature
14 to 122°F / -10 to 50°C
Operating Humidity
20 to 80%
Storage Humidity
20 to 80%
Dimensions (W x H x D)
13.6 x 10.3 x 3.9″ / 345.0 x 261.0 x 99.0 mm
Weight
7.3 lb / 3.3 kg
