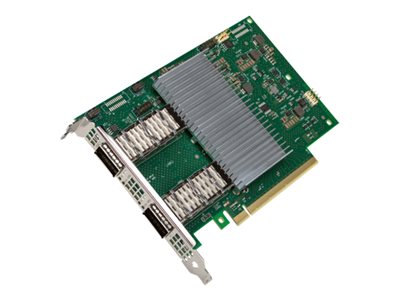

Intel E810-2CQDA2 – network adapter – PCIe 4.0 x16 – QSFP28 x 2

Meet the demanding bandwidth needs of advanced Communications, Cloud, and Storage deployments and improve application efficiency and network performance with innovative and versatile capabilities that optimize high-performance server workloads.

The Intel Ethernet Network Adapter E810-2CQDA2 delivers up to 200 Gbps of total bandwidth in systems that are PCIe 4.0 compliant. Each QSFP28 port supports up to 100 Gbps, providing the functionality and throughput of two 100 Gbps adapters in a single bifurcated PCIe 4.0 x16 slot. Performance for Cloud Applications. Delivers the bandwidth and increased application throughput required for demanding cloud workloads including edge services, web servers, database applications, caching servers, and storage targets. Application Device Queues (ADQ) improves application response time predictability using advanced traffic- steering technology. Dynamic Device Personalization (DDP) enhances packet classification capabilities, to deliver up to 3x throughput improvement for some cloud workloads. Supports both RDMA iWARP and RoCEv2 for high-speed, low-latency connectivity to storage targets, hybrid cloud, and HPC.

Optimizations for communications workloads. Provides packet classification and sorting optimizations for high-bandwidth network and communications workloads, including mobile core, 5G RAN, and network appliances. Dynamic Device Personalization (DDP) supports existing and new communications-specific protocols improving packet-processing efficiency up to 3x for some Network Functions Virtualization (NFV) workloads. IEEE 1588 Precision Time Protocol (PTP) v2 enables precise clock synchronization across the 5G RAN deployments.

Enhanced Data Plane Development Kit (DPDK) support increases packet-processing speeds. Versatile Port Configurations with EPCT. Using EPCT, each port supports up to 100 Gbps and can be programmed to act as different physical adapters. The E810-2CQDA2 supports these configurations: 2 x 100Gb, 4 x 50Gb, 8 x 25Gb.
