Network Adapters

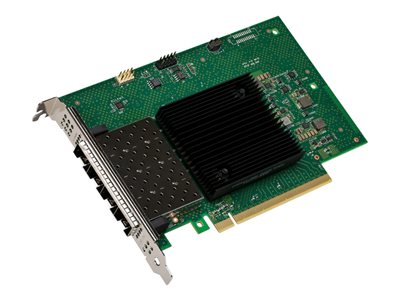

Intel E810XXVDA4L – network adapter – PCIe 4.0 x16 – 25 Gigabit SFP28 x 4
Intel E810XXVDA4L – Network adapter – PCIe 4.0 x16 – 25 Gigabit SFP28 x 4 – for P/N: UCSC-C220-M6N=, UCSC-C225-M6S=, UCSC-C240-M6N=, UCSC-C240-M6S=, UCSC-C245-M6SX=
AED9,399.00
Intel Ethernet 800 Series network adapters improve application efficiency and network performance with innovative and versatile capabilities. With its high 10/25GbE port density, the E810-XXVDA4 adapter is designed to optimize high-performance system workloads for Cloud and Communications.
| General |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 4.0 x16 |
| PCI Specification Revision | PCIe 4.0 |
| Networking |
| Ports | 25 Gigabit SFP28 x 4 |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, RDMA over Converged Ethernet (RoCE v2) |
| Data Transfer Rate | 25 Gbps |
| Network / Transport Protocol | TCP/IP, UDP/IP, iWARP |
| Remote Management Protocol | RMON |
| Features | Switching, VLAN support, manageable, RDMA support, Virtual Machine Device Queues (VMDq), Single Root I/O Virtualization (SR-IOV), Storm Control, RDMA over Converged Ethernet (RoCE) v2, Advanced Packet Filtering, iWARP support, Data Plane Development Kit (DPDK), UEFI Secure Boot, MCTP over SMBus |
| Expansion / Connectivity |
| Interfaces | 4 x 10Gb Ethernet/25Gb Ethernet – SFP28 |
| Miscellaneous | Compliant Standards: UL, VCCI, BSMI, KCC, RoHS 2 (2011/65/EU), IEEE 1588, FCC Subpart B |
| Dimensions & Weight |
| Depth | 6.6 in |
| Height | 4.4 in |
| Environmental Parameters |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 90% (non-condensing) |
| Compatibility Information | Designed For: P/N: UCSC-C220-M6N, UCSC-C220-M6N=, UCSC-C220-M6S, UCSC-C220-M6S-BR, UCSC-C225-M6N, UCSC-C225-M6S, UCSC-C225-M6S=, UCSC-C240-M6L, UCSC-C240-M6L-BR, UCSC-C240-M6N, UCSC-C240-M6N=, UCSC-C240-M6S, UCSC-C240-M6S=, UCSC-C240-M6SN, UCSC-C240-M6SN-BR, UCSC-C240-M6SX, UCSC-C240-M6SX=, UCSC-C240-M6SX-BR, UCSC-C245-M6SX, UCSC-C245-M6SX= |
