Intel Server System M50CYP Family is the primary workhorse server for your mainstream needs, including collaboration, storage, database, web server, ecommerce, analytics, and more.

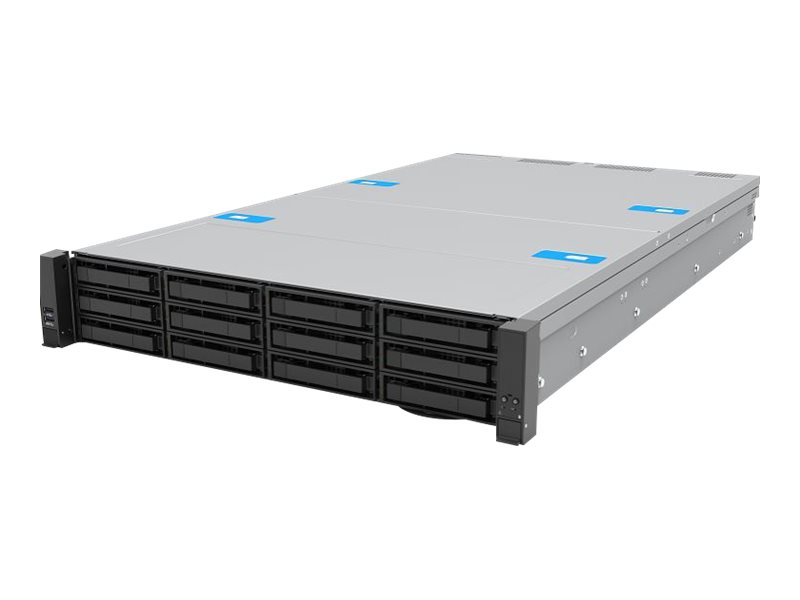

| Product Description | Intel Server System M50CYP2UR312 – rack-mountable – no CPU – 0 GB – no HDD |
| Type | Server – rack-mountable |
| Height (Rack Units) | 2U |
| Processor | No CPU |
| Processor Socket | Socket P4 |
| RAM | 0 GB (installed) / 12 TB (max) – DDR4 SDRAM |
| Storage Controller | RAID |
| Server Storage Bays | Hot-swap 3.5″ |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Dimensions (WxDxH) | 71.2 cm x 43.9 cm x 8.9 cm |
| Manufacturer Warranty | Limited warranty – 3 years |
General
| Type | Server |
| Product Form Factor | Rack-mountable – 2U |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Internal Bays Qty | 2 |
| Hot-Swap Bays Qty | 12 |
Processor / Chipset
| CPU | No CPU |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| CPU Socket | Socket P4 |
| Chipset Type | Intel C621A |
RAM
| Installed Size | 0 GB / 12 TB (max) |
| Technology | DDR4 SDRAM |
| Form Factor | DIMM 288-pin |
| Slots | 32 (Total) |
| Features | Load-Reduced DIMM (LRDIMM) |
Hard Drive
| Type | No HDD |
Storage Controller
| Type | RAID |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
Optical Storage
| Type | No optical drive |
Monitor
| Monitor Type | None. |
Networking
| Remote Management Protocol | IPMI 2.0 |
| Remote Management Controller | Intel Baseboard Management Controller (BMC) |
| Features | Intel Advanced Management Technology |
Expansion / Connectivity
| Bays | 12 (total) / 12 (free) x hot-swap 3.5″ |
| Interfaces | 4 x USB 3.0 (1 front, 3 rear) 1 x USB 2.0 2 x serial |
Miscellaneous
| Included Accessories | Front I/O panel assembly, 16 x DIMM slot blanks, Chassis with Quick Reference Label affixed to top cover, 12 x 3.5″ hot-swap drive carriers, Intel Server Board M50CYP2SBSTD, 2U server airduct, 2 x processor carrier clips, 2U Hot-swap backplane spare CYPHSBP2312, 6 x 2U fan kit CYPFAN2UKIT |
| Cables Included | I2C cable Power splitter cable |
Power
| Device Type | Power supply |
| Installed Qty | 0 |
Manufacturer Warranty
| Service & Support | Limited warranty – 3 years |
Dimensions & Weight
| Width | 71.2 cm |
| Depth | 43.9 cm |
| Height | 8.9 cm |
