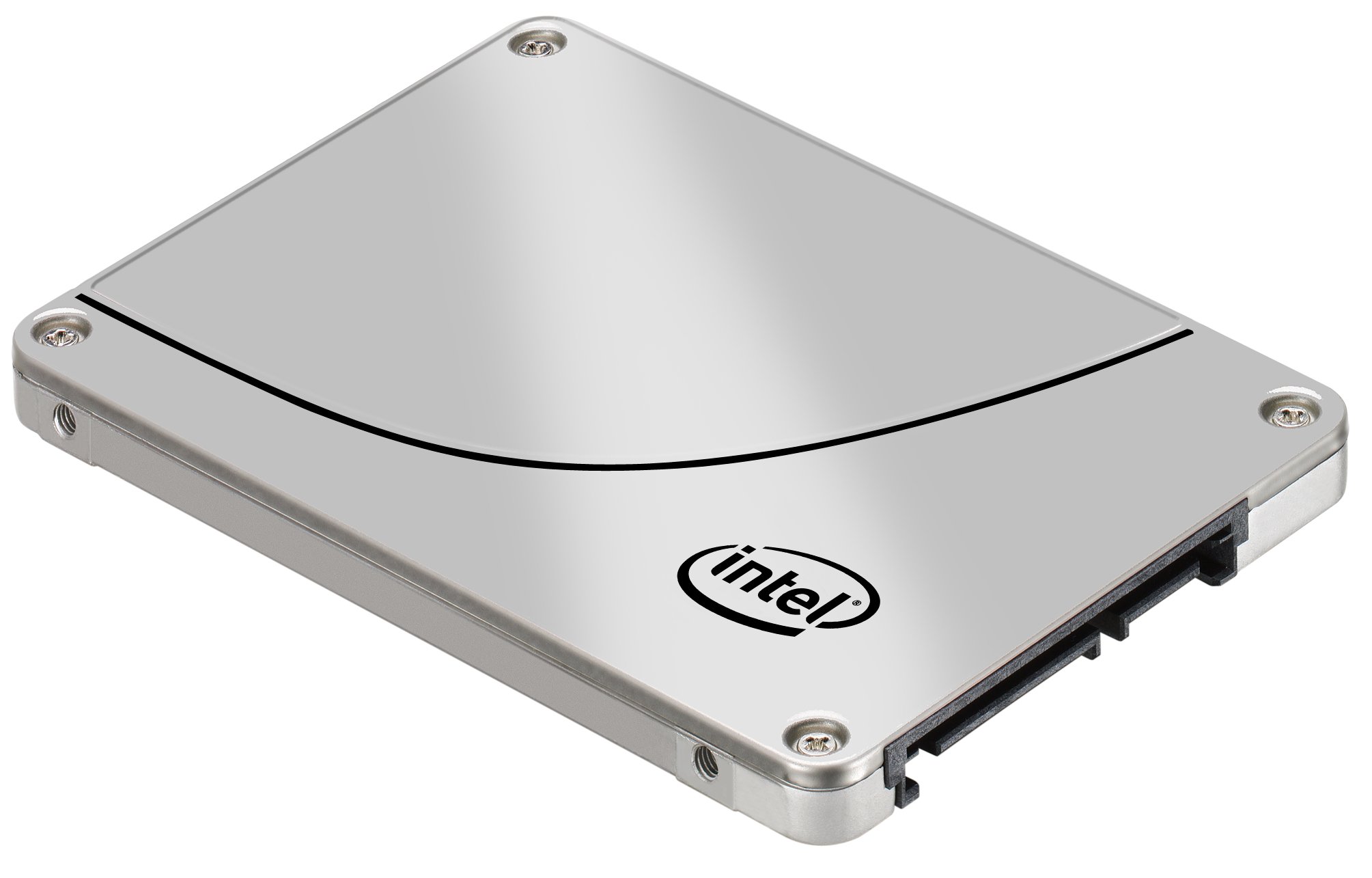

Intel SSDSC1NB240G401 240GB SATA SSD


Capacity:Ā 240GB

Speed:Ā Solid State Memory

Interface Types:Ā SATA

Form Factor:Ā 1.8inx5mm

Sector Size:Ā 512 / 512e

Electrical Interface:Ā SATA 600 – 6.0Gbps

SSD Type:Ā MLC

SSD Endurance DWPD:Ā Consumer / Value

AED1,299.00

Intel SSDSC1NB240G401 / SSDSC1NB240G4 240GB 1.8in 6Gbps DC S3500 Series SATA MLC SSD – Brand New

Intel SSDSC1NB240G401 240GB 1.8″ 6.0 Gbps Data Center S3500 Series Serial Advanced Technology Attachment Multi-Level Cell Solid State Disk Drive – Brand New

Intel Model Number: SSDSC1NB240G4

The Intel® SSD DC S3500 Series combines fast, consistent read performance with strong data protection and low active power levels to provide superior quality of service for video conferencing, big data analytics, or virtual client applications. Consistently low read latencies of 50µs typical (500µs max for 99.9% of the time) along with a tight distribution of up to 75,000 input/output per second (IOPS)1 delivers a high-performance, reliable, and efficient SSD specifically designed for data center application upgrades.

Key features and benefits of this drive include an IntelĀ® 3rd generation controller, industry-leading 20nm multi-level cell (MLC) NAND flash technology, full end-to-end data protection, enhanced power-loss data protection, and a broad range of capacities up to 800GB.


Compatibility:

This drive is compatible with any server that accepts 1.8″ x 5mm SATA drives.

SKU: SSDSC1NB240G401 Category:
Intel Model Number SSDSC1NB240G4
Ordering Part Number SSDSC1NB240G401
Capacity 240GB
Performance
Interface Type SATA
Sequential Read 500 MB/s
Sequential Write 260 MB/s
Random Read (8GB Span) 75000 IOPS
Random Write (8GB Span) 7500 IOPS
Latency – Read 50 µs
Latency – Write 65 µs
Power – Active 3.5W
Power – Idle 0.6W
Vibration – Operating 2.17 Grms
Vibration – Non-Operating 3.13 Grms
Shock (Operating and Non-Operating) 1,000 G/0.5 msec
Operating Temperature Range 0°C to 70°C
Mean Time Between Failures (MTBF) 2,000,000 Hours
Uncorrectable Bit Error Rate (UBER) <1 sector per 10^16 bits read
Physical
Height (in/mm) 0.20/5.0
Weight (lb/g) 0.082/37.0




ROHS Compliant

Alternate MPNs:Ā SSDSC1NB240G4

Weight:Ā 0.5Ā lb
