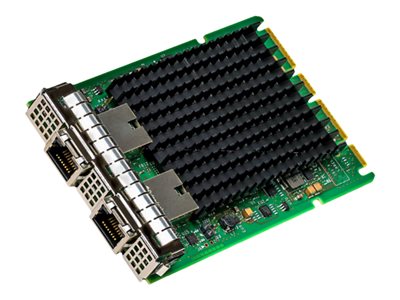

Intel X710-T2L – network adapter – OCP 3.0 – 10 Gigabit Ethernet x 2
Intel X710-T2L – Network adapter – OCP 3.0 low profile – 10 Gigabit Ethernet x 2 – for P/N: APIC-M4, APIC-SERVER-L4=, APIC-SERVER-M4=, ND-CLUSTER-L4, ND-NODE-L4=
AED8,399.00
Simplify technology transitions with the Intel Ethernet Network Adapter X710-T2L for OCP 3.0. Autonegotiation between port speeds provides maximum flexibility for 10GBASE-T configurations. This low-power adapter also supports Energy Efficient Ethernet to efficiently reduce power consumption during periods of low data activity.
The X710-T2L for OCP 3.0 is part of the Intel Ethernet 700 Series, the foundation for server connectivity; providing broad interoperability, critical performance optimizations, and increased agility for Communications, Cloud, and Enterprise IT network solutions.
| Attribute | Specification |
|---|
| General |
| Device Type | Network adapter |
| Form Factor | Plug-in card – low profile |
| Interface (Bus) Type | Open Compute Project mezzanine (OCP) 3.0 |
| PCI Specification Revision | PCIe 3.0 |
| Networking |
| Ports | 10 Gigabit Ethernet x 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet |
| Data Transfer Rate | 10 Gbps |
| Network / Transport Protocol | TCP/IP, UDP/IP, SCTP, IPv4, IPv6 |
| Remote Management Protocol | SNMP, RMON |
| Status Indicators | Link/activity |
| Features | MPLS support, VLAN support, packet filtering, IPv6 support, TCP/IP offloading, QoS, VMDq, IPv4 support, PXE support, RSS, UEFI support, SR-IOV, ALB, checksum offload, MSI-X, UDP/IP offloading, SNMP support, WDT, NC-SI, VXLAN, NVGRE, Intel Flow Director, Advanced Packet Filtering, EEE, DPDK, VMLB, promiscuous mode, GENEVE support |
| Compliant Standards | IEEE 802.1as, IEEE 802.3az, OCP 3.0, FCC Class A certified, VCCI, BSMI, KCC, cULus, Directive 2011/65/EU, RCM, IEEE 1588, EN 62368-1:2014, UL 62368-1, Directive 2015/863/EU, CAN/CSA-C22.2 No. 62368-1-14 |
| Expansion / Connectivity |
| Interfaces | 2 x 100M/1G/10 Gigabit Ethernet – RJ-45 |
| Miscellaneous |
| Dimensions & Weight |
| Width | 4.5 in |
| Depth | 3 in |
| Environmental Parameters |
| Humidity Range Operating | 90% (non-condensing) |
| Compatibility Information |
| Designed For | P/N: APIC-CLUSTER-L4, APIC-CLUSTER-M4, APIC-L4, APIC-M4, APIC-SERVER-L4=, APIC-SERVER-M4=, ND-CLUSTER-L4, ND-NODE-L4= |
