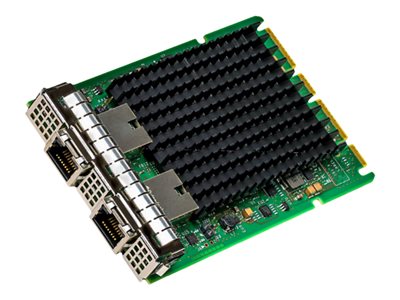

Intel X710-T2L – network adapter – OCP 3.0 – 100M/1G/2.5G/5G/10 Gigabit Ethernet x 2

Add to Wishlist

Intel X710-T2L – Network adapter – OCP 3.0 – 100M/1G/2.5G/5G/10 Gigabit Ethernet x 2 – for P/N: FMC1700-K9, FMC2700-K9, FMC4700-K9

AED8,399.00

Add to Wishlist

Simplify technology transitions with the Intel Ethernet Network Adapter X710-T2L for OCP 3.0. Autonegotiation between port speeds provides maximum flexibility for 10GBASE-T configurations. This low-power adapter also supports Energy Efficient Ethernet to efficiently reduce power consumption during periods of low data activity.

The X710-T2L for OCP 3.0 is part of the Intel Ethernet 700 Series, the foundation for server connectivity; providing broad interoperability, critical performance optimizations, and increased agility for Communications, Cloud, and Enterprise IT network solutions.

SKU: FMC-M6-O-ID10GC 1 Category: Tag:
General
Device Type Network adapter
Form Factor Plug-in card
Interface (Bus) Type Open Compute Project mezzanine (OCP) 3.0
PCI Specification Revision PCIe 3.0
Networking
Ports 100M/1G/2.5G/5G/10 Gigabit Ethernet x 2
Connectivity Technology Wired
Cabling Type Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 10GBase-T, Ethernet 2.5GBase-T, Ethernet 5GBase-T
Data Link Protocol Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet
Data Transfer Rate 10 Gbps
Capacity VLAN tags: up to 4096, Virtual functions: up to 128
Network / Transport Protocol TCP/IP, UDP/IP, SCTP, IPv4, IPv6
Remote Management Protocol SNMP, RMON
Status Indicators Link/activity/speed
Features Load balancing, VLAN support, packet filtering, Quality of Service (QoS), Virtual Machine Device Queues (VMDq), PXE support, Receive Side Scaling (RSS), UEFI support, Single Root I/O Virtualization (SR-IOV), checksum offload support, Extended Message-Signaled Interrupts (MSI-X), Watch Dog Timer (WDT), Network Controller Sideband Interface (NC-SI), Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), Intel Flow Director, Flexible Port Partitioning (FPP), intelligent offloads, Message Signaled Interrupts (MSI), Advanced Packet Filtering, Energy-Efficient Ethernet (EEE), Data Plane Development Kit (DPDK), Network Function Virtualization (NFV), VM Load Balancing (VMLB), GENEVE support, I/O Virtualization (IOV), Dynamic Device Personalization (DDP), Multiprotocol Label Switching (MPLS), Adaptive Virtual Function, VxLAN-GPE with Network Service Headers (NSH), Enhanced Network Virtualization Overlays (NVO)
Compliant Standards IEEE 802.1as, IEEE 802.3az, OCP 3.0
Processor / Memory
Processor 1 x Intel X710-AT2
Expansion / Connectivity
Interfaces 2 x 100M/1G/10 Gigabit Ethernet – RJ-45
Miscellaneous
Compliant Standards FCC Class A certified, VCCI, BSMI, RoHS, KCC, cULus, Directive 2011/65/EU, RCM, IEEE 1588, EN 62368-1:2014, UL 62368-1, Directive 2015/863/EU, CAN/CSA-C22.2 No. 62368-1-14
Dimensions & Weight
Depth 4.5 in
Height 3 in
Compatibility Information
Designed For P/N: FMC1700-K9, FMC2700-K9, FMC4700-K9
