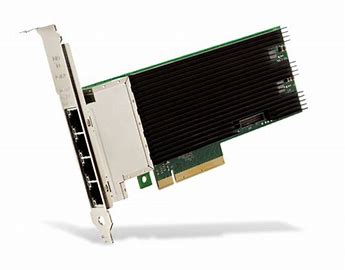

Intel X710-T4L – network adapter – PCIe 3.0 x8 – 10Gb Ethernet x 4
Intel X710-T4L – Network adapter – PCIe 3.0 x8 low profile – 10Gb Ethernet x 4 – for ThinkSystem SR250 V2 7D7Q, 7D7R; ST250 V2 7D8F, 7D8G
AED5,399.00
| Category | Details |
|---|
| General |
| Device Type | Network adapter |
| Form Factor | Plug-in card – low profile |
| Interface (Bus) Type | PCI Express 3.0 x8 |
| Networking |
| Ports | 10Gb Ethernet x 4 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10GBase-T |
| Data Link Protocol | 10 Gigabit Ethernet |
| Data Transfer Rate | 10 Gbps |
| Capacity | Virtual functions: 128 | Jumbo frame size: 9728 | VLAN tags: 4096 |
| Remote Management Protocol | RMON |
| Features | Flow control, Quality of Service (QoS), Virtual Machine Device Queues (VMDq), Large Send Offload (LSO), Single Root I/O Virtualization (SR-IOV), Link Aggregation Control Protocol (LACP), adaptive load balancing (ALB), Class of Service (CoS), Extended Message-Signaled Interrupts (MSI-X), TCP/IP checksum offload, UDP/IP checksum offload, Virtual Ethernet Port Aggregator (VEPA), Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), TLP Processing Hint (TPH), Energy-Efficient Ethernet (EEE), Intel Virtual Technology (VT), Switch Fault Tolerance (SFT), Adapter Fault Tolerance (AFT), VLAN Tagging, VM Load Balancing (VMLB), GENEVE support, NetQueue |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1Qbg, IEEE 802.1Qbh |
| Expansion / Connectivity |
| Interfaces | 4 x 10GBase-T |
| Miscellaneous |
| Included Accessories | Low-profile bracket |
| Compliant Standards | RoHS |
| Dimensions & Weight |
| Width | 0.6 in |
| Depth | 6.6 in |
| Height | 2.7 in |
| Environmental Parameters |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Humidity Range Operating | 10 – 90% (non-condensing) |
| Compatibility Information |
| Designed For | Lenovo ThinkSystem SR250 V2 7D7Q, 7D7R | Lenovo ThinkSystem ST250 V2 7D8F, 7D8G |
