Intelix 3-Input 40W Class-D Speaker Amplifier

Add to Wishlist

AED2,399.00

Add to Wishlist

The 3-Input 40W Class-D Speaker Amplifier from Intelix features 70 or 100V outputs. The amplifier features two analog audio inputs, one digital audio input, and a balanced microphone input with ducking functions. Additional features of the amplifier includes input and microphone volume control, bass and treble adjustments, microphone mixing with source audio, and three modes of microphone input support (48 dB gain, 48 dB gain with 48V phantom power, and line level). The speaker amplifier has three methods of control such as push button, RS-232, and IR with the AUD-340-IR accessory kit (sold separately).

SKU: AUD-340 Category: Tag:
I/O Connections
Analog Inputs
2 x RCA connectors
1 x 3.5 mm TRS connector
Digital Input
1 x EIAJ optical connector
Microphone Input
1 x 3-Pole / 3.5 mm Euroblock
Control

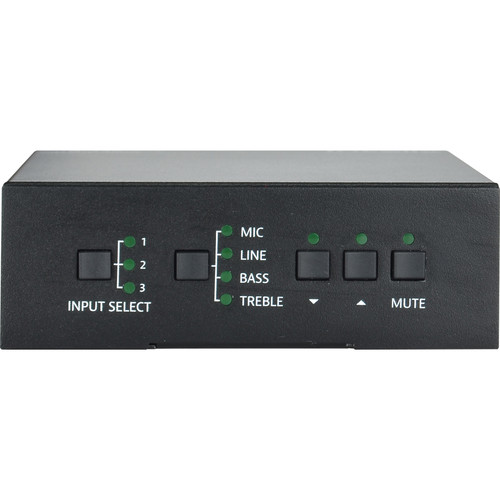

Front Panel: Push button
Rear Panel: RS232 via 1 x 3-Pole / 3.5 mm Euroblock, IR via 1 x 3.5 mm TRS connector
RS232
ID Selector: 1 x 16-position rotary switch
Signal Type
Selector: 1 x 3-position slider switch
Speaker Output
70 or 100 V: 1 x 3-Pole / 3.5 mm Euroblock
Power
1 x Locking barrel (5.5 mm OD, 2.1 mm ID)
Audio Performance
Analog Input Impedance
> 10 kOhms
Output Type
Constant voltage at 70 or 100 V
Maximum Power Output
40 W
Frequency Response
120 Hz to 20 kHz
Common Mode Rejection Ratio
>70 dB at 20 Hz to 20 kHz
Signal to Noise Ratio (SNR)
80 dB maximum
THD+N
1% at 1 kHz; 0.3% at 20 kHz at nominal level
Voltage Gain
26 dB
Power
Power Consumption
Minimum: 5 W
Maximum: 45 W
Power Supply Input Voltage
100 to 240 VAC at 50/60 Hz at 0.5 A
Power Supply Output
24 VDC at 2 A
Regulatory
ESD Protection
15 kV
Regulatory
Device: CE, RoHS
Power Supply: CE, RoHS, TUV, UL, SGS
Environmental and Mechanical
Operating Temperature
32 to 104°F (0 to 40°C)
Operating Humidity
20 to 90%, non-condensing
Storage Temperature
14 to 140°F (-10 to 60°C)
Storage Humidity
20 to 90%, non-condensing
Enclosure
Painted aluminum
Dimensions
1.7 x 5.12 x 5.7″ (4.3 x 13 x 14 cm)
Weight
Not Specified by Manufacturer
