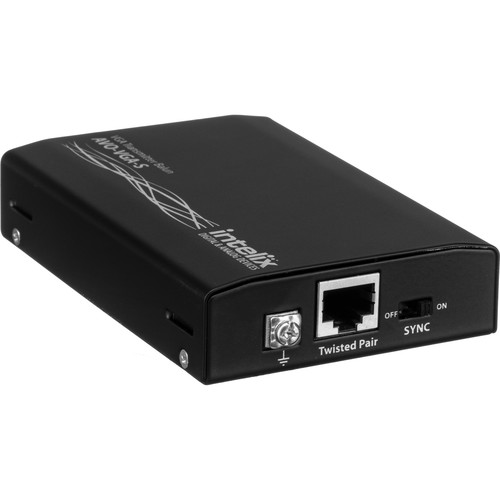

The AVO-VGA Passive VGA Balun from Intelix is a passive VGA balun with integrated skew correction which can transmit VGA signals via cost-effective Cat-5 cable over 450′, making it ideal for a variety of applications.
| Inputs/Outputs | Transmitter: 1 x DE-15/DB-15 (VGA)Input 1 x RJ45 (Ethernet)Output Receiver: 1 x RJ45 (Ethernet)Input 1 x DE-15/DB-15 (VGA)Output |
| Maximum Transmission Distance | 450′ / 137.2 m |
| Impedance | 100 Ohms (Video) |
| Bandwidth | 60 MHz |
| Signal Level | 1.1 Vp-p (Video) |
| Dimensions | 4.3 x 2.5 x 1.0″ / 109.2 x 63.5 x 25.4 mm |
| Package Weight | 1.26 lb |
| Box Dimensions (LxWxH) | 8.35 x 8.35 x 2.05″ |
