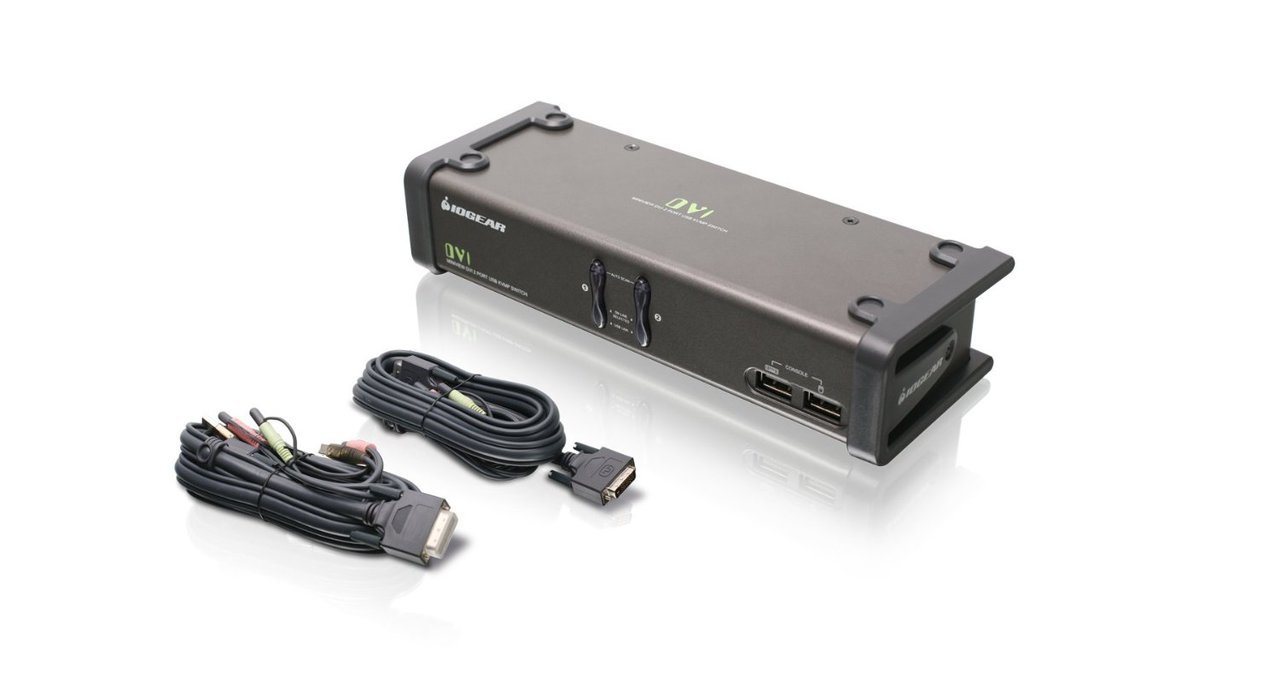

IOGEAR 2-Port DVI KVMP Switch with Cable GCS1102 (Black)

Availability:

30 in stock


AED799.00

30 in stock

IOGEAR 2-Port DVI KVMP Switch with Cable GCS1102 (Black)



  • One console controls 2 USB DVI computers
  • Single link DVI resolutions up to 1920×1200 at 60Hz;DDC2B
  • 2-Port USB 2.0 hub for peripherals sharing
  • IOGEAR’s Display Emulation Technology reads and remembers the monitor’s parameters
  • 2.1 Stereo audio and microphone support

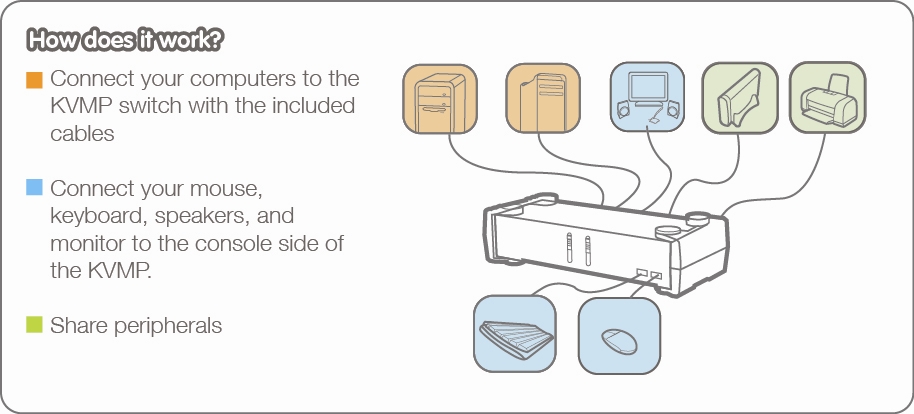

The IOGEAR DVI KVMP Switch GCS1102 charts a revolutionary new direction in KVM switch functionality by providing an interface for today’s digital monitors while integrating a 2-port USB KVM switch with USB 2.0 peripheral sharing capabilities. As a KVM switch, the unit allows the user to access two computers from a single USB keyboard, USB mouse, and monitor, and also share among the computers USB 2.0 peripherals such as external hard drives, printers and scanners.

The GCS1102’s independent (asynchronous) switching feature allows the KVM focus to be on one computer while the USB peripheral focus is on another. The user can switch from one computer to another without interrupting print jobs, downloads or other functions being handled by connected peripherals. This eliminates the need to purchase a separate USB hub as well as the need to purchase separate stand-alone peripheral sharers – such as printer servers, modem splitters, etc. The GCS1102 further improves on previous designs with DVI (Digital Video Interface) connectors, and the transfer of keyboard and mouse data to the computers via a fast, reliable USB connection. DVI supports both digital input (flat panel displays, data projectors, plasma displays, digital TVs and set-top boxes) and analog video input (traditional monitors and TVs).

IOGEAR’s Display Emulation Technology* reads and remembers the monitor’s parameters (EDID) so there is no delay or change of video resolution when switching between, or booting computers.(*IOGEAR’s Display Emulation Technology provides the EDID support for Windows 7)

Ā

  • newegg 2-Port DVI KVMP Switch w/ 2-port USB 2.0 hub The Iogear GCS1102 KVMP Switch allows you to access two computers from a single USB keyboard, USB mouse, and monitor. Its power-On detection function automatically switches to the next powered-on computer when the other is turned off. 2-port USB 2.0 hub connects to USB peripherals such as external hard drives, printers and scanners. Independent (Asynchronous) Hotkey switching is available between KVM focus, USB peripherals, and audio ports (2.1 Stereo audio and microphone support).
  • newegg AutoScan With the AutoScan feature, scan and monitor the activities of all operating computers connected to the Iogear GCS1102 KVMP Switch.
  • newegg Multi-platform Support The Iogear GCS1102 KVMP Switch supports multiple platforms including Windows and Mac computers, Sun Solaris workstations, as well as Linux, UNIX and other USB supported operating systems (Additional drivers and support may be needed).
  • newegg IOGEAR’s Emulation Technology IOGEAR’s Display Emulation Technology (for Windows 7) reads and remembers the monitor’s parameters (EDID) so there is no delay or change of video resolution when switching between, or booting computers. And, the complete keyboard emulation allows error-free boot-up and instantaneous recognition during switching
  • newegg Easy to Use The Iogear GCS1102 KVMP is hot pluggable, and plug-n-play for ease of use. Switching between computers is simple via front panel or hotkeys.



Model

Brand
IOGEAR
Model
GCS1102

Spec

Type
DVI, USB
PC Connectors
Monitor: 2 x DVI-I ports (female)
Microphone: 2 x Microphone jack
Audio: 2 x Stereo earphone jack
Keyboard & Mouse: 2 x USB Type B sockets
Console Connectors
Mouse 1 x USB Type A socket
Keyboard 1 x USB Type A socket
Monitor 1 x DVI-I (female) port
Microphone 1 x Microphone jack
Audio 1 x Stereo earphone jack
Computer Connections
2 Ports
Monitor Connections
1 Port
Video Resolution
Up to 1920 x 1200; DDC2B
PC Selection
Front Panel Switches; Hotkey
AutoScan Interval
1-99 secs (default: 5 secs)
LED Indicators
Selected: 2 x Orange
On Line: 2 x Orange
USB Peripherals: 2 x Green
Dimensions
8.5″ x 2″ x 3.25″
Weight
4.34 lbs.

Features

Features
One console controls 2 USB DVI computers
Single link DVI resolution up to 1920 x 1200 @ 60Hz; DDC2B
2-port USB 2.0 hub for peripherals sharing
IOGEAR’s Display Emulation Technology reads and remembers the monitor’s parameters (EDID) so there is no delay or change of video resolution when switching between, or booting computers
Independent (Asynchronous) Hotkey switching between KVM focus, USB peripherals, and audio ports
2.1 Stereo audio and microphone support
Computer selection via front panel switches or hotkeys
LED display for easy status monitoring
Auto Scan Mode – For monitoring all computers
Complete keyboard emulation for error free booting
Hot Pluggable – Add or remove computers for maintenance without powering down the switch
Supports Windows and Mac host systems
Power-On Detection – Automatically switches to the next powered-on computer when the other is turned off
USB Firmware upgradeable
Plug & Play – No software installation required
SKU: GCS1102 Categories: , Tags: , ,
Weight 0.772 kg
