Cisco ISR 4221 SEC Bundle with SEC lic

Add to Wishlist
Model: Cisco ISR 4221 SEC Bundle with SEC lic
Detail:
35Mbps-75Mbps system throughput, 2 WAN/LAN ports, 1 SFP port, multi-Core CPU,2 NIM, SEC Bundle with SEC lic

Product Code

Cisco ISR4221-SEC/K9

Bundle

Cisco ISR 4221 SEC Bundle with SEC lic

Aggregate Throughput

35 Mbps to 75 Mbps

Total onboard WAN or LAN 10/100/1000 ports

2

RJ-45-based ports

2

SFP-based ports

1

NIM (Network Interface Modules) slots

2

Onboard ISC slot

No

Default memory double-data-rate 3 (DDR3) error-correction-code

(ECC) DRAM (Combined control/services/data planes)

4 GB

Flash Memory

8 GB

Power-supply options

External AC only

Rack height

1 RU

Dimensions (H x W x D)

1.72 x 12.7 x 10 in (43.7 x 322.6 x 254 mm)

Weight with AC PS (no modules)

7.1 lb (3.22 kg)

16,099.00 د.إ

Add to Wishlist

ISR4221-SEC/K9 is the Cisco 4221 Integrated Services router is design to deliver advanced services to the small enterprise branch environment. It bundles Security Bundle with Security License.

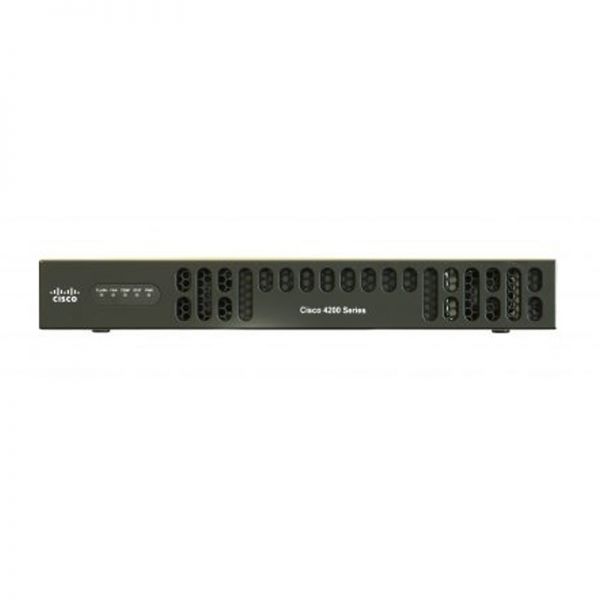

Figure 1 shows the LEDs on the front panel of the Cisco ISR4221-SEC/K9.

CISCO ISR4221-SEC-K9 Front Panel

Ā·There are 4 LEDs on the front panel.

Figure 2 shows the back panel of Cisco ISR4221-SEC/K9.

CISCO ISR4221-SEC-K9 Back Panel

Note:

ā‘

GE 0/0/0 RJ-45 (copper cable) port

ā‘¤

Console port

ā‘”

Power switch

ā‘„

GE 0/0/1 (copper cable) port

ā‘¢

Power input connector

ā‘¦

GE 0/0/0 SFP (fiber-optic) port

ā‘£

GE ā€œMGMTā€ port (with USB port below)

ā‘§

NIM slots

Figure 3 shows the Security License function.

Security Bundle Functions

The Modules & Cards

Table 2 shows some recommended modules and cards.

Items

Models

Description

Console and Auxillary Cables

 CAB-CONSOLE-RJ45 CiscoĀ CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F

Network Interface Modules

NIM-1MFT-T1/E1

Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module

NIM-ES2-4

Cisco 4000 Series Integrated Services Router 4-Port Gigabit Ethernet Switch Module layer 2

NIM-ES2-8

Cisco 4000 Series Integrated Services Router 8-Port Gigabit Ethernet Switch Module NIM

SFPs for On-Board GE Ports

GLC-LH-SMD

Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM

GLC-ZX-SMD

Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM

GLC-SX-MMD

Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM

Compare to Similar Items

Table 3 shows the comparison.

Models

ISR4221/K9

ISR4221-SEC/K9

Bundle

N/A

Cisco ISR 4221 SEC Bundle with SEC lic

Aggregate Throughput

35 Mbps to 75 Mbps

35 Mbps to 75 Mbps

Total onboard WAN or

LAN 10/100/1000 ports

2

2

RJ-45-based ports

2

2

SFP-based ports

1

1

NIM slots

2

2

Rack height

1

1
Category:

Cisco ISR4221-SEC/K9 Specification

Bundle

Cisco ISR 4221 SEC Bundle with SEC lic

Aggregate Throughput

35 Mbps to 75 Mbps

Total onboard WAN or LAN 10/100/1000 ports

2

RJ-45-based ports

2

SFP-based ports

1

Enhanced service-module slots

0

Doublewide service-module slots

0

NIM slots

2

OIR (all I/O modules)

No

Onboard ISC slot

No

Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM

(Combined control/services/dataĀ planes)

4 GB

Maximum memory DDR3 ECC DRAM (Combined control/services/data planes)

4 GB

Default memory DDR3 ECC DRAM (data plane)

NA

Maximum memory DDR3 ECC DRAM (data plane)

NA

Default memory DDR3 ECC DRAM (control/services plane)

NA

Maximum memory DDR3 ECC DRAM (control/services plane)

NA

Default flash memory

8 GB

Maximum flash memory

8 GB

External USB 2.0 slots (type A)

1

USB console port -type B mini (up to 115.2 kbps)

0

Serial console port – RJ45 (up to 115.2 kbps)

1 (combo CON/AUX port)

Serial auxiliary port – RJ45

(up to 115.2 kbps)

1 (combo CON/AUX port)

Power-supply options

External: AC Only

Redundant power supply

N/A

AC input voltage

100 to 240 VAC autoranging

AC input frequency

47 to 63 Hz

AC input current range, AC power supply (maximum)

1.5 to 0.6A

AC input surge current

90 A peak and less than 3 Arms per half cycle

Typical power (no modules) (watts)

24

Maximum power with AC power supply (watts)

90

Maximum power with PoE power supply (platform only) (watts)

NA (no PoE support)

Maximum endpoint PoE power available from PoE power supply (watts)

NA (no PoE support)
