Cisco ISR 4431 Security router (2GE,2NIM,1SM,4G FLASH,4G DRAM,Advanced Security)

Add to Wishlist
Model: Cisco ISR 4431 Security router (2GE,2NIM,1SM,4G FLASH,4G DRAM,Advanced Security)
Detail:
500Mbps-1Gbps system throughput, 4 WAN/LAN ports, 4 SFP ports, multi-Core CPU, Dual-power, Security, Voice, WAAS
Product Code Cisco ISR4431-SEC/K9
Bundle Security Bundle
Aggregate Throughput 500 Mbps to 1 Gbps
Total onboard WAN or LAN 10/100/1000 ports 4
RJ-45-based ports 4
SFP-based ports 4
Enhanced service-module (SM-X) slot 0
NIM (Network Interface Modules) slots 3
Onboard ISC slot 1
DDRM (data plane) 2 GB (default) / 2 GB (maximum)
DDRM (control/services plane) 4 GB (default) / 16 GB (maximum)
Flash Memory 8 GB (default) / 32 GB (maximum)
Power-supply options Internal: AC, DC, and PoE
Rack height 1 RU
Dimensions (H x W x D) 43.9 x 438.15 x 507.2 mm
Package Weight 20.88 Kg

102,299.00 د.إ

Add to Wishlist

Cisco ISR4431-SEC/K9 is the Cisco ISR4431/k9 router with Security Bundle. Its other specifications are the same as ISR4431/k9.

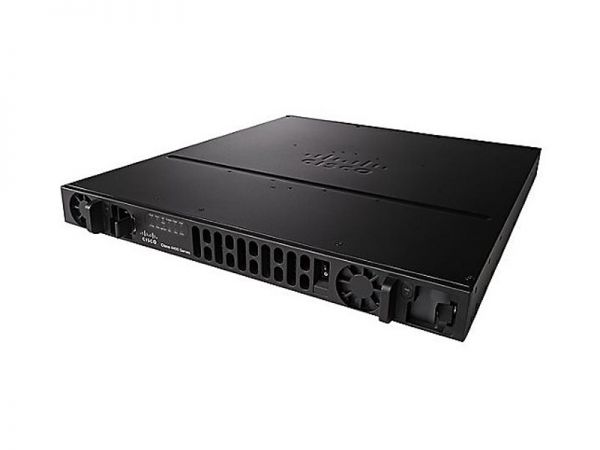

Figure 1 shows the appearance of Cisco ISR4431-SEC/K9.

CISCO ISR4431-SEC/K9

Figure 2 shows the front panel of Cisco ISR4431-SEC/K9.

CISCO ISR4431-SEC/K9 Front Panel

Note:

ā‘  Power supply unit ā‘¢ Router power On/Off switch
ā‘” LEDs ā‘£ Optional power supply unit

Ā· LEDs include 12 indicators: PSU0, PSU1, GE/POE, FLASH, TEMP, PWR, POE0, POE1, BOOST, ISC, FAN, and STAT.

Figure 3 shows the back panel of Cisco ISR4431-SEC/K9.

CISCO ISR4431-SEC/K9 Back Panel

Note:

ā‘  GE management port ā‘¤ Console port
ā‘” Auxiliary port ā‘„ GE Ports
ā‘¢ USB Type A port ā‘¦ NIM Slots
ā‘£ USB Type B mini port

Ā· The NIMs support 2 single-wide or 1 double-wide.

Ā· The GE Ports include 4 RJ45 ports and 4 SFP ports.

Figure 4 shows the Security Bundle Functions.

Security Bundle Functions

The Modules, Cards and Accessories

Table 2 shows some recommended modules, cards and accessories of Cisco ISR4431-SEC/K9.

Items

Models

Descriptions

Console and Auxillary Cables

CAB-AUX-RJ45

Cisco CAB-AUX-RJ45 Auxiliary Cable 8ft with RJ45 and DB25M

CAB-ETH-S-RJ45

Cisco Router Cable CAB-ETH-S-RJ45

CAB-CONSOLE-RJ45

Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F

CAB-CONSOLE-USB

Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B

Network Interface Modules

NIM-1MFT-T1/E1

Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module

NIM-2CE1T1-PRI

Cisco Multiflex Trunk Voice and WAN network interface module

NIM-4E/M

Analog voice network interface card (ear and mouth)

NIM-2FXS

Cisco Analog voice network interface card NIM-2FXS

NIM-2FXS/4FXO

Cisco Analog voice network interface card NIM-2FXS/4FXO

NIM-8MFT-T1/E1

Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module

SFPs for On-Board GE Ports

GLC-SX-MMD

Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM

GLC-LH-SMD

Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM

GLC-ZX-SMD

Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM

Compare to Similar Items

Table 3 shows the comparison between tow similar items.

Models ISR4431/K9 ISR4431-SEC/K9
Bundle None Security Bundle
Aggregate Throughput 500 Mbps to 1 Gbps 500 Mbps to 1 Gbps
Total onboard WAN or

LAN 10/100/1000 ports

 4 4
RJ-45-based ports 4 4
SFP-based ports 4 4
Enhanced service-module slots 0 0
NIM slots 3 3
Onboard ISC slot 1 1
Rack height 1 1

Category:

Cisco ISR4431-SEC/K9 Specification
Type Cisco ISR4431/K9 with Security Bundle
Aggregate Throughput 500Mbps to 1Gbps
Total onboard WAN or LAN 10/100/1000 ports 4
RJ-45-based ports 4
SFP-based ports 4
Enhanced service-module slots 0
Doublewide service-module slots 0
NIM slots 3
OIR (all I/O modules) Yes
Onboard ISC slot 1
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM

(Combined control/services/dataĀ planes)

 NA
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) NA
Default memory DDR3 ECC DRAM (data plane) 2 GB
Maximum memory DDR3 ECC DRAM (data plane) 2 GB
Default memory DDR3 ECC DRAM (control/services plane) 4 GB
Maximum memory DDR3 ECC DRAM (control/services plane) 16 GB
Default flash memory 8 GB
Maximum flash memory 32 GB
External USB 2.0 slots (type A) 2
USB console port -type B mini (up to 115.2 kbps) 1
Serial console port – RJ45 (up to 115.2 kbps) 1
Serial auxiliary port – RJ45Ā (up to 115.2 kbps) 1
Power-supply options Internal: AC, DC, and PoE
Redundant power supply Internal: AC, DC, and PoE
AC input voltage 100 to 240 VAC autoranging
AC input frequency 47 to 63 Hz
AC input current range, AC power supply (maximum) 3 to 1.3A
AC input surge current 60 A peak and less than 5 Arms per half cycle
Typical power (no modules) (watts) 65
Maximum power with AC power supply (watts) 250 (no PoE)
Maximum power with PoE power supply (platform only) (watts) 500 with PoE redundant
Maximum endpoint PoE power available from PoE power supply (watts) 250 W with optional redundancy
