ISR4431-VSEC/K9 – Cisco Router 4000 Series
| Model: | ISR4431-VSEC/K9 – Cisco Router 4000 Series |
| Detail: |
Cisco ISR 4431 Bundle with UC & Sec Lic. PVDM4-64. CUBE-25
|
| Aggregate Throughput | 500 Mbps to 1 Gbps |
| Total onboard WAN or LAN 10/100/1000 ports | 4 |
| RJ-45-based ports | 4 |
| SFP-based ports | 4 |
| Enhanced service-module (SM-X) slot | 0 |
| NIM (Network Interface Modules) slots | 3 |
| Onboard ISC slot | 1 |
| DDRM (data plane) | 2 GB (default) / 2 GB (maximum) |
| DDRM (control/services plane) | 4 GB (default) / 16 GB (maximum) |
| Flash Memory | 8 GB (default) / 32 GB (maximum) |
| Power-supply options | Internal: AC, DC, and PoE |
| Rack height | 1 RU |
| Dimensions (H x W x D) | 43.9 x 438.15 x 507.2 mm |
AED135,699.00
Cisco 4431 Integrated Services Router, which supports 3 Network Interface Modules (NIM) slots, delivers 500 Mbps to 1 Gbps aggregate throughput. This router also supports two kinds of DDRM, data plane and control/services plane, which make administrator easy to manage the router. ISR4431-VSEC/K9 is theĀ Cisco ISR 4431 Bundle with UC & Sec Lic. PVDM4-64. CUBE-25.

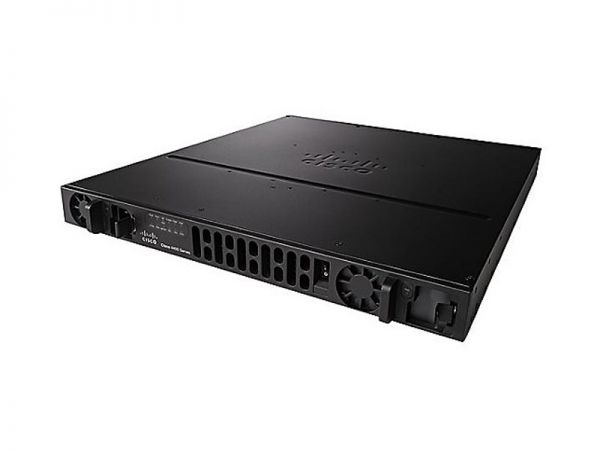

Figure 1 shows the appearance of Cisco ISR4431/K9 for reference. ISR4431-VSEC/K9 is similar with it.
Figure 2 shows the front panel of Cisco ISR4431/K9Ā for reference. ISR4431-VSEC/K9 is similar with it..
Note:
| ā | Power supply unit | ā¢ | Router power On/Off switch |
| ā” | LEDs | ā£ | Optional power supply unit |
Ā·LEDs include 12 indicators.
Figure 3 shows the back panel of Cisco ISR4431/K9Ā for reference. ISR4431-VSEC/K9 is similar with it..
Note:
| ā | GE management port | ā¤ | Console port |
| ā” | Auxiliary port | ā„ | GE Ports |
| ā¢ | USB Type A port | ā¦ | NIM Slots |
| ā£ | USB Type B mini port | ||
Ā·The NIMs support 2 single-wide or 1 double-wide.
Ā·The GE Ports include 4 RJ45 ports and 4 SFP ports.
Table 2.Ā Voice Security Bundle Features Table
| Authentication and Encryption Features |
ā¢ Media encryption of voice RTP streams using SRTP
ā¢ Exchange of RTP Control Protocol (RTCP) information using secure RTCP ā¢ SRTP to RTP fallback for calls between secure and insecure endpoints ā¢ Secure calls supported in Cisco Unified Survivable Remote Site Telephony (SRST) mode during WANĀ failover ā¢ Compressed RTP (CRTP) supported with media encrypted calls using SRTP |
| Authentication and Encryption Algorithm |
ā¢ Supports AES-128 encryption algorithm
ā¢ Supports the HMAC secure hash authentication algorithm (SHA 1) |
| Signaling Authentication andĀ EncryptionĀ Features | ā¢ Gateway to Cisco Unified Communications Manager signaling and encryption uses IPSec for Media Gateway Control Protocol (MGCP), H.323 and SIP gateways
ā¢ IP phone to Cisco Unified Survivable Remote Site Telephony router signaling and encryption uses TLS |
| Protocol Support | ā¢ MGCP 0.1 (supports MGCP gateways with Cisco Unified Communications Manager)
ā¢ H.323 (supported on H.323 gateways and CUBE; Cisco Unified Communications Manager interoperability isĀ optional) ā¢ Session Initiation Protocol (SIP) ā¢ SCCP (Cisco Unified IP Phone) in SRST mode |
| Module Support | ā¢ Any module that has PVDM2, PVDM3 and/or built-in DSP |
| Codec Support | ā¢ G.711, G.729A, and G.729 |
The Modules, Cards, Licenses & Accessories
Table 3 shows some recommended modules, cards, licenses and several cables.
| Items | Models | Descriptions |
| Console and Auxillary Cables | CAB-AUX-RJ45 | Cisco CAB-AUX-RJ45 Auxiliary Cable 8ft with RJ45 and DB25M |
| CAB-ETH-S-RJ45 | Cisco Router Cable CAB-ETH-S-RJ45 | |
| CAB-CONSOLE-RJ45 | Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F | |
| CAB-CONSOLE-USB | Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B | |
| Licenses | L-SL-44-APP-K9= | Cisco ISR 4431/4451 AppX license L-SL-44-APP-K9= with WAAS/vWAAS 1300/2500 conns RTU |
| Network Interface Modules | NIM-1MFT-T1/E1 | Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module |
| NIM-2CE1T1-PRI | Cisco Multiflex Trunk Voice and WAN network interface module | |
| NIM-4E/M | Analog voice network interface card (ear and mouth) | |
| NIM-2FXS | Cisco Analog voice network interface card NIM-2FXS | |
| NIM-2FXS/4FXO | Cisco Analog voice network interface card NIM-2FXS/4FXO | |
| NIM-8MFT-T1/E1 | Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module | |
| SFPs for On-Board GE Ports | GLC-SX-MMD | Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
| GLC-LH-SMD | Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM | |
| GLC-ZX-SMD | Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM |
Compare to Similar Items
Table 4 shows the comparison chart.
|
Models |
ISR4431-VSEC/K9 |
|
|
Aggregate Throughput |
500 Mbps to 1 Gbps |
500 Mbps to 1 Gbps |
|
Total onboard WAN or LAN 10/100/1000 ports |
4 |
4 |
|
RJ-45-based ports |
4 |
4 |
|
SFP-based ports |
4 |
4 |
|
Enhanced service-module slots |
0 |
0 |
|
NIM slots |
3 |
3 |
|
Onboard ISC slot |
1 |
1 |
|
Rack height |
1 |
1 |
ISR4431-VSEC/K9 Specification |
|
| Description | Cisco ISR 4431 Bundle with UC & Sec Lic. PVDM4-64. CUBE-25 |
| Aggregate Throughput | 500Mbps to 1Gbps |
| Total onboard WAN or LAN 10/100/1000 ports | 4 |
| RJ-45-based ports | 4 |
| SFP-based ports | 4 |
| Enhanced service-module slots | 0 |
| Doublewide service-module slots | 0 |
| NIM slots | 3 |
| OIR (all I/O modules) | Yes |
| Onboard ISC slot | 1 |
| Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM
(Combined control/services/dataĀ planes) |
NA |
| Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | NA |
| Default memory DDR3 ECC DRAM (data plane) | 2 GB |
| Maximum memory DDR3 ECC DRAM (data plane) | 2 GB |
| Default memory DDR3 ECC DRAM (control/services plane) | 4 GB |
| Maximum memory DDR3 ECC DRAM (control/services plane) | 16 GB |
| Default flash memory | 8 GB |
| Maximum flash memory | 32 GB |
| External USB 2.0 slots (type A) | 2 |
| USB console port -type B mini (up to 115.2 kbps) | 1 |
| Serial console port – RJ45 (up to 115.2 kbps) | 1 |
| Serial auxiliary port – RJ45Ā (up to 115.2 kbps) | 1 |
| Power-supply options | Internal: AC, DC, and PoE |
| Redundant power supply | Internal: AC, DC, and PoE |
| AC input voltage | 100 to 240 VAC autoranging |
| AC input frequency | 47 to 63 Hz |
| AC input current range, AC power supply (maximum) | 3 to 1.3A |
| AC input surge current | 60 A peak and less than 5 Arms per half cycle |
| Typical power (no modules) (watts) | 65 |
| Maximum power with AC power supply (watts) | 250 (no PoE) |
| Maximum power with PoE power supply (platform only) (watts) | 500 with PoE redundant |
| Maximum endpoint PoE power available from PoE power supply (watts) | 250 W with optional redundancy |
