ISR4451-X-AXV/K9 – Cisco Router 4000 Series
| Model: | ISR4451-X-AXV/K9 – Cisco Router 4000 Series |
| Detail: |
Cisco ISR 4451 AXV Bundle.PVDM4-64 w/APP.SEC.UC lic.CUBE-25
|
| Product Description | Cisco ISR 4451 AXV Bundle.Ā PVDM4-64 w/APP.Ā SEC.Ā UC lic.Ā CUBE-25. |
|
Aggregate Throughput |
1 Gbps to 2Gbps |
|
Total onboard WAN or LAN 10/100/1000 ports |
4 |
|
RJ-45-based ports |
4 |
|
SFP-based ports |
4 |
|
NIM slots |
3 |
|
OIR (all I/O modules) |
Yes |
|
Onboard ISC slot |
1 |
|
Default flash memory |
8 GB |
|
Maximum flash memory |
32 GB |
AED206,599.00
Cisco 4451 Integrated Services Router, named as ISR4451-X, which supports 2 Enhanced service-module (SM-X) slots, delivers 1 Gbps to 2Gbps aggregate throughput. This router also supports two kinds of DDRM, data plane and control/services plane, which make administrator easy to manage the router.Ā The Cisco ISR4451-X-AXV/K9 is the 4451 Application Experience with Voice (AXV) Bundle.

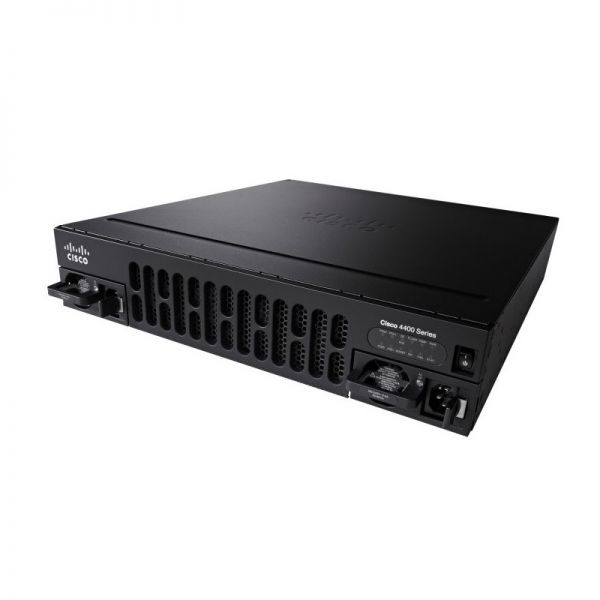

Figure 1 shows the appearance ofĀ ISR4451-X-AXV/K9.
Figure 2 shows the LEDs on the front panel of the Cisco ISR4451-X/K9 for reference. ISR4451-X-AXV/K9 is similar with it.
Ā
Note:
|
ā |
AC power supply unit (PSU0) |
ā£ |
Router power On/Off switch |
|
ā” |
Router fan tray |
ā¤ |
LEDs |
|
ā¢ |
AC power supply unit (PSU1) |
|
|
Ā·Router fan tray is hidden behind removable bezel.
Ā·LEDs include 12 indicators.
Table 2 shows the LED descriptions.
|
LEDs |
Represents |
Color |
Description |
|
PSU |
Power Supply Unit (P0 and P1) Status |
Green |
PSU is on and is providing power. |
|
Amber |
PSU is on but with errors or in a failure condition. |
||
|
Off |
Power supply is turned off. |
||
|
GE POE |
Internal PoE Daughter Card Status |
Green |
PSU is installed and providing power |
|
Amber |
PSU is installed but in a failure condition. |
||
|
Off |
PSU is off. |
||
|
FLASH |
System Flash Status |
Blinking Green |
Compact flash/eUSB flash is present and currently being accessed. |
|
TEMP |
Temperature Status |
Solid green |
All temperature sensors in the system are within acceptable range. |
|
Amber |
One or more temperature sensors in the system are outside the acceptable range. |
||
|
Off |
Temperature is not being monitored. |
||
|
PWR |
System Power |
Green |
System power is on and functioning correctly. |
|
Green blinking |
System power is in the process of shutting down. |
||
|
Amber |
System power is up, but low level initialization failed. |
||
|
Amber blinking |
System power is up, but the system failed to come out of reset. |
||
|
Off |
System power is off. |
||
|
POE BOOST |
Power Over Ethernet Boost Mode |
Green |
Two PoE power supplies are installed and operating in boost mode. |
|
Off |
This can mean one of the following: Ā·No PoE PSU installed. Ā·One PoE PSU installed. Ā·Two PoE PSUs installed and operating in redundant mode. |
||
|
ISC |
ISC Slot Status |
Green |
PVDM4 is present and enabled. |
|
Amber |
Initialized with error. |
||
|
Off |
Not present. |
||
|
FAN |
Fan Status |
Green |
All fans are operating. |
|
Amber |
One fan has stopped working. |
||
|
Blinking Amber |
Two or more fans have stopped working, or the fan tray has been removed. |
||
|
Off |
Fans are not being monitored. |
||
|
STAT |
System Status |
Solid green |
System operating normally. |
|
Blinking amber |
BIOS/Rommon is booting. |
||
|
Amber |
BIOS/Rommon has completed booting, and system is at Rommon prompt or booting platform software. |
||
|
Off |
System is not out of reset or BIOS image is not loadable. |
Figure 3 shows the back panel of Cisco ISR4451-X-AXV/K9.
Ā
Note:
|
ā |
USB Type A port |
ā¤ |
Auxiliary port |
|
ā” |
GE management port |
ā„ |
GE Ports |
|
ā¢ |
USB Type B mini port |
ā¦ |
NIM Slots |
|
ā£ |
Console port |
ā§ |
SM-X Slot |
Ā·The NIMs support 2 single-wide or 1 double-wide.
Ā·The GE Ports include 4 RJ45 ports and 4 SFP ports.
The Modules, Cards, Licenses & Accessories
Table 3 shows some recommended modules, cards, licenses and several cables.
|
Items |
Models |
Descriptions |
|
Console and Auxillary Cables |
Cisco CAB-AUX-RJ45 Auxiliary Cable 8ft with RJ45 and DB25M |
|
|
Cisco Router Cable CAB-ETH-S-RJ45 |
||
|
Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F |
||
|
Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B |
||
|
Licenses |
Cisco ISR 4431/4451 AppX license L-SL-44-APP-K9= with WAAS/vWAAS 1300/2500 conns RTU |
|
|
Network Interface Modules |
Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module |
|
|
Cisco Multiflex Trunk Voice and WAN network interface module |
||
|
Analog voice network interface card (ear and mouth) |
||
|
Cisco Analog voice network interface card NIM-2FXS |
||
|
Cisco Analog voice network interface card NIM-2FXS/4FXO |
||
|
Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module |
||
|
SFPs for On-Board GE Ports |
Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
|
|
Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM |
||
|
Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM |
Compare to Similar Items
TableĀ 4Ā shows the comparison between ISR4451-X-AXV/K9 andĀ ISR4351-V/K9.
| Product Number | ISR4451-X-AXV/K9 | ISR4351-V/K9 |
| Product Description | Cisco ISR 4451 AXV Bundle.Ā PVDM4-64 w/APP.Ā SEC.Ā UC lic.Ā CUBE-25. | Cisco ISR4351-V/K9 (3GE,3NIM,2SM,4G FLASH,4G DRAM,Voice Bundle) |
|
Aggregate Throughput |
1 Gbps to 2Gbps |
200 Mbps to 400 Mbps |
|
Total onboard WAN or LAN 10/100/1000 ports |
4 |
3 |
|
RJ-45-based ports |
4 |
3 |
|
SFP-based ports |
4 |
3 |
|
NIM slots |
3 |
3 |
|
Onboard ISC slot |
1 |
1 |
Cisco ISR4451-X-AXV/K9 Specification |
|
| Product Number | ISR4451-X-AXV/K9 |
| Product Description | Cisco ISR 4451 AXV Bundle.Ā PVDM4-64 w/APP.Ā SEC.Ā UC lic.Ā CUBE-25. |
|
Aggregate Throughput |
1 Gbps to 2Gbps |
|
Total onboard WAN or LAN 10/100/1000 ports |
4 |
|
RJ-45-based ports |
4 |
|
SFP-based ports |
4 |
|
Enhanced service-module slots |
2 |
|
Doublewide service-module slots |
1 (assumes no singlewide SM-X modules installed) |
|
NIM slots |
3 |
|
OIR (all I/O modules) |
Yes |
|
Onboard ISC slot |
1 |
|
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/dataĀ planes) |
NA |
|
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) |
NA |
|
Default memory DDR3 ECC DRAM (data plane) |
2 GB |
|
Maximum memory DDR3 ECC DRAM (data plane) |
2 GB |
|
Default memory DDR3 ECC DRAM (control/services plane) |
4 GB |
|
Maximum memory DDR3 ECC DRAM (control/services plane) |
16 GB |
|
Default flash memory |
8 GB |
|
Maximum flash memory |
32 GB |
|
External USB 2.0 slots (type A) |
2 |
|
USB console port -type B mini (up to 115.2 kbps) |
1 |
|
Serial console port – RJ45 (up to 115.2 kbps) |
1 |
|
Serial auxiliary port – RJ45Ā (up to 115.2 kbps) |
1 |
|
Power-supply options |
Internal: AC, DC and PoE |
|
Redundant power supply |
Internal: AC, DC and PoE |
|
AC input voltage |
100 to 240 VAC autoranging |
|
AC input frequency |
47 to 63 Hz |
|
AC input current range, AC power supply (maximum) |
7.1 to 3.0A |
|
AC input surge current |
<50 A |
|
Typical power (no modules) (watts) |
158 |
|
Maximum power with AC power supply (watts) |
450 (no PoE) |
|
Maximum power with PoE power supply (platform only) (watts) |
1000 with PoE redundant 1450 with PoE boost no redundancy |
|
Maximum endpoint PoE power available from PoE power supply (watts) |
500 W with optional redundancy |
|
Maximum endpoint PoE power capacity with PoE boost (watts) |
950 W no redundancy |
