ISR4451-X-SEC/K9 – Cisco ISR 4000 Routers

Add to Wishlist
Model: ISR4451-X-SEC/K9 – Cisco ISR 4000 Routers
Detail:
Cisco ISR 4451 Sec bundle w/SEC license

Bundle

Ā w/SEC license

Aggregate Throughput

1 Gbps to 2Gbps

Total onboard WAN or LAN 10/100/1000 ports

4

RJ-45-based ports

4

SFP-based ports

4

Enhanced service-module (SM-X) slot

2

NIM (Network Interface Modules) slots

3

Onboard ISC slot

1

DDRM (data plane)

2 GB (default) / 2 GB (maximum)

DDRM (control/services plane)

4 GB (default) / 16 GB (maximum)

Flash Memory

8 GB (default) / 32 GB (maximum)

Power-supply options

Internal: AC, DC (roadmap) and PoE

Rack height

2 RU

AED150,699.00

Add to Wishlist

ISR4451-X-SEC/K9 is the Cisco 4451 Integrated Services Router, with Security license. It supports 2 Enhanced service-module (SM-X) slots, delivers 1 Gbps to 2Gbps aggregate throughput. This router also supports two kinds of DDRM, data plane and control/services plane, which make administrator easy to manage the router.

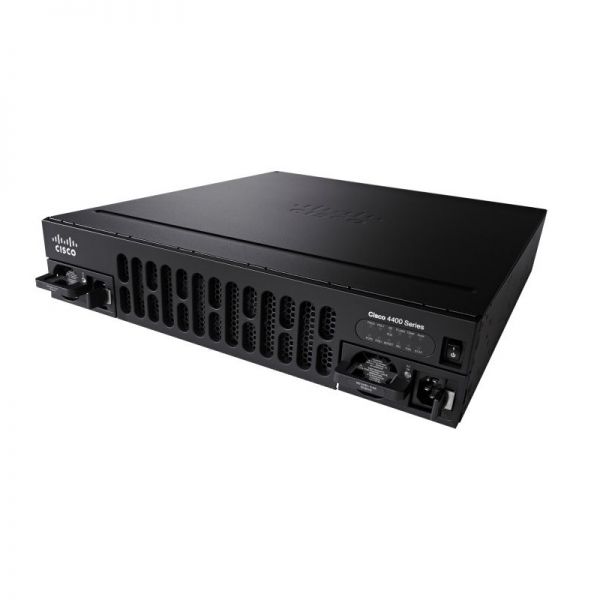

Figure 1 shows the appearance of Cisco ISR4451-X-SEC/K9.

ISR4451-X-SEC/K9 Appearance

Figure 2 shows the front panel of Cisco ISR4451-X-SEC/K9.

Ā ISR4451-X-SEC/K9 Front Panel

Note:

ā‘

AC power supply unit (PSU0)

ā‘£

Router power On/Off switch

ā‘”

Router fan tray

ā‘¤

LEDs

ā‘¢

AC power supply unit (PSU1)

Ā·Router fan tray is hidden behind removable bezel.

Ā·LEDs include 12 indicators.

Figure 3 shows the back panel of Cisco ISR4451-X-SEC/K9.

Ā ISR4451-X-SEC/K9 Back Panel

Note:

ā‘

USB Type A port

ā‘¤

Auxiliary port

ā‘”

GE management port

ā‘„

GE Ports

ā‘¢

USB Type B mini port

ā‘¦

NIM Slots

ā‘£

Console port

ā‘§

SM-X Slot

Ā·The NIMs support 2 single-wide or 1 double-wide.

Ā·The GE Ports include 4 RJ45 ports and 4 SFP ports.

Figure 4 shows the Security License function.

security bundle

The Modules, Cards, Licenses & Accessories

Table 2 shows some recommended modules, cards, licenses and several cables.

Items

Models

Descriptions

Console and Auxillary Cables

CAB-AUX-RJ45

Cisco CAB-AUX-RJ45 Auxiliary Cable 8ft with RJ45 and DB25M

CAB-ETH-S-RJ45

Cisco Router Cable CAB-ETH-S-RJ45

CAB-CONSOLE-RJ45

Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F

CAB-CONSOLE-USB

Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B

Licenses

L-SL-44-APP-K9=

Cisco ISR 4431/4451 AppX license L-SL-44-APP-K9= with WAAS/vWAAS 1300/2500 conns RTU

FL-44-PERF-K9

Increases the performance from base performance 1 Gbps to 2 Gbps

VoiceĀ Network Interface Modules

NIM-1MFT-T1/E1

Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module

NIM-2CE1T1-PRI

Cisco Multiflex Trunk Voice and WAN network interface module

NIM-4E/M

Analog voice network interface card (ear and mouth)

NIM-2FXS

Cisco Analog voice network interface card NIM-2FXS

NIM-2FXS/4FXO

Cisco Analog voice network interface card NIM-2FXS/4FXO

NIM-8MFT-T1/E1

Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module

Gigabit Ethernet WAN Modules

NIM-1GE-CU-SFP

Cisco 1-Port Gigabit Ethernet WAN Network Interface Module

NIM-2GE-CU-SFP

Cisco 2-Port Gigabit Ethernet WAN Network Interface Module

SM-X-6X1G

Ā Cisco 6-Port High-Density Gigabit Ethernet WAN Service Module

SM-X-4X1G-1X10G

Cisco 4-Port High-Density Gigabit or 1-Port 10 Gigabit Ethernet WAN Service Module

Gigabit Ethernet LAN Switch Network Interface Modules

NIM-ES2-4=

4-port Layer 2 Gigabit Ethernet LAN Switch NIM

NIM-ES2-8

8-port Layer 2 Gigabit Ethernet LAN Switch NIM

NIM-ES2-8-P

8-port PoE/PoE+ Layer 2 Gigabit Ethernet LAN Switch NIM

SFPs for On-Board GE Ports

GLC-SX-MMD

Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM

GLC-LH-SMD

Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM

GLC-ZX-SMD

Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM

Compare to Similar Items

Table 3 shows the comparison.

Models ISR4451-X/K9 ISR4451-X-SEC/K9
Bundle None Sec bundle w/SEC license
Aggregate Throughput 1 Gbps to 2 Gbps 1 Gbps to 2 Gbps
Total onboard WAN or

LAN 10/100/1000 ports

 4 4
RJ-45-based ports 4 4
SFP-based ports 4 4
Enhanced service-module slots 2 2
NIM slots 3 3
Onboard ISC slot 1 1
Rack height 2 2
SKU: ISR4451-X-SEC K9 Category:

ISR4451-X-SEC/K9 Specification

Description

Cisco ISR 4451 Sec bundle w/SEC license

Aggregate Throughput

1 Gbps to 2Gbps

Total onboard WAN or LAN 10/100/1000 ports

4

RJ-45-based ports

4

SFP-based ports

4

Enhanced service-module slots

2

Doublewide service-module slots

1 (assumes no singlewide SM-X modules installed)

NIM slots

3

OIR (all I/O modules)

Yes

Onboard ISC slot

1

Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM

(Combined control/services/dataĀ planes)

NA

Maximum memory DDR3 ECC DRAM (Combined control/services/data planes)

NA

Default memory DDR3 ECC DRAM (data plane)

2 GB

Maximum memory DDR3 ECC DRAM (data plane)

2 GB

Default memory DDR3 ECC DRAM (control/services plane)

4 GB

Maximum memory DDR3 ECC DRAM (control/services plane)

16 GB

Default flash memory

8 GB

Maximum flash memory

32 GB

External USB 2.0 slots (type A)

2

USB console port -type B mini (up to 115.2 kbps)

1

Serial console port – RJ45 (up to 115.2 kbps)

1

Serial auxiliary port – RJ45Ā (up to 115.2 kbps)

1

Power-supply options

Internal: AC, DC and PoE

Redundant power supply

Internal: AC, DC and PoE

AC input voltage

100 to 240 VAC autoranging

AC input frequency

47 to 63 Hz

AC input current range, AC power supply (maximum)

7.1 to 3.0A

AC input surge current

<50 A

Typical power (no modules) (watts)

158

Maximum power with AC power supply (watts)

450 (no PoE)

Maximum power with PoE power supply (platform only) (watts)

1000 with PoE redundant

1450 with PoE boost no redundancy

Maximum endpoint PoE power available from PoE power supply (watts)

500 W with optional redundancy

Maximum endpoint PoE power capacity with PoE boost (watts)

950 W no redundancy
