Power Supply

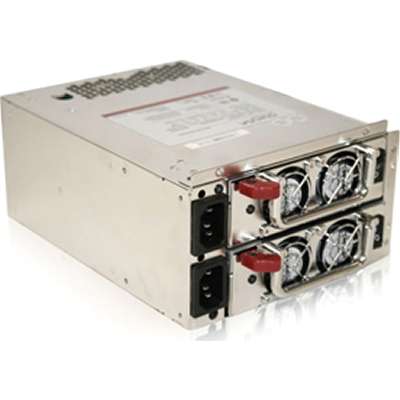

iStarUSA 400W PS2 Mini Redundant Power Supply
- 1 x 20+4 Pin Main Connector
- Automatic Thermal Control (Reduce Fan Speed)
- Industrial DIN-Connector for Reliability
- Remote Sensor on +5v & +3.3V
- Power Failure Alarm & Signals
AED3,099.00
iS-400R8P offers your server and workstation zero down time with full 400W power redundancy. Active PFC, temperature control fan, hot swappable power modules and load sharing function provide ultimate precision power and safety protection for all electronic equipment. A good start for your mission critical system integrations.
| Category | Specification |
|---|---|
| General Information | |
| Product Name | 400W PS2 Mini Redundant Power Supply |
| Product Model | IS-400R8P |
| Product Type | Redundant Power Supply |
| Technical Information | |
| Efficiency | 74% |
| Power Factor Correction | Active |
| Number of Fans | 1 |
| Protection Type | Over Power, Over Voltage, Over Current, Short Circuit |
| Power Description | |
| Input Voltage | 110 V AC, 220 V AC |
| Output Voltage | 3.3 V DC, 5 V DC, 12 V DC, -5 V DC, -12 V DC |
| Output Voltage Detail | 3.3 V DC @ 24 A 5 V DC @ 24 A 12 V DC @ 30 A -5 V DC @ 500 mA -12 V DC @ 1 A 5 V DC @ 2 A |
| Output Current | 24 A, 30 A, 500 mA, 1 A, 2 A |
| Output Power | 400 W |
| Reliability | |
| MTBF | 100,000 Hours |
| Physical Characteristics | |
| Form Factor | Plug-in Module |
| Height | 3.3″ |
| Width | 5.9″ |
| Depth | 7.8″ |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Other Information | |
| Hot Swappable Power Supply | Yes |
| Receptacles | 1 x 24-pin ATX Motherboard 1 x 4-pin ATX12V Motherboard 1 x 8-pin EPS12V Motherboard 8 x Molex |
| Input Voltage Range | 90 V AC – 132 V AC, 180 V AC – 264 V AC |
| Input Current | 8 A @ 110V, 4 A @ 220V |
