Networking

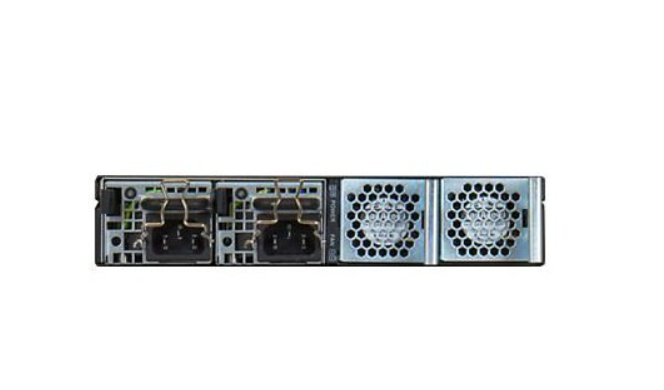

Ixia iBypass DUO – network bypass unit
Quick tech specs
- Network bypass unit
- 1U
- 10GbE
AED78,899.00
Know your gear
| Category | Attribute | Details |
|---|
| Overview | Brand | Ixia |
| Product Line | Ixia iBypass |
| Model | DUO |
| Manufacturer | Ixia |
| Network & Communication | Connectivity Technology | Wired |
| Data Link Protocols | 10 Gigabit Ethernet |
| Features | Syslog support |
| Form Factor | External |
| Network Standard | FTP, SFTP |
| Product Type | Network bypass unit |
| Remote Management | CLI, SCP, SFTP, SNMP 2c, SNMP 3, SSH |
| Status Indicators | Link/activity, Power |
| Connectivity | Interface Provided | 1 x console – RJ-45, 2 x 10GBASE-SR – LC single-mode, 2 x management – RJ-45, 4 x monitoring – SFP+ |
| Power | Frequency | 50/60 hertz |
| Hot-Plug | Hot-plug |
| Power Supplies Installed | 2 |
| Power Supplies Supported | 2 |
| Redundant Power Supply | Yes |
| Technical Information | Encryption | TLS 1.2 |
| Max Operating Temperature | 104 degree Fahrenheit |
| Min Operating Temperature | 32 degree Fahrenheit |
| MTBF | 99,000 hour(s) |
| Operating Humidity | 10 – 95% (non-condensing) |
| Product Information | Device Type | Internal power supply |
| Packaged Quantity | 1 |
| Included Items | Included Accessories | Mounting brackets |
| Dimensions & Weight | Height | 1.7 inch |
| Height (Rack Units) | 1 |
| Weight | 8.82 lbs |
| Width | 8.8 inch |
| Depth | 17.3 inch |
| Physical Characteristics | Color Category | White |
| Certifications & Listings | Compliant Standards | AS/NZS CISPR32:2015 Class A, BSMI, CAN/CSA C22.2 No. 60950-1-03, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, EN 55024:2010, EN 55032:2012+AC:2013 Class A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, EN 61000-3-2, EN 61000-3-3:2013, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, FCC CFR47, FCC Part 15 B, ICES-003 issue 6, IEC60950-1:2005, Second edition + Am1:2009 + Am2:2013, KCC, REACH 2006/1907/EC, RoHS 2011/65/EU, UL 60950-1 Second Edition |
| ENERGY STAR Certified | No |
There are no reviews yet.
