17,299.00 د.إ

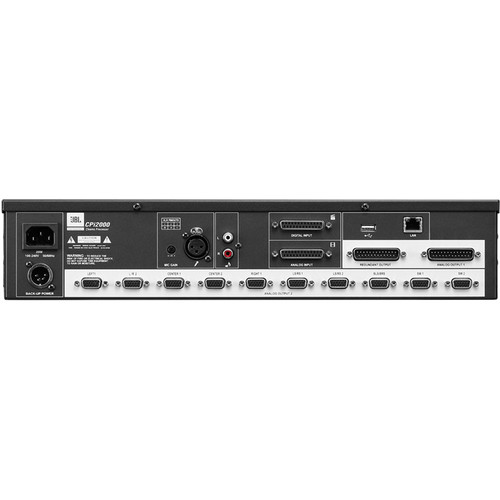

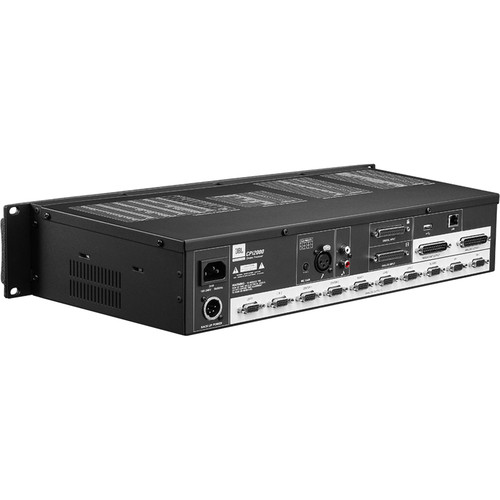

The 2 RU Cinema Processor from JBL is designed to provide audio enhancement and volume control for surround sound systems in cinemas. It features DSP processing, room EQ tuning, volume control, and system fault detection and can be configured through a specially designed GUI software. There are four inputs including analog, digital, non-sync, and mono microphone. This processor also features 10 x 15-pin analog output connectors for passive, bi-amp, or tri-amp connection and a 25-pin analog output connector for connection with a third-party audio system. Its redundant output works together with the analog input and will bypass this CPi2000 system to directly output audio signals in case power failure occurs.
| Specification | Parameter | Value |
|---|
| Connectors |
| 25-Pin Female, Balanced Digital Input | 1 |
| 25-Pin Female, Balanced/Unbalanced Analog Input | 1 |
| 3-Pin XLR Female, Balanced/Unbalanced Microphone Input | 1 |
| RCA L/R Non-Sync, Stereo Music Input | 1 |
| 25-Pin Male, Balanced/Unbalanced Analog Output | 1 |
| 25-Pin Male, Balanced/Unbalanced Redundant Output | 1 |
| 15-Pin Female, Balanced/Unbalanced Analog Output | 10 |
| USB Type-A Port | 1 |
| RJ45 LAN Port | 1 |
| IEC, 100-240 V Power Input | 1 |
| 4-Pin XLR Female, Backup 12 VDC, 2 A Power Input | 1 |
| Impedance | Digital Input | 110 Ohms |
| Analog Input | 50 Kilohms Balanced, 25 Kilohms Unbalanced |
| Microphone Input | 660 Ohms |
| Non-Sync Music Input | 25 Kilohms |
| Analog/Redundant Output | 30 Ohms |
| Input Level | Digital Input | 0.5 – 10 Vpp |
| Analog Input | 14.2 dBu Max. |
| Non-Sync Music Input & Analog/Redundant Output | 14.2 dBu |
| Total Gain | Microphone Input | 40 dB |
| Mic Input Noise (E.I.N.) | 20 kHz Bandwidth | > 113 dB |
| Frequency Response | Range | 20 Hz to 20 kHz, Ref 1 kHz ±1 dB |
| THD + N | < 0.01%, 20 Hz to 20 kHz |
| Dynamic Range | > 102 dB |
| Power | AC Input | 100-240 VAC, 50/60 Hz |
| DC Input | 12 VDC, 2 A |
| Rack Space | 2 RU |
| Dimensions | 18.98 x 3.46 x 9.09″ / 482 x 88 x 231 mm |
| Weight | 8.82 lb / 4 kg |
The pair of Bogen CSD2X2 Drop-In Ceiling Speakers are easy-to-install 2 x 2′ ceiling tile speakers for use with 25/70V commercial PA audio systems. They easily install into a 2 x 2′ cut-out in your existing ceiling tile. A tile support rail is included for a precise fit in any drop ceiling. The 8″ cone speaker has a 10 oz magnet with a 70V/25V, 4-watt transformer.
The AtlasIED IPX series IP-SDMF indoor wall mount IP speaker with display and flasher leverage the VoIP Communication solution to extend tele-presence with enhanced audio for those environments where network-wide communication is desired and that require large speakers with high output to overcome high ambient noise areas or large spaces.
AtlasIED IP-SDMF registers as a communication endpoint directly within InformaCast, and Revolution Advanced Notification applications, supporting both visual text and audio broadcast to enhance physical security while improving day-to-day communications through advanced alerting, bell schedules, pre-recorded, & scheduled announcements, while leveraging the WAN/LAN Network Architecture.
