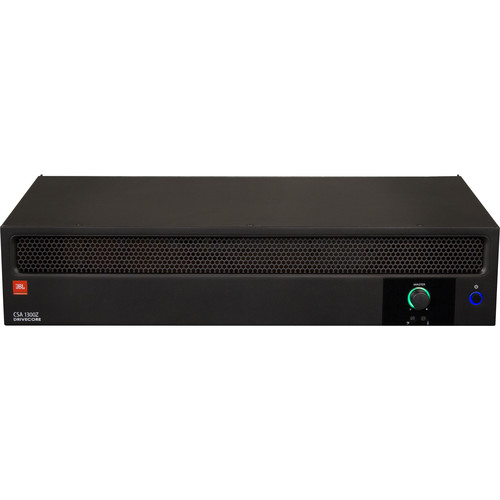

JBL CSA 1300Z Single-Channel 300W Amplifier

Add to Wishlist
Key Features
  • Single Channel Output
  • For Commercial and Industrial Use
  • Integrated Output Transformer: 100V, 70V
  • Euroblock and RCA Mono Sum Inputs
  • Barrier Strip Output Terminal
  • Independent Bass and Treble Control
  • Optional Volume Remote Control via RJ45
  • RS232 Control of Volume, Mute, and Sleep
  • Crown’s DriveCore Technology
  • Limited 3-Year Warranty

3,399.00 د.إ

Add to Wishlist

Built for installed sound applications, the CSA 1300Z Single-Channel 300W Amplifier from JBL delivers powerful sound and efficient performance using the Crown’s DriveCore commercial power amplifier technology. Simple to configure, this amplifier provides a DriveCore-based sound solution, which utilizes one small chip that significantly reduces the part count and increases reliability while still maintaining high performance. It provides amplification with a choice of low impedance, 70V or 100V outputs. The amp includes a rack mounting kit for installations to a cabinet, and a RJ45 connector for an optional remote volume control using JBL’s CSR-V control module.

  • One channel with 300W output
  • Integrated output transformer to drive 70V or 100V speaker systems
  • Ideal for commercial and industrial use
  • Euroblock style input connectors
  • Barrier strip output connectors
  • Independent bass and treble controls for each output channel
  • Remote volume control capability using JBL’s CSR-V module and standard Ethernet cable (sold separately)
  • Space-saving 2 RU design
  • Capable of RS232 control of volume, stand-by, and mute
  • Utilizes Crown’s DriveCore technology providing high-quality audio performance with high efficiency
  • Sleep mode disable function
  • Energy-efficient amplifier
  • Sleek look with illuminated rings making knobs easy to see and use
  • System can be expanded by adding JBL Commercial Series Mixers and Mixer-Amplifiers (sold separately)
SKU: CSA1300Z Category: Tag:
Key Specs
Number of Channels
1
Amplifier Power Rating
4 Ohms / 8 Ohms:
300 W (1 kHz, 0.5% THD)
Load Impedance / Voltage
4 Ohms (Minimum)
70 / 100 V
DSP
Yes
Analog Audio I/O
1x Block 3-Pin Balanced/Unbalanced Input
1x 2RCA TS Unbalanced Summed-Mono Input
1x Barrier Strip 2-Pin Output
Amplifier Power Rating
4 Ohms / 8 Ohms:
300 W (1 kHz, 0.5% THD)
Load Impedance / Voltage
4 Ohms (Minimum)
70 / 100 V
Performance
Frequency Response
20 Hz to 20 kHz ±1 dB (8 Ohms)
Input Sensitivity
Line:
775 mVrms (Balanced, at 8 Ohms)
RCA:
300 mV (at 8 Ohms)
Input Impedance
Block:
20 Kilohms (Balanced)
RCA:
10 Kilohms
SNR
> 97 dBA
THD
< 0.5% (Full Range, at Rated Power)
Crosstalk
< -70 dBA (1 kHz)
Signal Processing
DSP
Yes
Crossover
Yes
EQ
2-Band
Compressor
Yes
Limiting
Yes
Connectivity
Analog Audio I/O
1x Block 3-Pin Balanced/Unbalanced Input
1x 2RCA TS Unbalanced Summed-Mono Input
1x Barrier Strip 2-Pin Output
Phantom Power
Yes
Power
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Physical
Operating Temperature
32 to 95°F / 0 to 35°C
Storage Temperature
-4 to 185°F / -20 to 85°C
Dimensions
17.0 x 11.0 x 3.5″ / 43.0 x 27.0 x 8.9 cm
Weight
13.1 lb / 5.9 kg
Packaging Info
Package Weight
15.7 lb
Box Dimensions (LxWxH)
21.6 x 14.5 x 6″
