JL675A – Aruba 6100 Series Switch

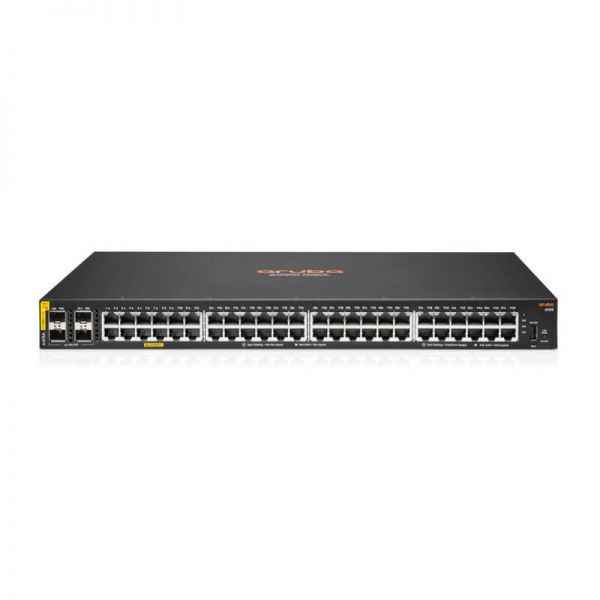

Model:	JL675A – Aruba 6100 Series Switch
Detail:	Aruba 6100 48G Class4 PoE 4SFP+ 370W Switch

AED29,599.00

Table 1 shows the Quick Specs.

Product Code	JL675A
Product Series	6100
Total Number of Network Ports	48
Power Consumption	45 W
Power Source	Power Supply

JL675A provides these features:

Enterprise-class Layer 2 connectivity with support for ACLs, robust QoS and static routing
Convenient built-in 1/10GbE uplinks and up to 370W of Class 4 PoE for support of IoT devices
Compact and fanless 12 port model for quiet deployment
Manage via single pane of glass with Aruba Central across wired, wireless, and WAN
Automated configuration and verification with Aruba NetEdit
Software defined ready with REST APIs
Simplify adds, moves and changes with colorless ports

JL675A Specification
Product Name	Aruba 6100 48G CL4 4SFP+ Switch PL-W8
Manufacturer Part Number	JL675A
Product Type	Ethernet Switch
Manageable	Yes
Ethernet Technology	Gigabit Ethernet 10 Gigabit Ethernet
Number of Total Expansion Slots	4
Product Family	6100
Media Type Supported	Twisted Pair Optical Fiber
Total Number of Network Ports	48
PoE (RJ-45) Port	Yes
Expansion Slot Type	SFP+
Form Factor	Rack-mountable Wall Mountable
Power Consumption	45 W
Power Source	Power Supply
Layer Supported	3
Environmentally Friendly	Yes
Compatible Rack Unit	1U
Number of Power Supplies Supported	1
Number of Power Supplies Installed	1
Number of SFP+ Slots	4
Modular	Yes
Uplink Port	Yes
Port / Expansion Slot Details	48 x Gigabit Ethernet PoE 4 x 10 Gigabit Ethernet Expansion Slot
PoE Budget	370 W
Height	1.7″
Width	17.4″
Depth	12″
Product Series	6100
Network Technology	10/100/1000Base-T 10GBase-X
Input Voltage	120 V 230 V
Limited Warranty	Lifetime
Frequency	50 Hz 60 Hz
