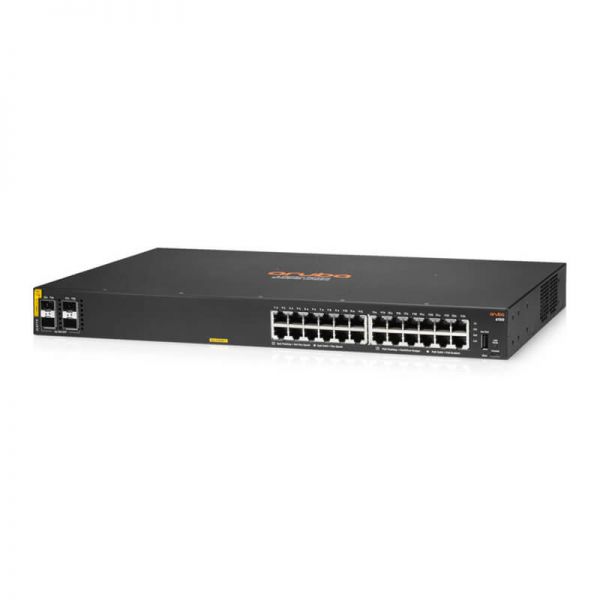

JL677A – HPE Aruba Networking CX 6100 24G Class4 PoE 4SFP+ 370W Switch




JL677AĀ provides these features:

  • Enterprise-class Layer 2 connectivity with support for ACLs, robust QoS and static routing
  • Convenient built-in 1/10GbE uplinks and up to 370W of Class 4 PoE for support of IoT devices
  • Compact and fanless 12 port model for quiet deployment
  • Automated configuration and verification with Aruba NetEdit
  • Software defined ready with REST APIs
  • Simplify adds, moves and changes with colorless ports



AED6,999.00

The HPE Aruba Networking CX 6100 Switch Series is a modern family of entry level access switches ideal for branch offices, mid-market enterprise, andĀ SMB networks. Designed for reliable, simple, and secure access, the HPE CX 6100 switches provide a convenient wired access solution for enterprise networks supporting IoT, mobile, and cloud applications.

Prepare your network for tomorrow’s unpredictable demands with a powerful Aruba ASIC architecture and programmable AOS-CX operating system used across the HPE Aruba CX portfolio to deliver a more consistent, more efficient operator experience. This layer 2 switch series has convenient built-in high speed uplinks with up to 740W of IEEE 802.3at Class 4 PoE to supportĀ IoT devicesĀ such as security cameras and wireless APs. A compact and fanless 12 port model is ideal for use in quiet work spaces. With robust QoS, support for static routing, and IPv6, the HPE CX 6100 also simplifies ownership with no switch software licensing requirements.

JL677A Specification

Product Name Aruba 6100 24G CL4 4SFP+ Switch PL-W8
Manufacturer Part Number JL677A
Product Type Ethernet Switch
Manageable Yes
Ethernet Technology Gigabit Ethernet

10 Gigabit Ethernet

Number of Total Expansion Slots 4
Product Family 6100
Media Type Supported Twisted Pair

Optical Fiber

Total Number of Network Ports 24
PoE (RJ-45) Port Yes
Expansion Slot Type SFP+
Form Factor Rack-mountable

Wall Mountable

Power Consumption 32.70 W
Power Source Power Supply
Layer Supported 3
Environmentally Friendly Yes
Compatible Rack Unit 1U
Number of Power Supplies Supported 1
Number of Power Supplies Installed 1
Number of SFP+ Slots 4
Modular Yes
Uplink Port Yes
Port / Expansion Slot Details 24 x Gigabit Ethernet PoE

4 x 10 Gigabit Ethernet Expansion Slot

24 x Gigabit Ethernet PoE

4 x 10 Gigabit Ethernet Expansion Slot

PoE Budget 370 W
Height 1.7″
Width 17.4″
Depth 10.6″
Product Series 6100
Network Technology 10/100/1000Base-T

10GBase-X

10/100/1000Base-T

10GBase-X

Input Voltage 120 V

230 V

120 V AC

230 V AC

Limited Warranty Lifetime
Frequency 50 Hz

60 Hz

50 Hz

60 Hz
