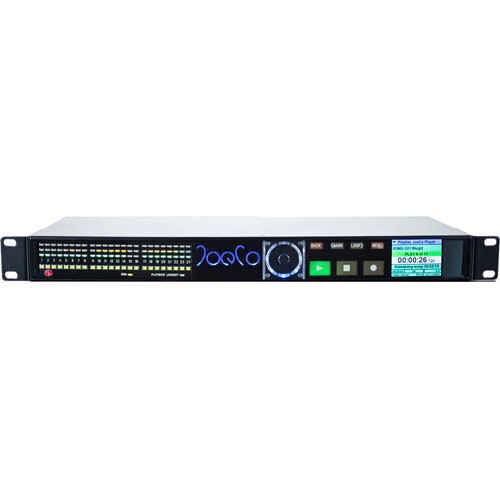

JoeCo BBP1B Blackbox Player (Balanced)

Add to Wishlist
Key Features
  • D-Sub Balanced Connections
  • Simultaneous Playback of 24 Tracks
  • Supports WAV Files of up to 96kHz
  • Reads USB2 & Flash Storage Devices
  • Multichannel Output Connections
  • Ideal for Backing Track Playback
  • Ideal for Multi-Lingual Translation
  • MIDI Controllable
  • Computer-Free Stem Playback

15,599.00 د.إ

Add to Wishlist

The JoeCo BBP1B Blackbox Player is a straightforward multi-track digital player that supports playback of up to 24 digital audio stems at up to 24-bit, 96kHz resolution. Mono broadcast standard WAV files are read from portable USB2 and SDHC media devices, and some of the many applications for the BBP1B Blackbox Player include backing tracks in live performances, multi-lingual translation applications, audio installations in halls, theaters, theme parks and more.

There are discrete output connections via 3x balanced 25way D-sub analog format connectors. The BBP1B Blackbox Player features a full set of transport controls on the 19inch rackmountable chassis. Also featured is a color LCD display, and the unit is easily controlled via MIDI or a QWERTY keyboard.

  • Simultaneous playback of 24 tracks in up to 24bit/96kHz quality. No computer required at the performance.
  • Files for playback can be loaded from any digital audio workstation capable of creating Broadcast WAV files or recorded directly.
  • Audio can be stored on USB2 hard drive or flash drive.
  • Simple naming convention ensures that the correct file is replayed through each output.
  • Balanced analog connections via Tascam format D-sub, as well as digital via AES/EBU.
  • Intuitive front panel, keyboard or footswitch operation for total control during the performance.
  • Can be controlled via MIDI.
  • Set lists can be configured as simple XML format playlist files.
  • Synchronous playback to SMPTE timecode (LTC and MTC).
  • Multiple playlists can be stored for quick changes or alternative show formats.
  • Separate foldback mixes can be configured using normal facilities on the console. An additional mix can be sent via the headphone output for the musical director.
  • Can be configured to accept an incoming source of digital clock, or optionally word clock.
  • Unique feature is the ability to automatically switch to a synchronous secondary system in the event of a failure. (Normally requires a costly external switching matrix.)
SKU: BBP1-B Category: Tag:
Form Factor
Rackmount
Number of Tracks
24
Maximum Sampling Rate
96 kHz / 24-Bit
Connectivity
Analog Audio I/O
3x DB-25 25-Pin Balanced Input (AES 59/Tascam Pinout)
MIDI I/O
Yes
Digital Audio
Audio File Formats
BWF, WAV
XML
Sample Rates
44.1 / 48 / 88.2 / 96 kHz
Sync Sources
Internal, AES3, S/PDIF, SMPTE/LTC
Frame Rates Supported
30 / 29.97 DF / 29.97 / 25 / 24 / 23.98
Audio Storage & Playback
Supported Media
USB Hard Disk Drive, USB Flash Drive
Power
Power Requirements
AC/DC Power Adapter (Included)
AC/DC Power Adapter
9 to 12 VDC (Included)
Power Consumption
25 W (Maximum)
Physical
Rackmount Size
1 RU
Dimensions
17.12 x 1.73 x 6.69″ / 435 x 44 x 170 mm
Weight
5.5 lb / 2.5 kg
Packaging Info
Package Weight
7.45 lb
Box Dimensions (LxWxH)
22.6 x 15.5 x 2.8″
