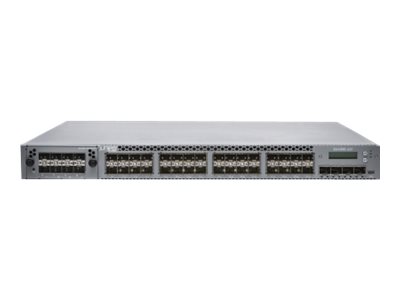

Juniper EX Series EX4300-32F – switch – 32 ports – managed – rack-mountable EX4300-32F

Add to Wishlist

AED27,499.00

Add to Wishlist

Juniper Networks EX4300 32 Port 1000BASEX SFP 4X10GBASEX SFP+ 2X40GBASEX QSFP+



Overview

The Juniper Networks EX4300 line of Ethernet switches delivers the performance and scale required for both campus and data center Gigabit Ethernet (GbE) access switch deployments. Combined with Juniper’s market leading Virtual Chassis technology, the EX4300 scales up to 10 members, delivering the high availability and Plug-and-Play scale that businesses demand. Combining compact, pay-as-you-grow economics and low power and cooling with the performance, availability, and port densities of chassis-based platforms, the EX4300 with Virtual Chassis technology enables businesses to deploy with speed and agility to increase revenue and improve productivity.

The Juniper Networks EX4300 line of Ethernet switches with Virtual Chassis technology combines the carrier-class reliability of modular systems with the economics and flexibility of stackable platforms, delivering a high-performance, scalable solution for data center, campus and branch office environments.

Redundant power supplies

The EX4300 line of Ethernet switches supports internal redundant, load-sharing, hot-swappable, and field-replaceable AC and DC power supplies to maintain uninterrupted operations. Thanks to its compact footprint, the EX4300 requires significantly less power than chassis-based switches delivering equivalent port densities.

Hot-swappable fans

The EX4300 includes hot-swappable fans, providing sufficient cooling even if one of the fans were to fail.

Non-Stop Bridging (NSB) and Non-Stop Routing (NSR)

NSB and NSR on the EX4300 ensure control plane protocols, states and tables are synchronized between Master and Standby REs to prevent protocol flaps or convergence issues following a Routing Engine failover.

Redundant trunk group (RTG)

To avoid the complexities of Spanning Tree Protocol (STP) without sacrificing network resiliency, the EX4300 employs redundant trunk groups to provide the necessary port redundancy and simplify switch configuration.

Cross-member link aggregation

Cross-member link aggregation allows redundant link aggregation connections between devices in a single Virtual Chassis configuration, providing an additional level of reliability and availability.

Carrier-class hardware

The EX4300 leverages a purpose-built packet forwarding engine ASIC, the EX-PFE, which integrates much of the same intellectual property used in Juniper Networks carrier-class routers. As a result, the EX4300 delivers the same predictable, scalable functionality found in the world’s largest networks.

IPv4 and IPv6 routing support

IPv4 and IPv6 Layer 3 routing (OSPF and BGP) is available with an enhanced license, enabling highly resilient networks.

SKU: 10 Category: Tags: ,

Specifications

General
Device Type Switch – 32 ports – L3 – managed – stackable
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 32 x Gigabit SFP + 4 x 10 Gigabit SFP+ + 2 x 40 Gigabit QSFP+
Performance Switching capacity: 464 Gbps Throughput: 345 Mpps
Capacity Virtual interfaces (VLANs): 4093 VLAN Spanning Tree Protocol instances: 510 Multiple Spanning Tree Protocol instances: 64 ARP entries: 64000 IPv4 routes: 32000 Maximum of neighboring networks: 20000 IPv6 routes: 18000
MAC Address Table Size 64K entries
Jumbo Frame Support 9216 bytes
Max Units In A Stack 10
Routing Protocol OSPF, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, PIM-SM, PIM-DM, IGMPv3, OSPFv3, PIM-SSM, static IPv4 routing, static IPv6 routing, RIPng, MPLS, Bidirectional Forwarding Detection (BFD), VRRPv3, CIDR
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS, SSH, SSH-2, CLI
Encryption Algorithm MD5, TLS, PEAP, TTLS
Authentication Method RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Features Flow control, BOOTP support, RARP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, DiffServ support, store and forward, IPv6 support, High Availability, ASIC VPN, SNTP support, DDos attack prevention, Weighted Random Early Detection (WRED), sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, DHCP proxy, Dynamic ARP Inspection (DAI), temperature sensor, Redundant trunk group (RTG), Time Domain Reflectometry (TDR), Virtual Chassis technology, Graceful Route Engine Switchover (GRES), front to back airflow, Per-VLAN Spanning Tree Plus (PVST+), IPv4 support, Deficit Weighted Round Robin (DWRR), hot swappable dual fans, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Virtual Routing and Forwarding (VRF), Neighbor Discovery Protocol (NDP), VLAN Spanning Tree Protocol (VSTP), NTP time synchronization, redundant hot swappable fans, Class of Service (CoS), Strict Priority (SP), tagged VLAN, Captive Portal, Multicast Source Discovery Protocol (MSDP)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3az, IEEE 802.3ba, ITU-T G.8032
Processor 1 PowerPC: 1.5 GHz
RAM 4 GB
Flash Memory 4 GB
Status Indicators LCD display
Expansion / Connectivity
Interfaces 32 x 1000Base-X SFP 4 x 10GBase-X SFP+ 2 x QSFP+
Expansion Slots 1 (total) / 1 (free) x expansion slot
Installed Modules Qty (Max) 0 (installed) / 1 (max)
Power
Power Device Internal power supply – hot-plug
Installed Qty 1 (installed) / 2 (max)
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Power Provided 350 Watt
Voltage Required AC 120/230 V (50/60 Hz)
Miscellaneous
Compliant Standards TUV GS, CISPR 22 Class A, cUL, EN55024, EN55022 Class A, EMC, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, NEBS, ISO 7779, GR-1089-CORE, VCCI Class A, EN 60950-1:2006, CAN/CSA-C22.2 No. 60950-1, EN 300386
Dimensions & Weight
Width 17.4 in
Depth 16.4 in
Height 1.7 in
Weight 16.09 lbs
Manufacturer Warranty
Service & Support Limited warranty – lifetime
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 113 °F
Humidity Range Operating 10 – 85% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
Humidity Range Storage 0 – 95% (non-condensing)
General
Authentication Method RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Capacity Virtual interfaces (VLANs): 4093 ¦ VLAN Spanning Tree Protocol instances: 510 ¦ Multiple Spanning Tree Protocol instances: 64 ¦ ARP entries: 64000 ¦ IPv4 routes: 32000 ¦ Maximum of neighboring networks: 20000 ¦ IPv6 routes: 18000
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3az, IEEE 802.3ba, ITU-T G.8032
Device Type Switch – 32 ports – L3 – managed – stackable
Enclosure Type Rack-mountable 1U
Encryption Algorithm MD5, TLS, PEAP, TTLS
Features Flow control, BOOTP support, RARP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, DiffServ support, store and forward, IPv6 support, High Availability, ASIC VPN, SNTP support, DDos attack prevention, Weighted Random Early Detection (WRED), sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, DHCP proxy, Dynamic ARP Inspection (DAI), temperature sensor, Redundant trunk group (RTG), Time Domain Reflectometry (TDR), Virtual Chassis technology, Graceful Route Engine Switchover (GRES), front to back airflow, Per-VLAN Spanning Tree Plus (PVST+), IPv4 support, Deficit Weighted Round Robin (DWRR), hot swappable dual fans, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Virtual Routing and Forwarding (VRF), Neighbor Discovery Protocol (NDP), VLAN Spanning Tree Protocol (VSTP), NTP time synchronization, redundant hot swappable fans, Class of Service (CoS), Strict Priority (SP), tagged VLAN, Captive Portal, Multicast Source Discovery Protocol (MSDP)
Flash Memory 4 GB
Jumbo Frame Support 9216 bytes
MAC Address Table Size 64K entries
Max Units In A Stack 10
Performance Switching capacity: 464 Gbps ¦ Throughput: 345 Mpps
Ports 32 x Gigabit SFP + 4 x 10 Gigabit SFP+ + 2 x 40 Gigabit QSFP+
Processor 1 PowerPC: 1.5 GHz
RAM 4 GB
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS, SSH, SSH-2, CLI
Routing Protocol OSPF, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, PIM-SM, PIM-DM, IGMPv3, OSPFv3, PIM-SSM, static IPv4 routing, static IPv6 routing, RIPng, MPLS, Bidirectional Forwarding Detection (BFD), VRRPv3, CIDR
Status Indicators LCD display
Subtype Gigabit Ethernet
Dimensions & Weight
Depth 16.4 in
Height 1.7 in
Weight 16.09 lbs
Width 17.4 in
Environmental Parameters
Humidity Range Operating 10 – 85% (non-condensing)
Humidity Range Storage 0 – 95% (non-condensing)
Max Operating Temperature 113 °F
Max Storage Temperature 158 °F
Min Operating Temperature 32 °F
Min Storage Temperature -40 °F
Expansion / Connectivity
Expansion Slots 1 (total) / 1 (free) x expansion slot
Installed Modules Qty (Max) 0 (installed) / 1 (max)
Interfaces 32 x 1000Base-X SFP ¦ 4 x 10GBase-X SFP+ ¦ 2 x QSFP+
Manufacturer Warranty
Service & Support Limited warranty – lifetime
Miscellaneous
Compliant Standards TUV GS, CISPR 22 Class A, cUL, EN55024, EN55022 Class A, EMC, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, NEBS, ISO 7779, CAN/CSA C22.2 No. 60950-1, GR-1089-CORE, VCCI Class A, EN 60950-1:2006, EN 300386
Power
Installed Qty 1 (installed) / 2 (max)
Power Device Internal power supply – hot-plug
Power Provided 350 Watt
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Voltage Required AC 120/230 V (50/60 Hz)
