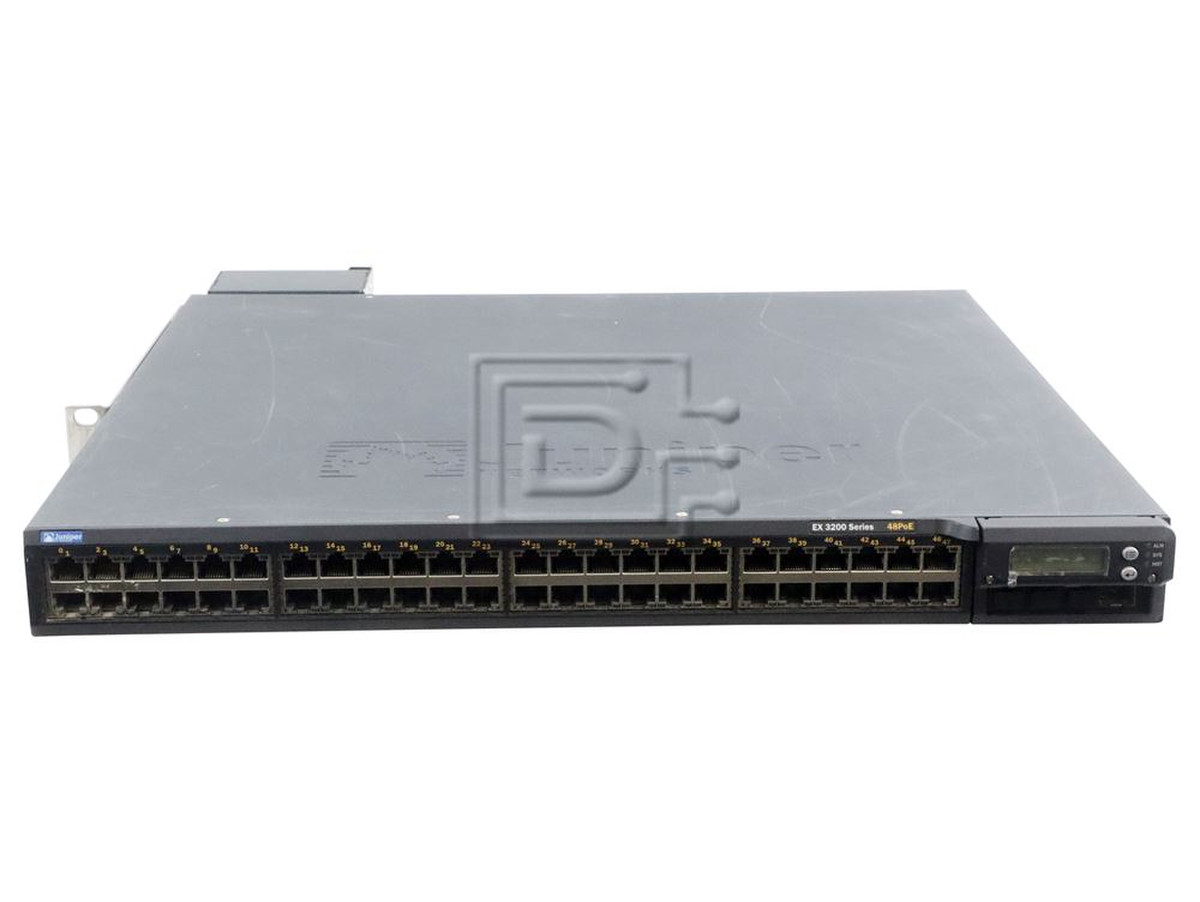

Juniper EX3200-48P 10/100/1000BASE-T 48-Port POE 1U Rackmount Switc

Add to Wishlist

Interface Types: Ethernet RJ45, SFP

Electrical Interface: Ethernet Gigabit – 1Gbps

Bays/Ports/Slots: 48

U Height: 1U

Wattage/VA: 930W

Voltage: 110-240V Multi

Color: Blue

AED1,399.00

Add to Wishlist

Juniper EX3200-48P 10/100/1000BASE-T 48-port POE 1U Rackmount Layer 3 Ethernet Switch – Refurbished Juniper EX3200-48P 10/100/1000BASE-T 48-port POE 1U Rackmount Layer 3 Ethernet Switch – Refurbished

Product Description:
The EX3200 line of fixed-configuration switches from Juniper Networks® offer a high-performance standalone solution for access-layer deployments in branch and remote offices as well as campus networks. Featuring complete Layer 2 and Layer 3 switching capabilities, the EX3200 satisfies the wiring closet connectivity requirements of today’s high-performance businesses. Four platform configurations are available offering 24 and 48 10/100/1000BASE-T ports with either full or partial Power over Ethernet (PoE). The base 24- and 48-port EX3200 switches deliver up to 18.6 watts of Class 3 PoE on the first eight ports for supporting networked devices such as telephones, video cameras and wireless LAN (WLAN) access points in converged networks. The EX3200 switches with full PoE deliver up to 18.6 watts on all 24 or 48 ports to support high-density IP telephony and other converged network environments. The EX3200 also supports optional four-port Gigabit Ethernet (GbE) and two-port 10 GbE uplink modules with pluggable optics to provide high-speed connectivity to aggregation layer switches or other upstream devices. A field-replaceable power supply and fan tray minimize mean time to repair (MTTR) for the EX3200, ensuring maximum availability.

Standalone Solution Offering Configuration Flexibility and Field Serviceability
• Optional GbE and 10 GbE uplinks reduce capital costs for remote office deployments
• Field-replaceable power supply and fan tray lower MTTR and increase serviceability
• Single release train for Juniper Networks Junos® operating system ensures consistent control plane feature implementation • Modular Junos OS prevents a switch reboot if a single protocol feature fails
• LCD panel provides a simplified interface for device bring-up, recovery and health checking without requiring a console
• Single management interface

SKU: EX3200-48P Category:

Physical Specifications
• Uplink module options:
– 4-port GbE module with pluggable SFP optics
– 2-port 10 GbE module with pluggable XFP optics
– Dual-mode 2-port 10 GbE SFP+ / 4-port GbE SFP module with pluggable SFP+/SFP optics
Power Options
• AC power supplies: Autosensing 100-120 V / 200-240 V; AC 320 W, 600 W and 930 W
• DC power supply: 190 W DC, input voltage range 36 V – 72 V, dual input feed • Field replaceable
Dimensions (W x H x D)
• 17.41 x 1.72 x 16.43 in (44.21 x 4.32 x 41.73 cm) 1 Desktop installation width noted above, rack-mount width is 17.5 in (44.5 cm)
2 Height: 1 RU
3 Depth with 320 W AC PSU and 190 W DC PSU noted above, 18.8 in (47.8 cm) with 600/930 W AC PSU
System Weight
• EX3200-48P with 930 W AC PSU: 16.8 lb (7.6 kg)
Environmental Ranges
• Operating temperature: 32° to 113° F (0° to 45° C)
• Storage temperature: -40° to 158° F (-40° to 70° C)
• Operating altitude: up to 10,000 ft (3,048 m)
• Non-operating altitude: up to 16,000 ft (4,877 m)
• Relative humidity operating: 10% to 85% (non-condensing)
• Relative humidity non-operating: 0% to 95% (non-condensing) Cooling
• Field-replaceable fan tray
• Airflow: 23.5 cfm
Hardware Specifications
• Switching Engine Model: Store and forward
• DRAM – 512 MB
• Flash – 1 GB
• CPU – 600 MHz PowerPC CPU
• GbE port density per system – 48P/48T: 48 (48 host ports or 44 host ports + four-port GbE uplink module)
• 10 GbE port density per system (all models): 2 (XFP or SFP+ uplink module)
Optics
• 100 Mbps optic/connector type: LC SFP fiber supporting 100BASEFX SFP (multimode), LX (single-mode) and BX (single-strand)
• 10/100/1000BASE-T connector type: RJ-45
• GbE SFP optic/connector type: RJ-45 or LC SFP fiber supporting 1000BASE-T SFP, SX (multimode), LX (single-mode) or LH/ZX (single-mode)
• 10 GbE XFP optic/connector type: 10GE XFP LC connector, SR (multimode), LR (single-mode), ER (single-mode) or ZR (single-mode) • 10 GbE SFP+ optic/connector type: 10GE SFP+ LC connector, SR (multimode), USR (multimode), LR (single-mode), ER (singlemode), LRM (multimode) and DAC (direct-attach copper)
Physical Layer
• Physical port redundancy: Redundant trunk group (RTG)
• Time Domain Reflectometry (TDR) for detecting cable breaks and shorts
• Auto MDI/MDIX support
• Port speed downshift/setting max advertised speed on 10/100/1000BASE-T ports
Packet Switching Capacities (Maximum with 64 Byte Packets)
• 48P/48T: 136 Gbps Layer 2/Layer 3 Throughput (Mpps) (Maximum with 64 Byte Packets)
• 48P/48T: 101 Mpps (wire speed)



ROHS Compliant
