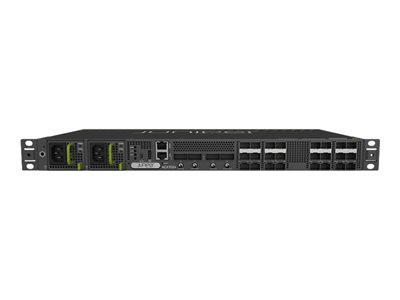

Juniper Networks ACX Series 7024 – router
Tech overview
AED100,599.00
Cell sites in mobile networks must evolve to deliver high-end access performance. The ACX7000 range of Juniper’s ACX7000 family of durable routers delivers low-latency connectivity, maximum capacity and reliability for optimal 5G communications.
The ACX7024, part of Juniper’s ACX7000 family, is a ruggedized platform offering 360 Gbit/s throughput in a 1U industrial form factor (24 cm deep). It is equipped with 24 multi-rate 1/10/25 GbE ports and four 100 GbE ports to ensure the scalability of Metro Cloud services.
The ACX7024 is MEF 3.0 certified and ideal for metro access applications based on passive optical networks (PON) and other technologies. Optimized by Junos OS Evolved and Juniper Paragon Automation, it offers advanced features such as Segment Routing (SR), SRv6, MPLS, EVPN-VXLAN, advanced programmability, network slicing and telemetry.
| Specifications |
|---|
| General |
| Device Type | Router |
| Enclosure Type | Front to back airflow – 1U |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet |
| Performance | ASIC throughput: 360 Gbps |
| Network / Transport Protocol | L2TP |
| Routing Protocol | RIP, IS-IS, BGP, VRRP, OSPFv2, OSPFv3, static IPv6 routing, ECMP, RIPng, MPLS, URPF, RSVP |
| Remote Management Protocol | NETCONF, IPv4, IPv6, YANG |
| Features | Quality of Service (QoS), Jumbo Frames support, 6 fans, Virtual Private LAN Service (VPLS), Virtual Extensible LAN (VXLAN), Label Distribution Protocol (LDP), Ethernet Virtual Private Network (EVPN), Authentication, Authorization and Accounting (AAA), Connectivity Fault Management (CFM), Layer 3 VPN (L3VPN) support, Layer 2 VPN (L2VPN) support, Zero-touch provisioning (ZTP), secure boot, Integrated Routing and Bridging (IRB), OpenConfig support, LDP tunneling (LDP over RSVP), transparent clock, ACL support, Static Media Access Control (MAC), layer 3 ingress and egress ACL, basic segment routing, Path Computation Element Protocol (PCEP), link fault management (LFM), Secure Shell protocol |
| Compliant Standards | IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1ad, IEEE 1588v2, ITU-T G.8262.1, CISPR 22 Class A, EMC, BSMI CNS 13438, EN 60825-1, FCC Part 15 B Class A, EN 50121-4, GR-1089-CORE, GR-63-CORE, EN 300 386 V1.6.1, IEC 60950-1:2005, IEC 61850-3, CISPR 24:2010, EN 55024:2010, EN 55022:2010 Class A, IEEE 1613, KN32, SR-3580 NEBS Level 3, EN 55032:2015 Class A, CISPR 32:2015 Class A, AS/NZS CISPR32:2015 Class A, VCCI-CISPR 32:2016, EN 300 386 V2.1.1, IEC 62368-1: 2014 Second Edition, EN/ETSI 300 019-2-1 v2.1.2 – Class 1.2, EN/ETSI 300 019-2-2 v2.1.2 – Class 2.3, EN 50125-3, CAN/CSA-C22.2 No. 62368-1-14, UL 60950-1:2007 R10.14, NCC C6357, TCVN 7317:2003, CISPR 35: 2016, CAN/CSA-C22.2 No. 60950-1-07, ETSI ES 203 136 V.1.1.1, IEC 61000-6-5, ICES 003, IEC 62368-1:2018 Third Edition, UL/CSA 62368-1:2019 Third Edition, TEC/SD/DD/EMC/221/05/OCT-16, ETSI 300 019 -2-3 Class 3.2, GR 3108 Class 2, ECR 3.0.1 |
| Built-in Devices | GNSS receiver |
| Expansion / Connectivity |
| Interfaces | 24 x 1Gb Ethernet / 10Gb Ethernet / 25Gb Ethernet – SFP28 ¦ 4 x 40Gb Ethernet / 100Gb Ethernet – QSFP28 ¦ Synchronization: 1 x RJ-45 – time of day (ToD) ¦ Synchronization: 1 x input / output ¦ Synchronization: 1 x USB – GNSS antenna |
| Power |
| Power Device | Internal power supply |
| Voltage Required | DC 48 – 60 V |
| Power Consumption Operational | 97 Watt |
| Software / System Requirements |
| OS Provided | Junos Evolved |
| Dimensions & Weight |
| Width | 19 in |
| Depth | 9.6 in |
| Height | 1.7 in |
| Weight | 12.48 lbs |
| Environmental Parameters |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 149 °F |
| Humidity Range Operating | 5 – 90% RH (non-condensing) |
