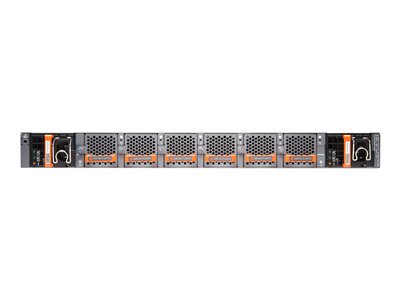

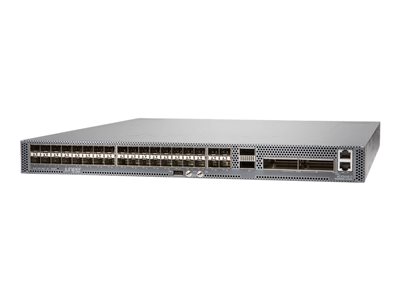

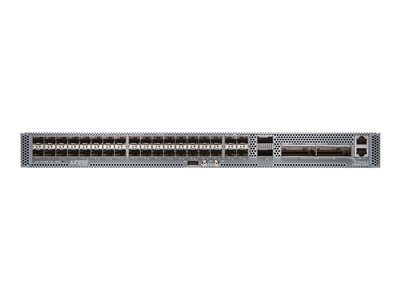

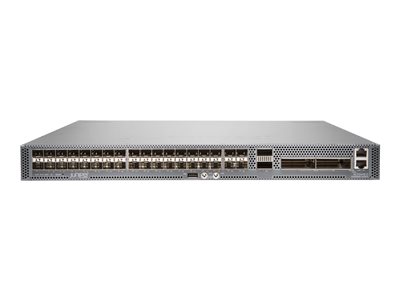

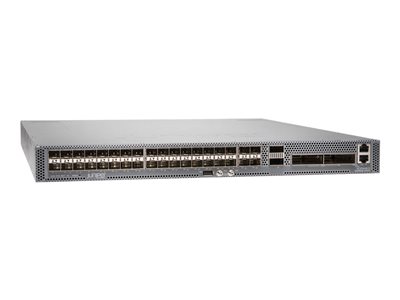

Juniper Networks ACX Series Universal Metro Router ACX5448-D-AC-AFO – router – rack-mountable
Tech overview
Juniper Networks ACX Series Universal Metro Router ACX5448-D-AC-AFO – Router – front to back airflow – rack-mountable
AED245,099.00
The ACX5448 offers 48 1GbE/10GbE aggregation ports, four high capacity 40GbE/100GbE uplink ports, and full Metro Ethernet and IP/MPLS VPN services in a space- and cost-optimized platform, smoothing the transition from 10GbE to 100GbE for service providers preparing for the emerging 5G rollout
| Specifications | |
|---|---|
| General | |
| Device Type | Router |
| Enclosure Type | Front to back airflow rack-mountable – 1U |
| Connectivity Technology | Wired |
| Performance | Throughput: 800 Gbps |
| Network / Transport Protocol | RSVP, IPv4, IPv6 |
| Routing Protocol | OSPF, IS-IS, BGP, IGMP, ECMP, MPLS, Two-Way Active Measurement Protocol (TWAMP) |
| Remote Management Protocol | SNMP 1, SNMP 2, SNMP 3, CLI, NETCONF, OAM, YANG |
| Features | IGMP snooping, Rapid Spanning Tree Protocol (RSTP) support, Bidirectional Forwarding Detection (BFD), LLDP support, Link Aggregation Control Protocol (LACP), VLAN Spanning Tree Protocol (VSTP), Class of Service (CoS), redundant fans, DiffServ Code Point (DSCP) support, Ethernet Ring Protection Switching (ERPS), Virtual Private LAN Service (VPLS), Bridge protocol data unit (BPDU), Label Distribution Protocol (LDP), Ethernet Virtual Private Network (EVPN), Fast Reroute (FRR), Ethernet Ring Protection Switching (ERPS) v2, Connectivity Fault Management (CFM), Hierarchical Quality of Service (HQoS), Layer 3 VPN (L3VPN) support, Layer 2 VPN (L2VPN) support, Protocol Independent Multicast (PIM), BGP Labeled Unicast (BGP-LU) |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1ad, ITU-T Y.1731, CISPR 24, EN55024, EN 61000-4-6, EN 61000-4-11, UL 60950-1, EN 60950-1, BSMI CNS 13438, FCC Part 15 A, EN 60825-1, ETS 300 753, ICES-003 issue 4 Class B, GR-1089-CORE, VCCI Class A, GR-63-CORE, KN22 Class A, EN 300 386 V1.6.1, AS/NZS CISPR 22 Class B, ICES-003 issue 4, CISPR 32, EN 55032:2012 Class A, SR-3580 NEBS Level 3, CAN/CSA-C22.2 No. 60950-1, AS/NZS CISPR22 Class A, EN 55032:2012 Class B, ETSI EN 300 019-2-1, ETSI EN 300 019-2-2, ETSI EN 300 019-2-3, NCC C6357, IEC 60950-1 (CB Certificate) |
| Expansion / Connectivity | |
| Interfaces | LAN: 36 x SFP/SFP+ ¦ 2 x CFP2 ¦ 2 x QSFP28 |
| Power | |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Voltage Required | AC 100/230 V (50/60 Hz) |
| Power Consumption Operational | 525 Watt |
| Dimensions & Weight | |
| Width | 17.3 in |
| Depth | 21.8 in |
| Height | 1.7 in |
| Weight | 22.99 lbs |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 – 90% (non-condensing) |
