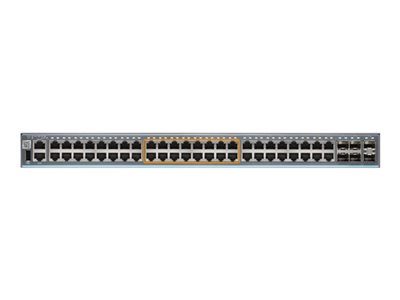

Juniper Networks EX Series EX2300-48MP – switch – 48 ports – managed – rack-mountable
Juniper Networks EX Series EX2300-48MP – Switch – L3 – managed – 32 x 10/100/1000 (PoE+) + 6 x Gigabit SFP / 10 Gigabit SFP+ + 16 x 100/1000/2500 (PoE+) – side to side airflow – desktop, rack-mountable – PoE+ (740 W)
AED23,999.00
The EX2300 Ethernet switch delivers a compact, high-density, cost-effective solution for small network environments where space and power are at a premium. With a small footprint, the EX2300 is perfect for access-layer deployments in micro branches, retail and workgroup environments, and converged network access in larger networks.
| Device Type | Switch – 48 ports – L3 – managed |
| Enclosure Type | Side to side airflow desktop, rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 32 x 10/100/1000 (PoE+)<br>6 x Gigabit SFP / 10 Gigabit SFP+<br>16 x 100/1000/2500 (PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 740 W |
| Performance | Switching capacity: 176 Gbps<br>Throughput: 130 Mbps<br>Backplane speed: 80 Gbps |
| Capacity | QoS hardware queues per port: 8<br>Maximum number of concurrent sessions: 4<br>ARP entries: 1500<br>IPv4 route prefixes: 512<br>Host IPv4 routes: 4096<br>IPv4 routes (Multicast): 2048<br>Layer 3 multicast groups: 2048<br>IPv6 neighbor table entries: 1500<br>IPv6 route prefixes: 512<br>Host IPv6 routes: 2048<br>IPv6 routes (Multicast): 1024<br>Firewall egress filters: 256<br>Firewall ingress filters: 256<br>Access Control Entries (ACEs) per ACL: 2000<br>LAG groups: 128<br>Maximum member ports per LAG: 8<br>IGMP snooping entries: 2000<br>VSTP instances: 253<br>VLAN groups: 4093 |
| MAC Address Table Size | 16000 entries |
| Jumbo Frame Support | Yes |
| Routing Protocol | OSPF, RIP-1, RIP-2, IGMPv2, IGMP, OSPFv2, PIM-SM, static IP routing, PIM-DM, IGMPv3, PIM-SSM, MLDv2, MLD, CIDR |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI |
| Encryption Algorithm | MD5, TLS, PEAP, TTLS |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) |
| Features | Flow control, BOOTP support, RARP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), DoS attack prevention, port mirroring, store and forward, High Availability, SNTP support, WRED, sFlow, STP support, RSTP support, VLAN Stacking, MSTP support, DHCP snooping, ACL support, QoS, IP Precedence, RADIUS support, DHCP server, MLD snooping, DHCP proxy, DAI, temperature sensor, RTG, PVST+, Cable Diagnostics Function, LACP support, DHCP relay, LACP, port based access control, port configuration, DHCP client, Energy Efficient Ethernet, MIB, MVRP, NDP, VSTP, NTP time synchronization, static routing, CoS, SP, tagged VLAN, Captive Portal, 802.1x authentication, EtherIP, VoIP support, DSCP support, SDWRR, UFD, system log, WTD, ICMP, ICMP Router Discovery Protocol (IRDP), SCP, Link Aggregation, MIB II, MAC address authentication, Voice VLAN, LLDP-MED, RA guard, proxy ARP, DHCP Helper, DSCP Trust, DSCP Marking, traffic monitoring, Telnet server, Telnet client |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.1BR<br>Compliant Standards (Miscellaneous): TUV GS, CISPR 22 Class A, cUL, EN55024, ICES-003 Class A, UL 60950-1 Second Edition, RoHS, EN 60825-1, ISO 7779, EN 60950-1 Second Edition, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CAN/CSA C22.2 No. 60950-1 Second Edition |
