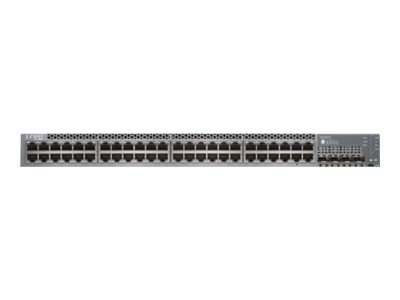

Juniper Networks EX Series EX3400-48P – switch – 48 ports – managed – rack-mountable

Add to Wishlist
Juniper Networks EX Series EX3400-48P – Switch – L3 – managed – 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP / 10 Gigabit SFP+ + 2 x 40 Gigabit QSFP+ – front to back airflow – rack-mountable – PoE+ (740 W)

21,399.00 د.إ

Add to Wishlist

EX3400 Ethernet Switches are a cost-effective solution for highly demanding converged data, voice, and video enterprise access networks. The compact, fixed-configuration 1U devices offer levels of performance and management. This model offers 24 10/100/1000BASE-T ports, the EX3400 switch also supports IEEE 802.3af Power over Ethernet for powering networked telephones, video cameras, wireless LAN access points, and other IP devices. Four front-panel dual-mode (GbE/10GbE) SFP/SFP+ uplink ports and two 40GbE QSFP+ ports are also available for connecting the switches to upstream devices. The EX3400 supports Juniper’s unique Virtual Chassis technology for interconnecting up to 10 switches that can be managed as a single device. The EX3400 can also be configured as a satellite device in a Junos Fusion Enterprise deployment, which aggregates large numbers of access switches into a logical management platform.

SKU: EX3400-48P Category: Tag:
Device Type Switch – 48 ports – L3 – managed – stackable
Enclosure Type Front to back airflow rack-mountable 1U
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP / 10 Gigabit SFP+ + 2 x 40 Gigabit QSFP+
Power Over Ethernet (PoE) PoE+
PoE Budget 740 W
Performance Switching capacity (64-byte packet size): 336 Gbps ¦ Throughput: 250 Mpps
Capacity Virtual interfaces (VLANs): 4093 ¦ Multiple Spanning Tree Protocol instances: 64 ¦ VLAN Spanning Tree Protocol instances: 510 ¦ ARP entries: 8000 ¦ IPv4 hosts: 36000 ¦ IPv4 routes (Multicast): 4000 ¦ Maximum of neighboring networks: 8000 ¦ IPv6 hosts: 18000 ¦ IPv6 routes (Multicast): 2000 ¦ ACL entries: 1500 ¦ LAG groups: 128 ¦ Maximum member ports per LAG: 16 ¦ QoS hardware queues per port: 12 ¦ IGMP snooping entries: 1000
MAC Address Table Size 32000 entries
Jumbo Frame Support 9216 bytes
Max Units In A Stack 10
Routing Protocol IS-IS, RIP-1, RIP-2, MSDP, static IPv4 routing, static IPv6 routing, RIPng, CIDR
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI
Encryption Algorithm MD5, TLS, PEAP, TTLS
Authentication Method RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Features BOOTP support, RARP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), DoS attack prevention, port mirroring, DiffServ support, store and forward, IPv6 support, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), IP Precedence, DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), DHCP proxy, Dynamic ARP Inspection (DAI), temperature sensor, Redundant trunk group (RTG), Virtual Chassis technology, Non-Stop Bridging (NSB), Non-Stop Routing (NSR), Graceful Route Engine Switchover (GRES), Per-VLAN Spanning Tree Plus (PVST+), Cable Diagnostics Function, DHCP relay, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Zero Touch Auto Provisioning, Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), VLAN Spanning Tree Protocol (VSTP), NTP time synchronization, Class of Service (CoS), Strict Priority (SP), tagged VLAN, Captive Portal, DiffServ Code Point (DSCP) support, MACsec support, Smoothed Deficit Weighted Round Robin (SDWRR), system log, Internet Control Message Protocol (ICMP), ICMP Router Discovery Protocol (IRDP), Management Information Base (MIB) II
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, ANSI/TIA-1057, IEEE 802.1ag, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.1BR
Processor 1: 1 GHz
RAM 2 GB
Flash Memory 2 GB
Expansion / Connectivity Interfaces: 48 x 1000Base-T RJ-45 PoE+ – 30 W ¦ 2 x 40Gbit LAN QSFP+ uplink/stacking ¦ 4 x 10Gbit LAN SFP+ uplink/stacking ¦ 1 x serial management ¦ 1 x 100Base-TX RJ-45 management
Power Power Device: Internal power supply – hot-plug ¦ Installed Qty: 1 ¦ Max Supported Qty: 2 ¦ Power Redundancy: Optional ¦ Power Redundancy Scheme: 1+1 (with optional power supply) ¦ Power Provided: 920 Watt
Voltage Required AC 120/230 V
Power Consumption Operational 120 Watt
Miscellaneous Compliant Standards: TUV GS, CISPR 22 Class A, cUL, EN55024, CB, ICES-003 Class A, UL 60950-1 Second Edition, RoHS, EN 60825-1, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300386
Dimensions & Weight Width: 17.2 in ¦ Depth: 13.8 in ¦ Height: 1.7 in
Weight 14.55 lbs
Manufacturer Warranty Service & Support: Limited warranty – lifetime
Environmental Parameters Min Operating Temperature: 32 °F ¦ Max Operating Temperature: 113 °F ¦ Humidity Range Operating: 10 – 85% (non-condensing) ¦ Min Storage Temperature: -40 °F ¦ Max Storage Temperature: 158 °F ¦ Humidity Range Storage: 0 – 95% (non-condensing)
