Juniper Networks MX-series MX10004 – Premium – router – rack-mountable – with Juniper Networks 2 x Routing Engine, 6 Switch Fabric Cards, 2 fan tray controllers

Benefits

The MX10004 is a small-footprint complement to the larger MX10000 modular chassis, with these benefits:

• Ease of deployment—The MX10004 features a compact 7-U modular chassis for sites with limited space or power.

• Modular, flexible design—The MX10004 router uses the custom silicon line cards (2.4 Tbps, 480 Gbps, and 9.6 Tbps throughput) and power supplies found in the larger MX10000 modular chassis.

• Always-on infrastructure base—The MX10004 is engineered with full hardware redundancy for power and host subsystems—Routing and Control Boards (RCBs)—allowing service providers to meet stringent service-level agreements across the core.

• Nondisruptive software upgrades—The Junos OS operating system on MX10004 supports high availability (HA) features such as graceful Routing Engine switchover (GRES) and nonstop active routing (NSR).

Chassis Description

The MX10004 router is 7-U tall. You can install up to six MX10004 routers in a standard 42-U rack with adequate cooling and power. All key MX10004 router components are field-replaceable units (FRUs). Figure 1 illustrates the key components visible from the front of the chassis, Figure 2 illustrates the components that are visible from the rear of the chassis, and Figure 3 illustrates the components that are internal to the chassis and are accessible after removing the fan trays.

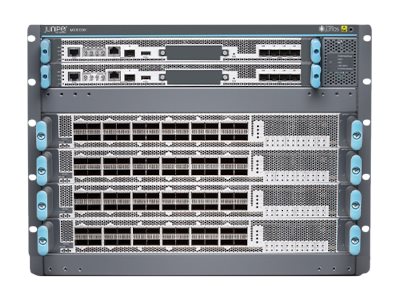

Figure 1: MX10004 Chassis Front

Figure 2: MX10004 Chassis Rear

Figure 3: MX10004 Chassis Internal Components

1 — Fan tray controllers

2 — Switch Fabric Boards (SFBs)

See MX10004 Chassis Physical Specifications.

Switch Fabric Boards

Switch Fabric Boards (SFBs) create the switch fabric for the MX10004. Each SFB has a set of connectors to mate the line cards and the Routing and Control Board (RCB) to the switch fabric. See Figure 4 for an example of the JNP10004-SF2 Switch Fabric Board.

For the MX10004 switch fabric, three SFBs provide reduced switching functionality to an MX10004 router. Six SFBs provide full throughput. You install the SFBs between the line cards and the fan trays inside the chassis. Each MX10004 SFB has four connectors. Each connector matches up with a line card slot, eliminating the need for a backplane.

You can order the MX10004 with different SFB configurations that enable you to grow your system as needed. See MX10004 Components and Configurations.

Routing and Control Board

The Routing and Control Board (RCB) contains a Routing Engine and is responsible for system management and system control in the MX10004. See MX10004 Routing and Control Board Components and Descriptions. RCBs are field-replaceable units (FRUs) that you install in the front of the chassis in the slots labeled CB0 and CB1.

The supported models of RCB for JNP10004-SF2 fabric systems are as follows:

• JNP10K-RE1, 64 gigabytes of memory

• JNP10K-RE1-LT, 64 gigabytes of memory

• JNP10K-RE1-128, 128 gigabytes of memory

These RCBs run Junos OS 22.3R1. See Figure 5.

Figure 5: The JNP10K-RE1 and JNP10K-RE1-128 Routing and Control Boards

The MX10004-BASE configuration has a single RCB. The fully redundant configurations have two RCBs. The RCB also contains Precision Time Protocol (PTP) ports and four Media Access Control Security (MACsec) capable ports. See MX10004 Components and Configurations.

Line Cards

The MX10004 has four horizontal line card slots. The line cards combine a Packet Forwarding Engine and Ethernet interfaces enclosed in a single assembly. The MX10004 line card architecture is based on a number of identical, independent Packet Forwarding Engine slices. Line cards are FRUs that you can install in the line card slots labeled 0 through 3 (top to bottom) on the front of the chassis. All line cards are hot-removable and hot-insertable.

The MX10004 supports the following line cards:

• MX10K-LC2101

• MX10K-LC480

• MX10K-LC9600

See Figure 6 for an example of an MX10004 line card.

Figure 6: The MX10K-LC9600 Line Card

Cooling System

The cooling system in an MX10004 consists of two fan trays (see Figure 7) and two fan tray controllers (see Figure 8).

The JNP10004-FAN2 fan tray contains an array of six fans and operates as a single hot-removable and hot-insertable field-replaceable unit (FRU). You install the fan trays vertically on the rear of the chassis to provide front-to-back chassis cooling. See MX10004 Cooling System.

Figure 7: Fan Tray JNP10004-FAN2

Each JNP10004-FAN2 fan tray has a corresponding fan tray controller, JNP10004-FTC2. See Figure 8.

Figure 8: Fan Tray Controller JNP10004-FTC2

Power Supplies

The MX10004 routers support AC, DC, high-voltage alternating current (HVAC), and high-voltage direct current (HVDC) through the following power supplies:

• JNP10K-PWR-AC3

• JNP10K-PWR-AC2

• JNP10K-PWR-DC2

Power supplies for the MX10004 are load-sharing, hot-removable, hot-insertable FRUs. The router operates with three power supplies. Each power supply has an internal fan for cooling. You can install the power supplies in any slot. See Figure 9, Figure 10, and Figure 11.

Figure 9: JNP10K-PWR-AC3 Power Supply

Figure 10: JNP10K-PWR-AC2 Power Supply

Figure 11: JNP10K-PWR-DC2 Power Supply

Table 1 provides an overview of the differences between the power supplies.

Software

The Juniper Networks MX10004 Universal Routing platform runs on the Junos OS 22.3R1 operating system.

MX10004 Configurations

Table 2 lists the hardware configurations for an MX10004 modular chassis and the components included in each configuration.
