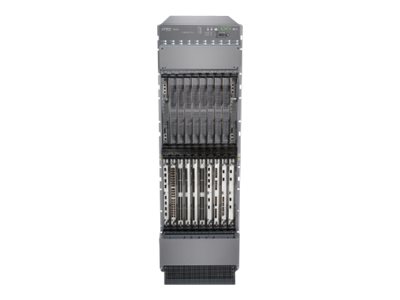

Juniper Networks MX-series MX2010 – router – rack-mountable

Add to Wishlist

Tech overview

Juniper Networks MX-series MX2010 – Router – PPP, TDM – front to back airflow – rack-mountable

AED973,299.00

Add to Wishlist

The SDN-ready MX2010 3D Universal Edge Router is a high-capacity, high-performance edge routing platform that delivers 40 Tbps of system capacity, providing very high densities.

With support for up to 16 Tbps of bidirectional throughput, the MX2010 also offers comprehensive broadband subscriber management and agile service integration that includes deep packet inspection and carrier-grade NAT (CGNAT). Additionally, the MX2010 comes equipped with sophisticated timing and virtualization capabilities that meet the stringent requirements of mobile services.

With its scale, reliability, and industry-leading feature set, the MX2010 is ideal for edge, consolidated edge/core, and core applications. It enables a wide range of business and residential services, including mobile transport and backhaul, business VPN services, next-generation broadband multiplay services, and high-volume Internet data center internetworking.

SKU: MX2010-BASE-AC Category: Tag:
Specifications
General
Device Type Router
Enclosure Type Front to back airflow rack-mountable – modular – 34U
Connectivity Technology Wired
Data Link Protocol Ethernet, PPP, TDM
Performance
Scaling Capacity 40 Tbps
Per-slot Scaling Capacity 2 Tbps
Throughput 1.88 Bpps
Switching Capacity 8.6 Tbps
Per-slot Switching Capacity 860 Gbps
Network / Transport Protocol IPSec, DHCP
Routing Protocol BGP, GRE, MPLS
Features Firewall protection, layer 3 switching, layer 2 switching, NAT support, VPN support, IPv6 support, High Availability, half duplex mode, full duplex mode, MPLS Fast Reroute (FRR), Switch Fabric Element Redundancy, Quality of Service (QoS), MPLS VPN, RADIUS support, IPv4 support, fan tray, Virtual Routing and Forwarding (VRF), redundant hot swappable fans, Multicast Border Gateway Protocol (MBGP)
Compliant Standards NEBS level 3, ETSI, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, CB, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EMC, EN 61000-4-5, EN 61000-4-11, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, FCC Part 15 A, EN 60825-1, GR-1089-CORE, VCCI Class A, GR-63-CORE, AS/NZS CISPR 22, CAN/CSA-C22.2 No. 60950-1
Expansion / Connectivity
Expansion Slots 10 (total) / 10 (free) x expansion slot
2 (total) / 1 (free) x Services and Routing Engine (SRE)
8 Switching Fabric Unit
Power
Power Device Internal power supply – hot-plug
Power Redundancy Optional
Software / System Requirements
OS Required JUNOS
Dimensions & Weight
Width 17.5 in
Depth 36.2 in
Height 59.5 in
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 5 – 90% (non-condensing)
