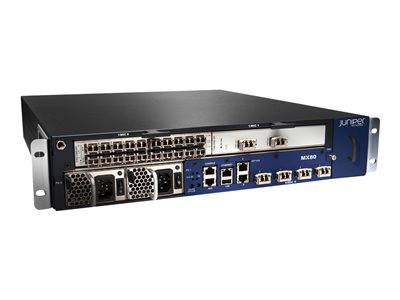

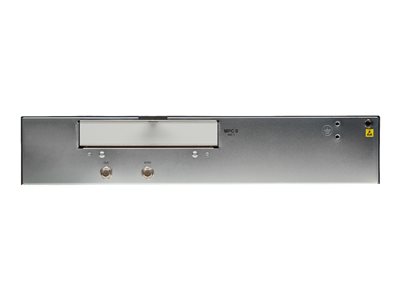

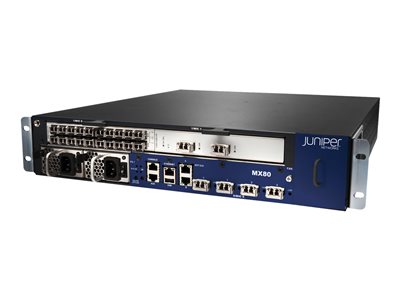

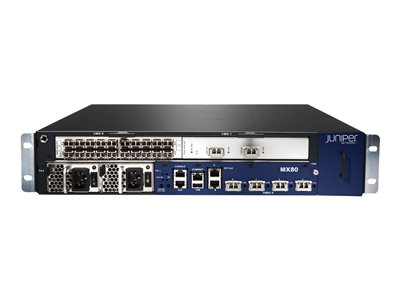

Juniper Networks MX-series MX80 – router – rack-mountable
Tech overview
AED325,599.00
The MX80 3D Universal Edge router integrates carrier Ethernet capabilities and a Modular Port Concentrator (MPC) design to create a cost-effective Ethernet service solution ideal for environments with severely limited space.
Juniper Networks MX80 3D Universal Edge router is the most compact member of the MX series product family. Only 2 RU high and equipped with front end accessible redundant power supplies and fans, this platform is perfectly suited for environments requiring full Ethernet capabilities, but facing space or power constraints. In addition to four embedded 10 Gigabit Ethernet ports, the MX80 leverages the technology used in the Modular Port Concentrators (MPCs), common across the MX series, and can accommodate multiple combinations of Modular Interface cards (MICs) for increased flexibility.
In the enterprise, the MX80 can be deployed in campus, small sites and small data center WAN connectivity; and service providers can utilize the MX80 for mobile backhaul hub site aggregation, metro ring access nodes, cable and Multitenant Unit (MTU) aggregation, distributed PE and high-end CPE.
| Specifications |
|---|
| General |
| Device Type | Router |
| Enclosure Type | Rack-mountable – modular – 2U |
| Connectivity Technology | Wired |
| Performance |
| Switching Capacity | 80 Gbps |
| Routing Protocol |
| Routing Protocol | BGP, GRE |
| Remote Management Protocol |
| Remote Management Protocol | SNMP 2, SNMP 3, HTTP |
| Features |
| Features | VPN support, MPLS support, manageable, QoS |
| Compliant Standards |
| Compliant Standards | ETSI, EN 60950, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55022 Class A, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EMC, CSA C22.2 No. 60950-00, EN 61000-4-5, UL 1950 Third Edition, EN 61000-4-11, RoHS, FCC Part 15 A, NEBS, EN 60825-1, AS/NZS 3548 Class A |
| Expansion / Connectivity |
| Interfaces | Management: 1 x console – RJ-45 ¦ Management: 1 x 10Base-T/100Base-TX – RJ-45 ¦ USB: 1 x ¦ 1 x auxiliary – RJ-45 |
| Expansion Slots | 2 (total) / 2 (free) x Modular Interface Card (MIC) ¦ 4 (total) / 4 (free) x XFP |
| Installed Modules Qty (Max) | 2 (installed) / 2 (max) |
| Power |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Installed Qty | 1 (installed) / 2 (max) |
| Voltage Required | AC 120/230 V |
| Power Consumption Operational | 376 Watt |
| Dimensions & Weight |
| Width | 17.5 in |
| Depth | 23.5 in |
| Height | 3.5 in |
| Weight | 30.2 lbs |
| Environmental Parameters |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 – 90% (non-condensing) |
