Tech overview
AED253,499.00

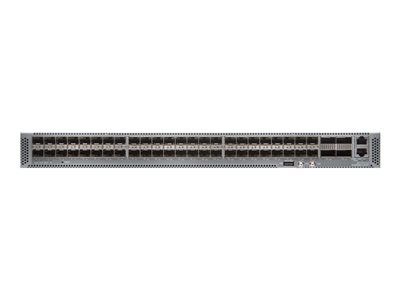

The ACX5448 Universal Metro Routers are Juniper Networks’ top-of-rack routers with deep pocket buffer solutions for metro network or aggregation environments. The ACX5448 router portfolio consists of high-performance fixed-configuration routers that add higher port densities, additional scalability, and improved latency.
| Specifications | |
|---|---|
| General | |
| Device Type | Router |
| Enclosure Type | Back to front airflow rack-mountable – 1U |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet, 100 Gigabit Ethernet |
| Performance | Throughput: 800 Gbps |
| Routing Protocol | MPLS |
| Features | MPLS support |
| Processor | 1 x Intel 1.9 GHz |
| RAM | 32 GB |
| Hard Drive | 200 GB |
| Expansion / Connectivity | |
| Interfaces | LAN: 48 x 10Gb Ethernet – SFP+ ¦ 4 x 40Gb Ethernet – QSFP28 ¦ Management: 1 x RJ-45 ¦ Console: 1 x RJ-45 ¦ USB: 1 x 4 pin USB Type A |
| Power | |
| Power Device | Internal power supply – 450 Watt |
| Voltage Required | DC -44 -72 V |
| Dimensions & Weight | |
| Width | 17.4 in |
| Depth | 20.5 in |
| Height | 1.7 in |
| Weight | 16.01 lbs |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 – 90% (non-condensing) |
