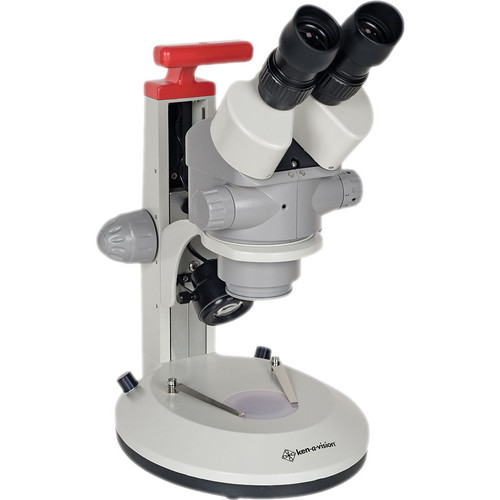

Ken-A-Vision VisionScope 2 7-45x Stereo Zoom Microscope M3702C-4

Availability:

10 in stock


3,099.00 د.إ

10 in stock

Ken-A-VisionĀ T-26001 VisionScope 2 7-45x Stereo Zoom Microscope



Product Highlights

  • Top / Bottom Adjustable LED Illumination
  • Binocular Viewing Head, 45° Inclined
  • 360° Rotating Viewing Head
  • 10x Eyepieces
  • 0.7-4.5x Objective Zoom Turret
  • 7-45x Magnification Range
  • Parfocalled Achromat Objectives
  • Frosted Glass / Reversible Stage Plates
  • Fine / Coarse Focus Control



TheĀ T-26001 VisionScope 2 7-45x StereoĀ Zoom MicroscopeĀ fromĀ Ken-a-VisionĀ is a stereoscopic zoom microscope designed for elementary and middle school students. The two eyepiece configuration is preferred by most researchers and students because of the superior depth of field and comfort compared to monocular microscopes. This model of the VisionScope 2 has a paired 10x eyepiece delivering a 7-45x continuous magnification range. The achromatic objective system is parfocalled throughout the zoom range, keeping the specimen in focus while zooming in or out.

A user-friendly design complements the range of features that make the VisionScope 2 microscope a welcome addition to labs and classrooms. The viewing head is capable of 360° rotation to help share the stereo eyepiece among colleagues and students without moving the microscope. The rack and pinion system has dual focus dials and includes tension adjustment and rack stop mechanisms that prevent damaging the specimen and objective. The adjustable interpupillary distance and and individually adjustable diopter correction also provide the VisionScope 2 series with the flexibility needed to create a customized viewing experience.

Optical System
  • 10x stereo eyepieces
  • 0.7-4.5xĀ parfocalled achromat objective system
  • 7-45xĀ magnification range
  • Lead-free moisture-resistant optics
  • Inclined viewing head with 360° rotation
  • ±0.20 diopter adjustment, 30mm interpupillary range
Focusing
  • Rack and pinionĀ focus mechanism
  • Coarse and fineĀ control focus controls
  • Tension adjustment and rack stop
  • 36cmĀ working distance
Lighting
  • Incident and transmitted LEDĀ illumination
  • Base-mounted On/Off switch
  • Rheostat adjustable brightness control
Stage
  • 2.4×2.4″Ā (6x6cm)Ā frosted glass plate and reversible contrast plate
  • Spring-loaded stageĀ clips
Construction Details
  • Integrated carry handle
  • Built-in rechargeable battery
  • Interchangeable viewing head
  • Height: 15.75″
  • Weight: 6.5Ā lb
SKU: M3702C-4 Category: Tags: ,

Ken-A-Vision T-26001 Specs

Microscope Type Stereo
Body Type Inclined (45°) binocular
Nosepiece Built-in zoom turret
Eyepiece 10.0x
Objective(s) 0.7-4.5x
Magnification 7.0 – 45.0x
Diopter Range ±0.20
Interpupillary Adjustment 30 mm range
Focuser Rack and pinion with coarse and fine focus controls
Light Source LED (top/bottom) with On/Off switch, rheostat dimmer
Specimen Stage 2.4 x 2.4″ (6 x 6 cm) frosted glass plate, black/white reversible contrast plate
Power Supply 120V AC
Dimensions 15.75 x 10 x 8.5″ (40 x 25 x 22 cm)
Weight 6.5 lb (2.95 kg)
Packaging Info
Package Weight 12.0 lb
Box Dimensions (LxWxH) 20.0 x 14.0 x 10.0″
