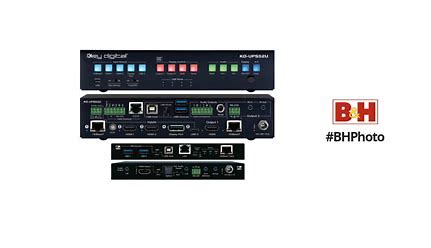

Key Digital 4K USB/Universal Presentation Switcher (1 RU)

Add to Wishlist
  • Supports up to 4096 x 2160 Resolution
  • HDBaseT, HDMI, DisplayPort & USB Inputs
  • HDBaseT & HDMI Outputs
  • USB Type-C, RS-232 & IR Ports
  • PTZ USB Camera Integration
  • Audio De-Embedding
  • Up to 328′ Signal Extension
  • Rack-Mounting Ears Included

AED10,399.00

Add to Wishlist

The 1 RU 4K USB/Universal Presentation Switcher from Key Digital is designed to be used with the KD-X100MRX receiver (available separately) and supports video at resolutions up to 4096 x 2160 at 60 Hz. It is designed to be used for professional audio video installations in conference rooms, board rooms, classrooms, lecture halls, and auditoriums. This switcher has five inputs including an HDBaseT port, two HDMI ports, a DisplayPort, and a USB Type-C port. It also features a USB host port and two device ports, two audio outputs, an HDBaseT output, an HDMI output, an IR input and output, and RS-232 ports. IP, RS-232, IR, auto switching, and trigger control are supported. Rack-mounting ears are included.

USB host and device ports create connectivity hub for professional USB cameras and microphones, audio DSP, keyboard, mouse, or touchscreen display with connected computer
PTZ USB camera integration with KD-CAMUSB (available separately) for full PTZ control via KD-App
Supports up to 4096 x 2160 or 3840 x 2160 resolution at 24, 25, 30, and 60 Hz at 4:4:4 (signals up to 18 Gb/s bandwidth)
Automatic selection of newly detected source and switching from newly disconnected source when enabled
CEC Manager allows power, volume, and muting controls of the connected display/projector without any additional control wiring
Audio of the selected source is de-embedded at the unit’s analog L/R balanced/unbalanced and PCM digital audio connectors
Command forward to KD-AMP220 (available separately) for an all-in-one, user-friendly control UI of video switching, audio, and speech enforcement
Fully licensed and compatible with HDCP 2.2
HDR10 and Dolby Vision provides more life-like images through a greater range of illuminance levels
Signal extension up to 328′ using 4K UHD resolution and up to 492′ using 1080p resolution
Up to 4K UHD resolution at 30 Hz, 4:4:4/12-bit or 60 Hz, 4:4:4/8-bit deep color support
Full buffer system manages TMDS re-clocking/signal re-generation, HDCP authentication to source and display, EDID control handshake, and hot-plug detection voltage
EDID management internal library with 15 internal EDID handshakes including 4K with HDR in addition to native EDID data copied from the receiver (available separately) display/device
RS-232 bidirectional control to and from transmitter and receiver/presentation switch unit
Unit control mode provides TCP/IP and RS-232 control and status of/from transmitter unit
Support for Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, and DTS-HD Master Audio lossless compressed digital audio
Fully controllable by all TCP/IP and RS-232 supported control systems via open API Compass Control Pro, AMX, Crestron, KNX, RTI, Savant, URC, and Leviton
Network scan and detect populates pre-built GUI including connected display/projector controls via CEC Manager
SKU: KD-UPS52U Category: Tag:
Processing
Switching Type
Pushbutton
Processing Resolution
DCI 4K at 24/25/30/60
Color Processing
8-Bit 4:4:4
12-Bit 4:4:4
Input
Video Inputs
1x RJ45 (HDBaseT)
2x HDMI
1x DisplayPort
Input Video Format
HDMI / RJ45 (8/12-Bit 4:4:4)
DCI 4K at 24/25/30/60 fps
UHD 4K 24/25/30/60 fps
Output
Video Outputs
1x RJ45 (HDBaseT)
1x HDMI
Output Video Format
HDMI / RJ45 (8/12-Bit 4:4:4)
DCI 4K at 24/25/30/60 fps
UHD 4K 24/25/30/60 fps
Audio Outputs
1x Block 6-Pin Analog
1x RCA S/PDIF Female
Connectivity
Other I/O
1x USB-C Input
1x 1/8″ / 3.5 mm IR Input
1x 1/8″ / 3.5 mm IR Output
1x Block 3-Pin RS-232
1x Block 3-Pin IR, RS-232
1x Block 6-Pin IR, RS-232, Control
1x RJ45 Control
1x USB-B
2x USB-A
HDCP Support
Yes, Version 2.2
Hardware
Wi-Fi
No
Bluetooth
No
Power
Power I/O
1x Barrel (48 VDC at 1 A) Input
General
Certifications
CE, EAC, RoHS, WEEE
Rack Form Factor
0.5 RU
Dimensions
8.26 x 7.2 x 1.73″ / 20.98 x 18.29 x 4.39 cm
Weight
2 lb / 0.91 kg
