Key Digital KD-X444S

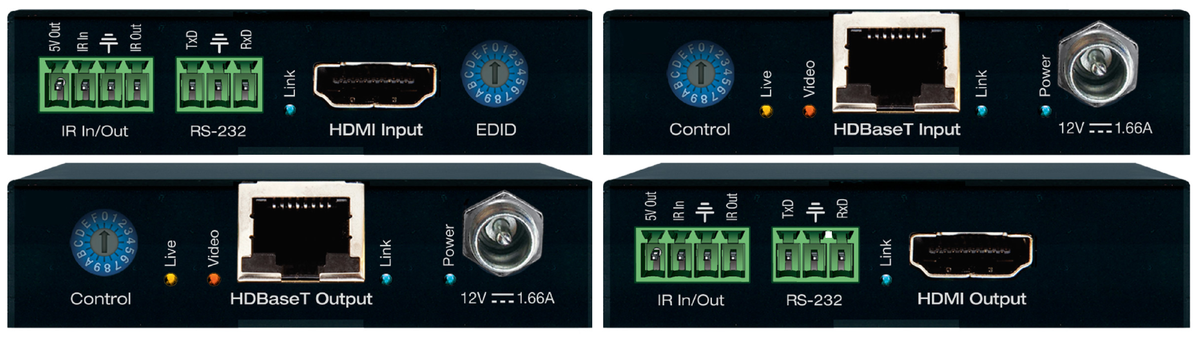

Key Digital offers the KD-X444S HDCP2.2-compliant HDBaseT transmitter and receiver kit. This team of devices support 4K/UHD digital video signal extension, ensuring equalization and amplification. Using the KD-X444S, you can extend 4K signals up to 130 feet using Cat5e/6 cable. This kit also extends 1080p signals 230 feet. These devices are controlled via IR and RS-232. The IR sensor powers using +5V on IR input ports collects line-of-sight IR from remote without external IR connecting block.

This transmitter/receiver kit comes with a 12V/20W DC power supply, 4 mounting brackets, an IR emitter and sensor, 3-pin and 4-pin Phoenix connectors.

Key features include the following:

• Flexible Power over HDBaseT: Only one power connection needed
• 10G Pass-thru: Mode enables uncompressed 10.2Gbps signal extension
• HDR10 (High Dynamic Range): Vivid images via a wide range of luminance levels
• HDCP 2.2: Compliancy up to HDCP 2.2 and backward compliant
• Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit
• EDID Control: Internal library with 15 EDID handshakes including 4K with HDR in addition to native EDID data from Output/Display device connected to Rx
• Hot Plug Detection Control: Decide on using signal voltage forced to connected input and output devices
• Full Buffer System: Manages TMDS re-clocking/signal re-generation, HDCP authentication with source and display
• Up/Down IR: Two channels of IR enable control to/from devices or control systems connected to Tx and Rx units
• RS-232: Bi-Directional control to/from Tx and Rx unit on Phoenix connector
• Lossless Compressed Digital Audio: Support for Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, and DTS-HD Master Audio
• CEC Pass-thru: For inter-device control between input and output HDMI channel
