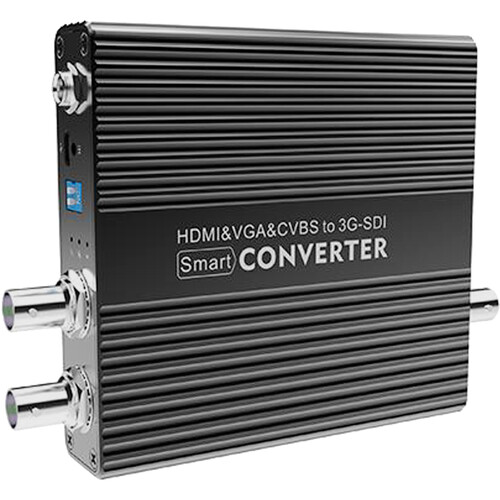

Kiloview Broadcast-Grade HDMI to SDI Video Converter

Add to Wishlist
Key Features
  • Composite, Component, VGA, and HDMI 1.4
  • Up to 1080p60 HDMI Input
  • Simultaneous Dual 3G/HD/SD-SDI Outputs
  • Up to 328′ SDI Cable Transmission
  • Power Adapter Included
  • LED Power Indicator

AED1,299.00

Add to Wishlist

An easy-to-use, dedicated converter that supports up to 1080p60 resolution, the Kiloview Broadcast-Grade HDMI to SDI Video Converter is suitable for use in a myriad of applications, from multimedia to remote learning and video conferencing in a professional environment. It features HDMI, VGA, component, and composite inputs and two 3G/HD/SD-SDI outputs.

The converter uses the embedded HDMI audio or analog audio, via the 3.5mm audio input, and embed either into the output SDI signal. You can configure the unit via the included remote control or a PC to adjust color, resolution, and output to match your needs, and the system supports HDCP 1.1 for content-protected material. The converter comes with a power adapter that supports 110 to 220 VAC and outputs 12 VDC at 1A.

Functions
The Kiloview KV-CV190 is a broadcast-level multifunctional video converter, which can convert HDMI, VGA, and AV(CVBS) to SDI-based coax signal with functions of frame conversion, resolution conversion, image scale up/down, color conditioning, image enhancement, and adjustment.
Versatility
  • HDMI, VGA, and AV (CVBS) signals can be manually specified or automatically identified
  • Supports HDMI audio or un-embedded / analog audio input, embedding it into the SDI signal
  • SD/HD/3G SDI output supported; supports 2 channels SDI output simultaneously
  • Integrated with enhanced SDI line driver, it can ensure SD SDI transmission distance up to 1312′, HD SDI transmission distance 656′, 3G SDI transmission distance 393′, under Belden 1694A or same cable-quality conditions
  • Advanced settings or firmware upgrading is available by connecting PC via USB
Adjustments and Conversions
The converter features professional color adjustment, 3D noise reduction, interlace / progressive video conversion, video scaling up/down conversion, and frame rate conversion.
SKU: KVW-CV-190 Category: Tag:
Inputs / Outputs
Video Inputs
1x HDMI (1.4) Female
1x DE-9/DB-9 (Component/VGA) Female
1x BNC (Composite) Female
Audio Inputs
1x 1/8″ / 3.5 mm TRS Stereo Analog Female
Video Outputs
2x BNC (3G-SDI) Female
Audio Outputs
No
Expansion Slots
No
Format Support
Input Video Format
HDMI
1080p at 24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
576p
480p
480i / 525 lines
576i / 625 lines
VGA
1080p
Component / VGA
1080p at 25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
Composite
480i / 525 lines
576i / 625 lines
Input Audio Format
Analog
Embedded Audio
SDI
Standards
HDCP Support
Yes, Version 1.1
HDR Support
Not Specified by Manufacturer
Power
Power I/O
1x Barrel (12 VDC at 1 A) Input
Power Consumption
Device: 4 W
Environmental
Operating Temperature
12 to 92°F / -20 to 60°C
General
Dimensions
4.7 x 3.9 x 1″ / 120 x 100 x 26 mm
Weight
11.1 oz / 315 g
Packaging Info
Package Weight
1.395 lb
Box Dimensions (LxWxH)
7.8 x 6.6 x 3.3″
